Replacement Kit for 92-5/8 inch Roto Roller or Tongue Version Multipoint Lock
REPLACES Roto brand hardware, Roller or Tongue version.
For 93 inch tall, active door with multi-point lock.
This Stainless Steel Replacement Kit includes: Locks, Strikes and Screws
One (1) Tongue Version Lock Body / Gear for active doors.
Two (2) Tongue Strike Plates
One (1) Latch and Deadbolt Strike Plate, curved lip, for standard 1-3/4 inch (45mm) thick door.
(23) stainless steel screws.
Fits doors from 88-3/4" to 106-5/16" (2255-2700mm)

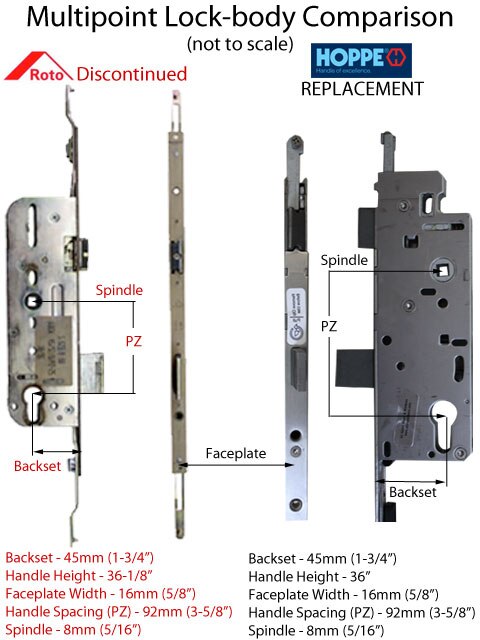

Faceplate Width - 5/8" (16mm)
Backset - 1-3/4" (45mm)
Deadbolt Throw - 1" (25.4mm)
Handle Height - 36" (914mm)

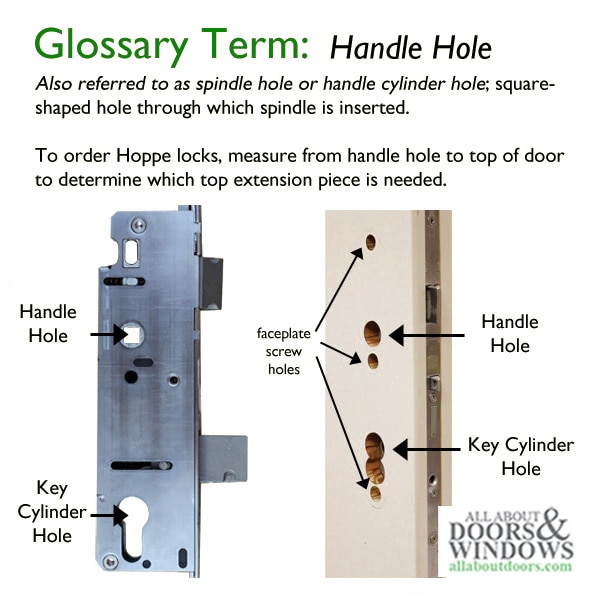

Tongue Positions: Measured from center of Handle Cylinder to bottom of tongue
Bottom Tongue - 26-7/16" (671mm)
Top Tongue - 47" (1193mm)

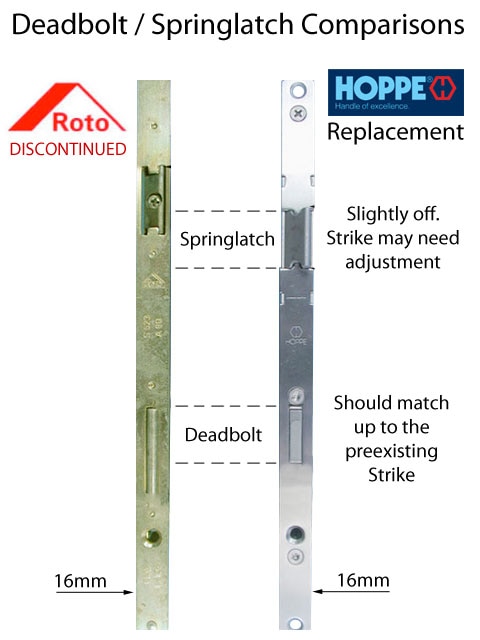

Note: Strike plates may require relocation and will have to be replaced when converting from roller to tongue version.
The original brass strike is longer than the replacement and will require patching door jamb or use existing strike.
The Tongue Strikes (top and bottom), when installed, will cover the old roller strike area.
