G-U Single Point Locks

NOTE: Single Point Locks (SPL) will NOT fix or repair Multipoint Locks (MPL).

G-U / Ferco Single Point Locks come in 2 versions. Key Above or Key Below Lever.

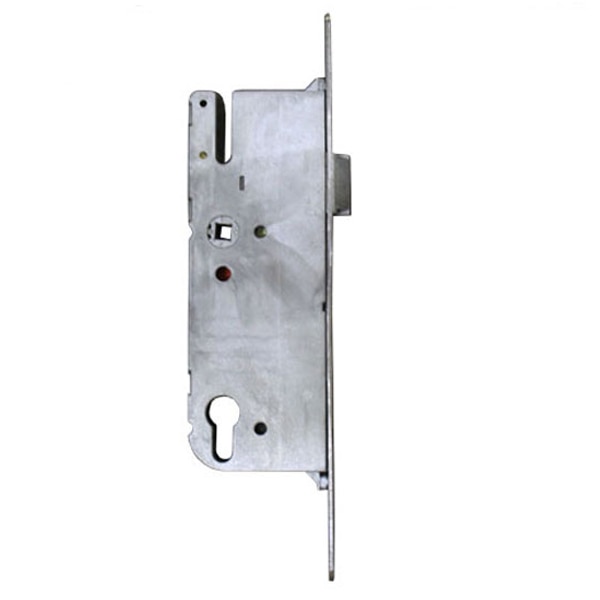

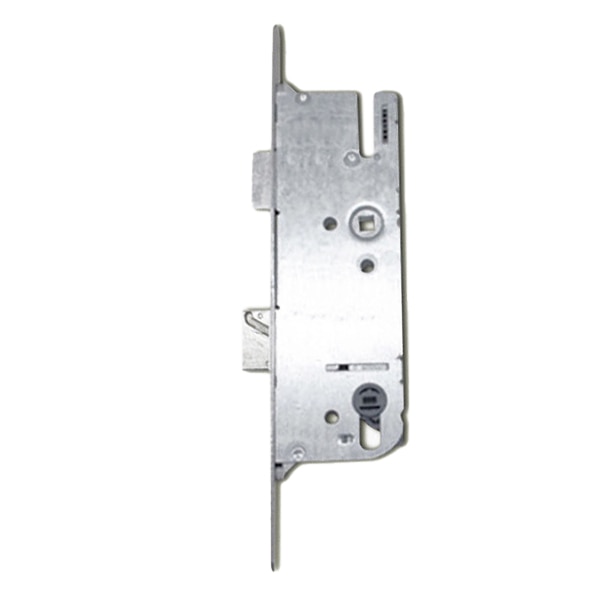

Monolock Europa, Key below comes in 6 back sets.
Unicorn New Breed, Key Above only available in 1 backset.
The routing and mortising dimensions are the same as G-U multi-point locking systems.

Key Features of GU Monolock
* Faceplate Width: 5/8 inch (16mm)
* Deadbolt Throw: 1 inch (25.4 mm)
* Lever controlled releasing of deadbolt and latch
* Locking by US-Cylinder system with a 90 degree turn of key or thumb-turn
* Non-handed, latch easily reversible
*Heavy duty mortise construction with reinforced lever return spring system
*Available in standard finish or stainless steel for increased corrosion resistance

Same hardware groove detail throughout entire G-U door lock program
