P1000 Active Gearbox, 35/92 Mortise Lock Body, American Version

P1000 Active 35/92 Gearbox for Multipoint lock ( Mortise Lock Body only, No Faceplate )
This will replace the gear box only on Multi-point Lock

Used by Marvin and others

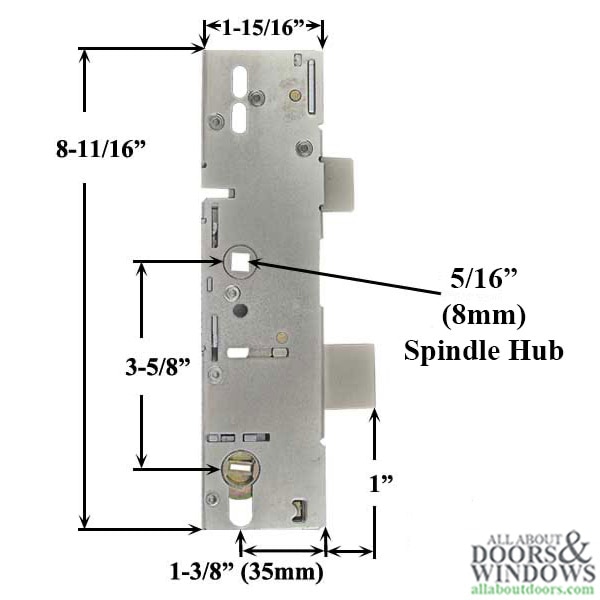

Cylinder Type: American Version
Backset: 1-3/8 inch (35mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 inch (25.4mm)
Spindle: 5/16 inch (8mm)
Lock Body Length: 8-11/16 inch
Lock Body Width: 9/16 inch (16mm)
Lock Body Depth: 1-15/16 Inch

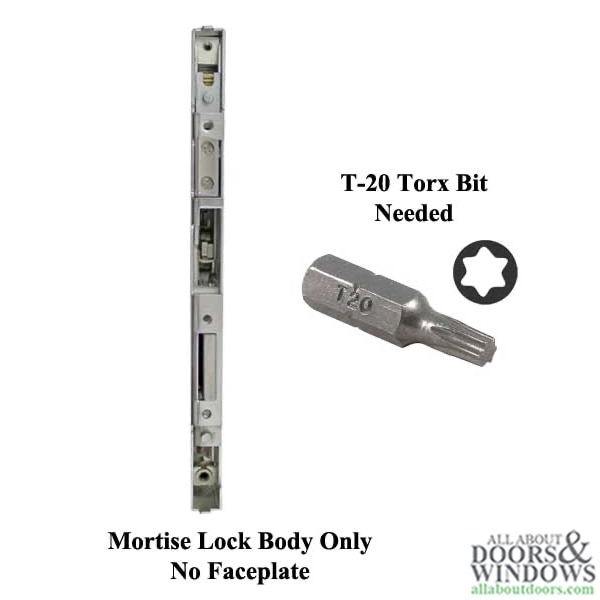

Installation Note:
The T-20 torx Star bit screws require 12-13 pounds of torque, when reinstalling faceplate screws
