P2000 Active Gearbox only 35/92 American Cylinder

Part Number: P2000-35LC
Price: $81.43

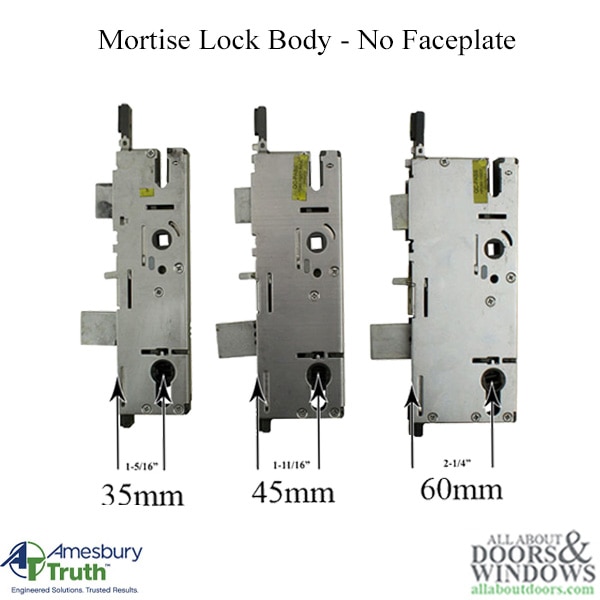

P2000 Active 35/92 Gearbox Only American Cylinder - No Faceplate

Gearbox has a deadbolt and spring latch only - It is NOT a complete Multipoint lock (MPL) - CENTER LOCK BOX ONLY

NOTE: This is the Lockcase Only - the faceplate rail is not included

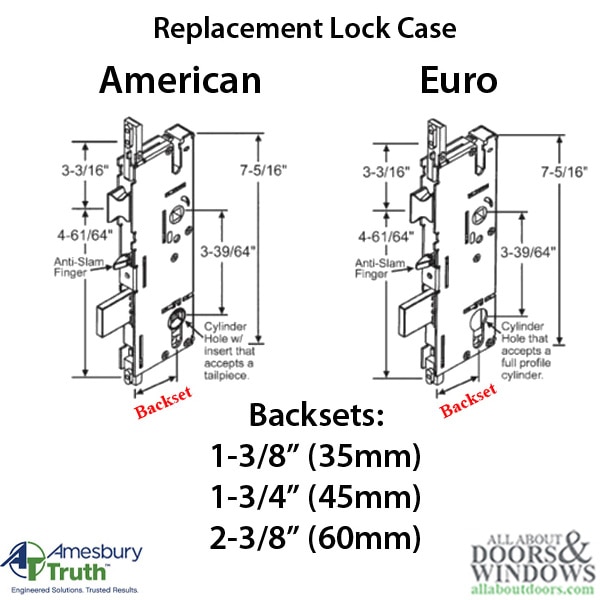

This mortise Lock case will replace the active gear box on Amesbury  MPL with the same size and configuration. Amesbury has 3 different locks - Please compare measurements & Information

Cylinder Type: American
Backset: 1-3/8 inch (35mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 Inch (25.4mm)
Faceplate Width: NONE

To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door

Installation Note:
The T-20 torx Star bit screws require 12-13 pounds of torque
