Hoppe MP Lock, 2 Hooks, 35mm Sliding Door Lock, 20mm Face
American cylinder above handle

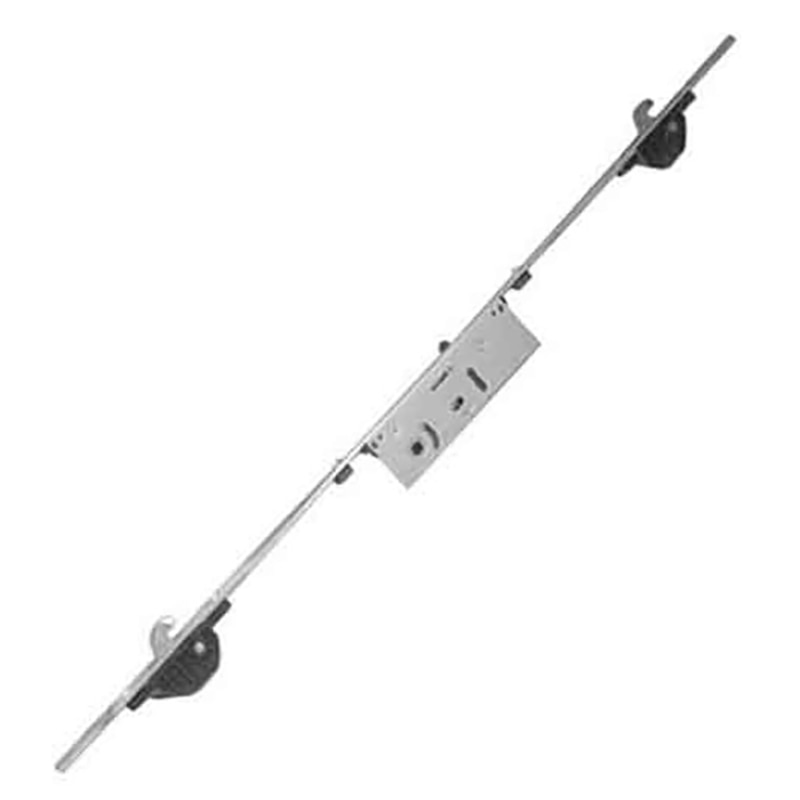

HOPPE New Style Sliding door 2 point lock
Multi-Point Lock will work on most Sliding Patio Doors.
Can be retrofitted to most wood doors.

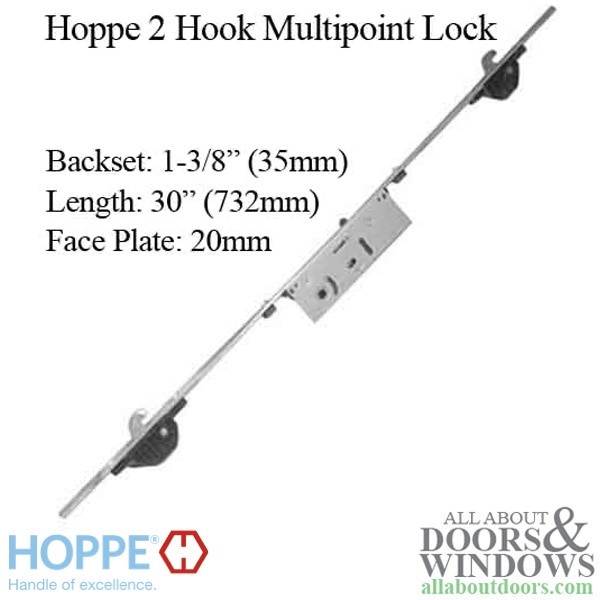

Face Plate Measurements: 3/4" Wide (20mm), 30 inches long.
Locking Points: Two Hooks, one Below handle, one above.
Hooks: 21-1/4 Inch Center of hooks
Spindle: 7mm
Lock Body Measurements:
Backset: 1-3/8 inches (35mm) measured from the edge of lock to center of handle
Lock Function:
Locking door is a manual function
When door is closed, a black tab of face of lock is depressed and handle can be turned to extend 2 hooks. (21-1/4" Centers)
Outside Key or Inside thumbturn secures in locked position.

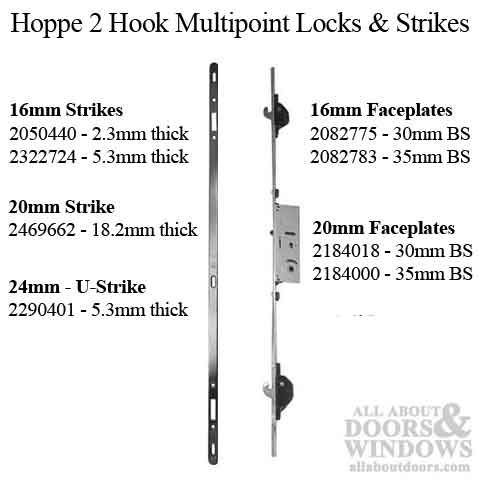

Related Hoppe Sliding Door Parts / Hardware:
5/8 inch (16mm) Faceplate:
2082775 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2082783- 2 point Sliding door Lock 1-3/8 inch (35mm) Backset
25/32 inch (20mm) Faceplate:
2184018 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2184000 - 2 point Sliding door Lock 1-3/8 inch (35mm) Backset

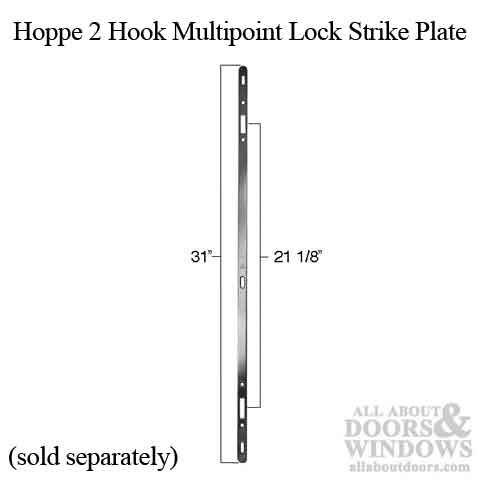

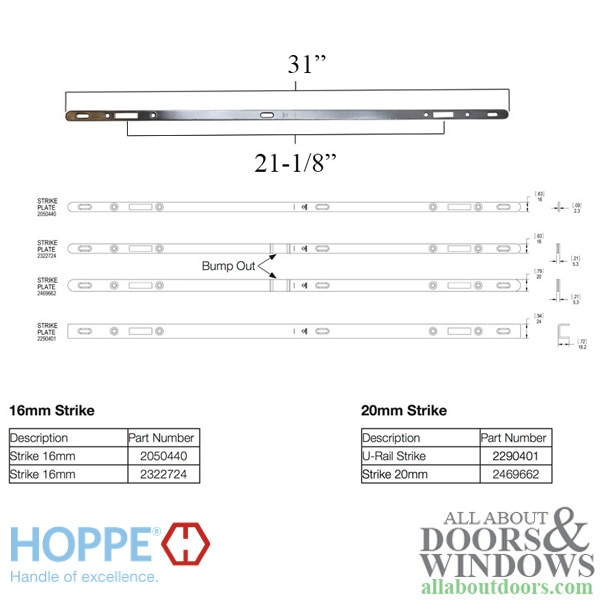

Strike Plates:
2050440 - Flat Strike, 16mm wide, 2.3 thick
2322724 - Flat Strike, 16mm wide, 5.3 thick
2469662 - Flat Strike, 20mm wide, 18.2 thick
2290401 - U-Strike, 24mm wide, 5.3 thick
8785699 - 45mm Wood Chipboard Screw ( #8 x1-3/4" Screw is Recommended)
Handleset Trim Slding Door Hardware:
2081959 - Resista Polished Brass
8763267 - Antique Brass
2082011 - Satin Nickel
2081991 - White
2082003 - Matte Black
2081993 - Polished Chrome
2081975 - Brushed Chrome
2082038 - Oil Rubbed Brass
2082020 - Antique Nickel
2083743 - Rustic Umber (ORB)
