Hoppe Multipoint Lock - 35mm 2 Hooks, Multipoint Sliding Door Lock

HOPPE Sliding Door Multipoint Lock (New Style)

This multipoint lock will work on most Sliding Patio Doors and can be retrofitted to most wood doors.

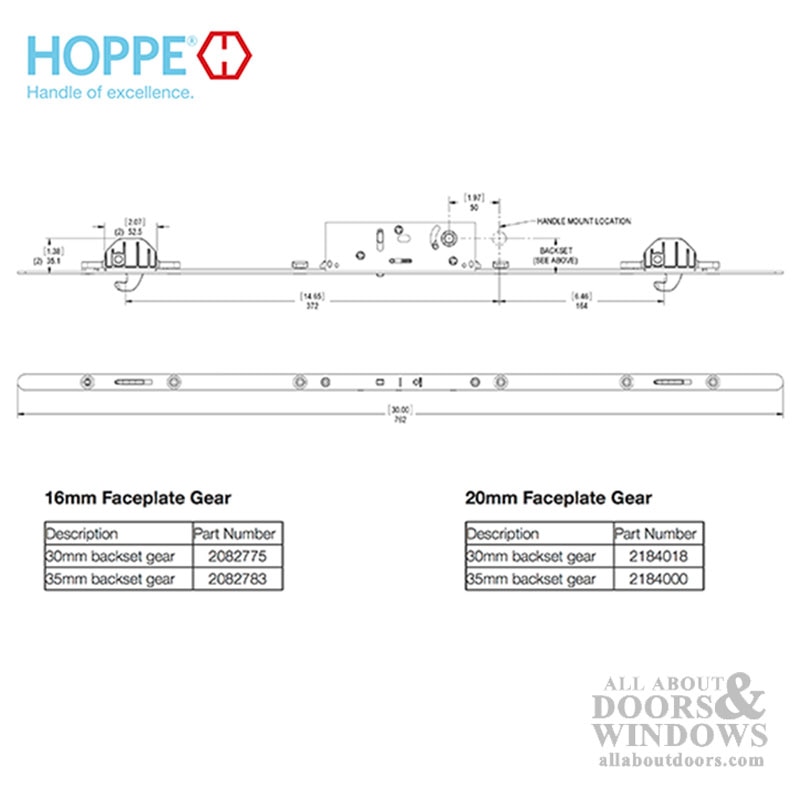

Face Plate Measurements: 5/8 Wide (16mm), 30 inches long.
Locking Points: Two Hooks, one Below handle, one above.
Hooks: 21-1/8 Inch Center of hooks
Spindle: 7mm

Lock Body Measurements:

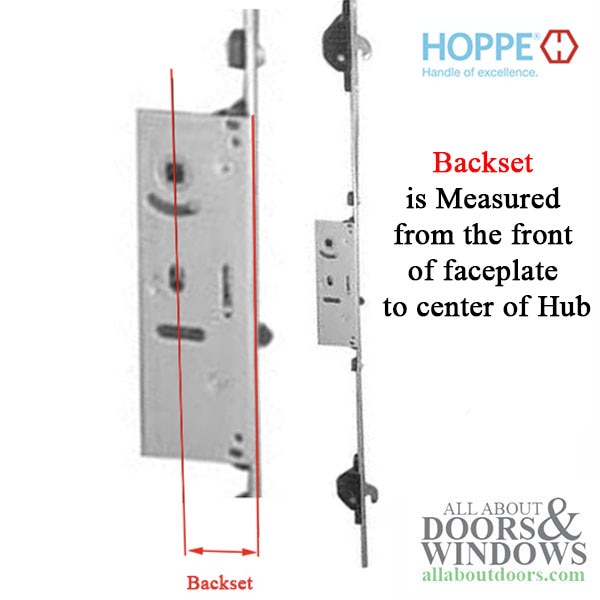

Backset: 1-3/8 inches (35mm) measured from the edge of the lock to the center of the handle.
Lock Function: Locking door is a manual function

When the door is closed, a black tab on the face of the lock is depressed and the handle can be turned to extend 2 hooks. (21-1/4" Centers)

The outside key or the inside thumbturn secures in locked position.

Related Hoppe Sliding Door Parts / Hardware:
5/8 inch (16mm) Faceplate:
2082775 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2087783 - 2 point Sliding door Lock 1-3/8 inch (35mm) Backset

25/32 inch (20mm) Faceplate:
2184018 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2184000 - 2 point Sliding door Lock 1-3/8 inch (35mm) Backset

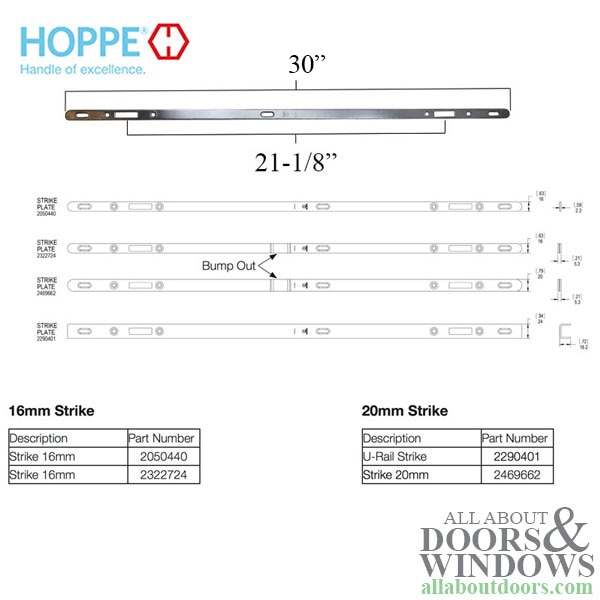

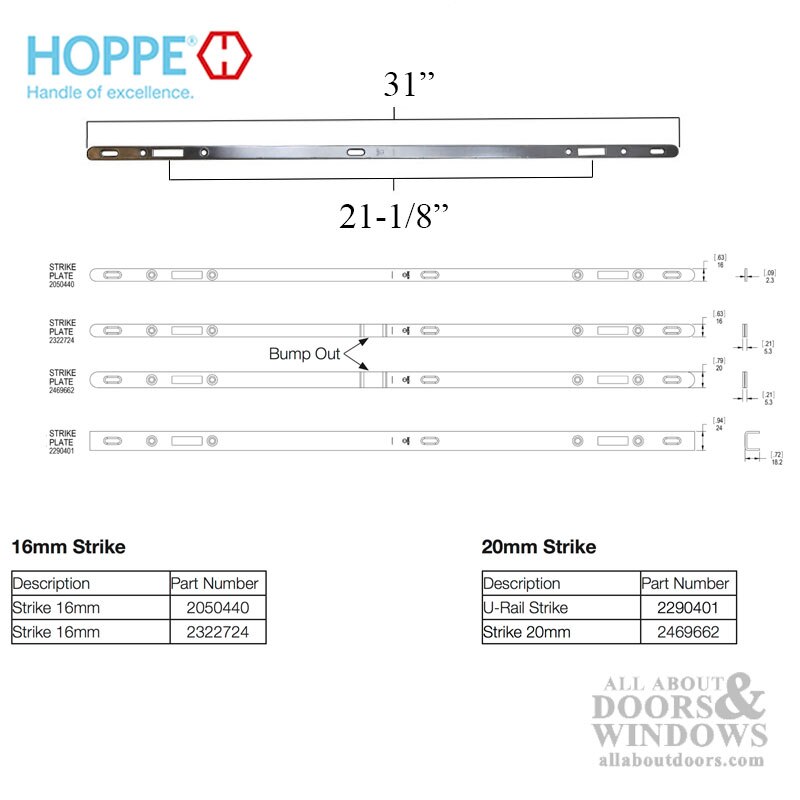

Strike Plates:
2050440 - Flat Strike, 16mm wide, 2.3 thick
2322724 - Flat Strike, 16mm wide, 5.3 thick
2469662 - Flat Strike, 20mm wide, 18.2 thick
2290401 - U-Strike, 24mm wide, 5.3 thick
8785699 - 45mm Wood Chipboard Screw ( #8 x1-3/4" Screw is Recommended)

Handleset Trim Sliding Door Hardware:
2081959 - Resista Polished Brass
8763267 - Antique Brass
2082011 - Satin Nickel
2081991 - White
2082003 - Matte Black
2081993 - Polished Chrome
2081975 - Brushed Chrome
2082038 - Oil Rubbed Brass
2082020 - Antique Nickel
2083743 - Rustic Umber (ORB)
