Mortise Lock, 45° Slot, Auto Lock, Round Face

Part Number: 15073
Price: $26.12
Mortise lock for sliding patio door constructed out of steel.

This Lock requires a Mortise installation.

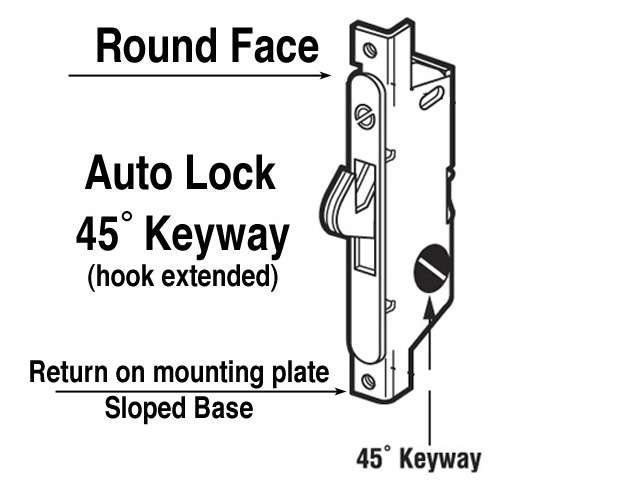

It has a round end face plate with a 45 Degree keyway.
The Hook is spring loaded and its projection is adjustable.
This lock will automatically latch the door.
This design is used by door manufacturers such as Adams Rite.

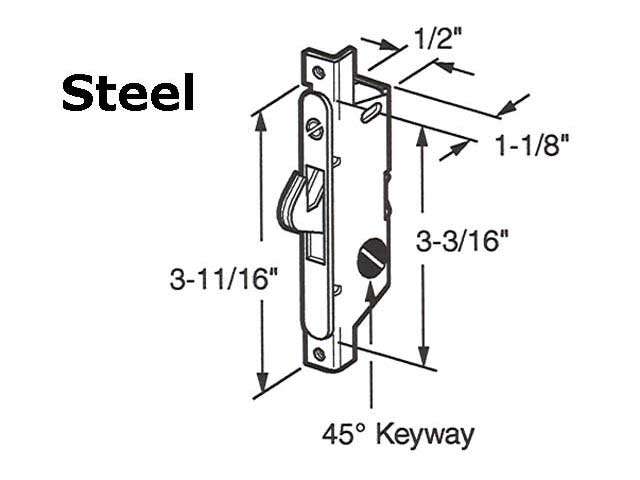

Hole Center: 3-11/16-inch
Keyway: 45 Degree

1 lock
Priced and sold each.

How to Replace Mortise Lock in Pella ProLine Sliding Door

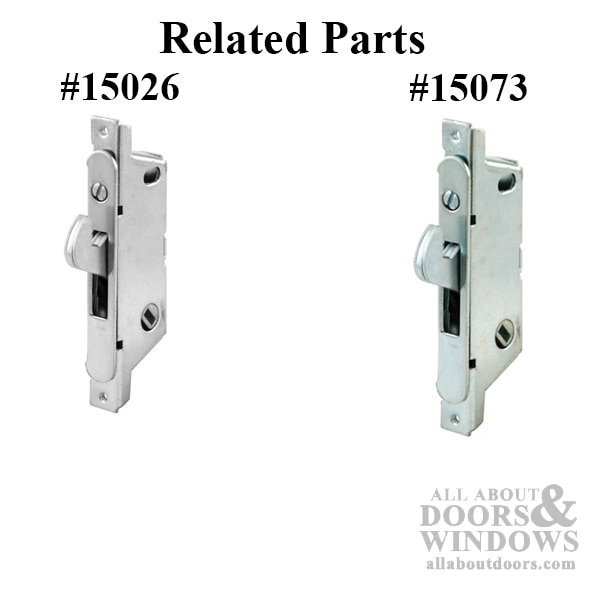

Related Adams Rite Mortise Locks:
15024 - 22.5 ¡ Slot - Round Face
15025 - 22.5 ¡ Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2119
