Adams Rite Mortise lock 45° Slot for Sliding Patio Door with Angled Body

Part Number: 15027
Price: $15.24

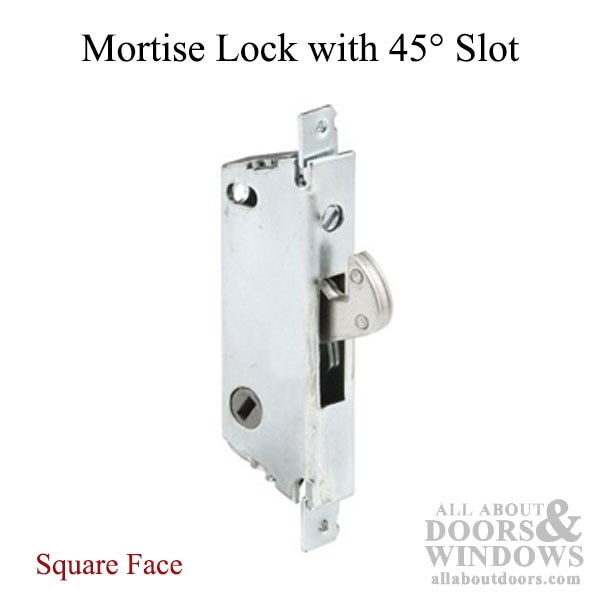

Adams Rite Mortise Lock for Sliding Patio Door with Angled body
This Lock requires a Mortise installation
The lock housing and hook are constructed out of Steel

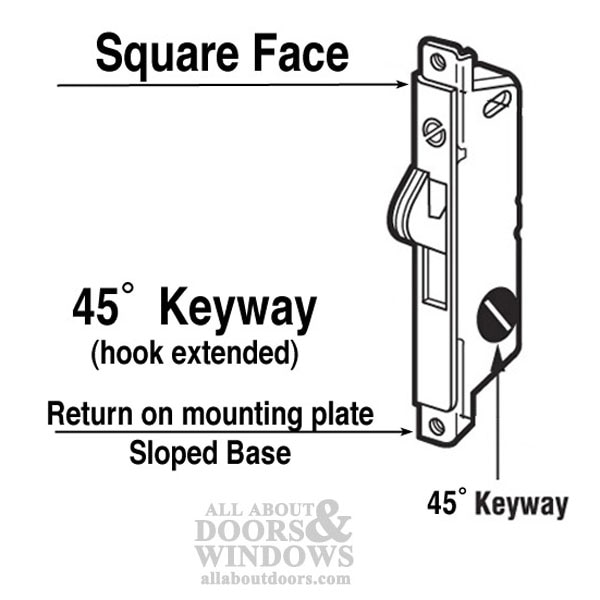

It has a square end face plate with a 45 Degree keyway
This design is used by door manufacturers such as Adams Rite
The Hooks projection is adjustable
Priced each, Sold each

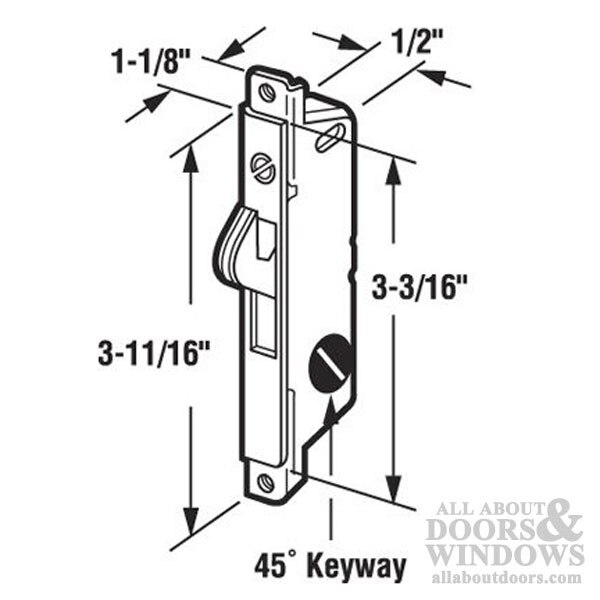

Hole Center: 3-11/16-inch
Keyway: 45°

Contents: 1 lock

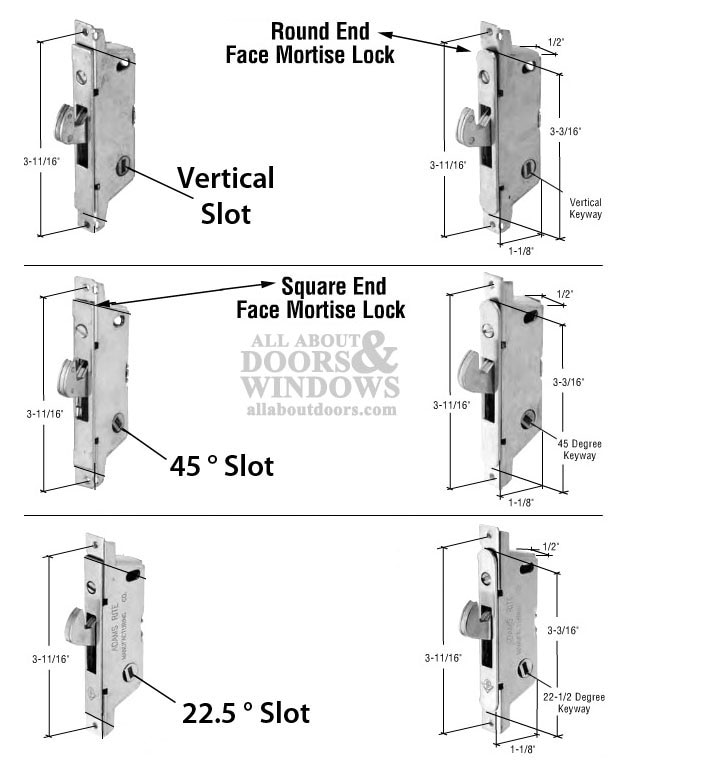

NOTE: The slot in the lock is available as 22.5 , 45 , or vertical

Related Adams Rite Mortise Locks:
15024 - 22.5 Slot - Round Face
15025 - 22.5 Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Round Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face

This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2111
Strybuc Industries: 16-170
SlideCo: 1521
