Adams Rite Mortise Lock 22.5 Slot - Square Face

Part Number: 15025
Price: $69.95

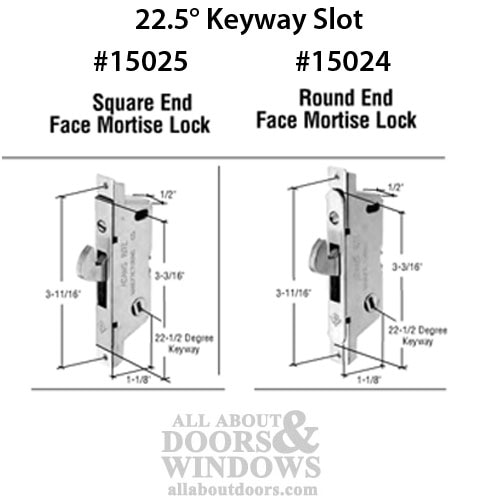

Square face plate Mortise Lock has a 1/2 inch (12.7 millimeter) wide steel housing.
The hook projection is adjustable and the keyway is in the 22-1/2 degree position with the hook fully extended.
Fits: Adams Rite Sliding Doors.
Latch: steel
Faceplate: Square
Keyway: 22-1/2 Degree ( 22.5 )
Screw Hole Spacing: 3-11/16 inch, (93.7 mm) Center-to-Center Screw Holes

Related Adams Rite Parts:
14328 Non Keyed Adams Rite Handle Set, Flush Type, 5-11/16 Screw hole spacing
14329 Keyed Adams Rite Handle Set

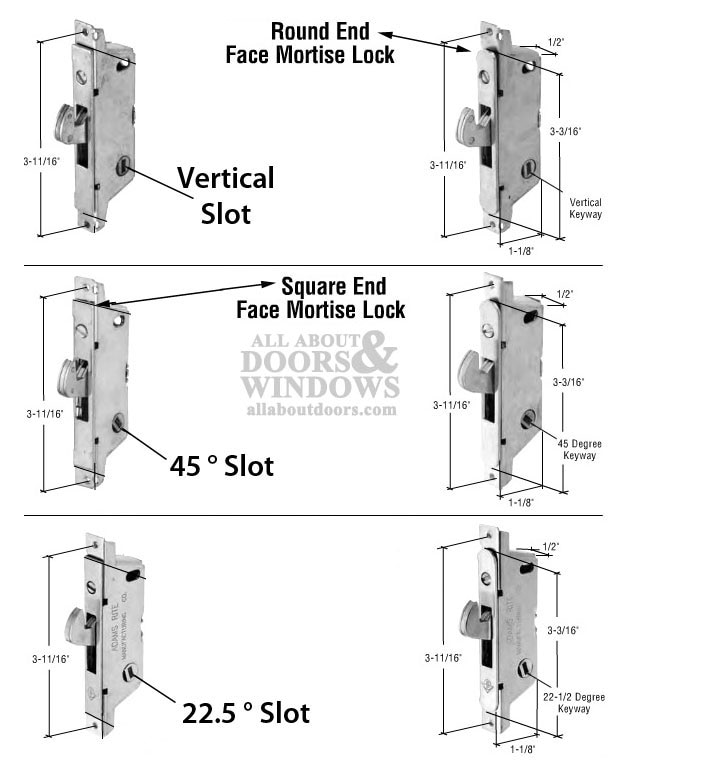

NOTE: The slot in the lock is available as 22.5 , 45 , or vertical
Related Adams Rite Mortise Locks:
15024 - 22.5 Slot - Round Face
15025 - 22.5 Slot - Square Face
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
