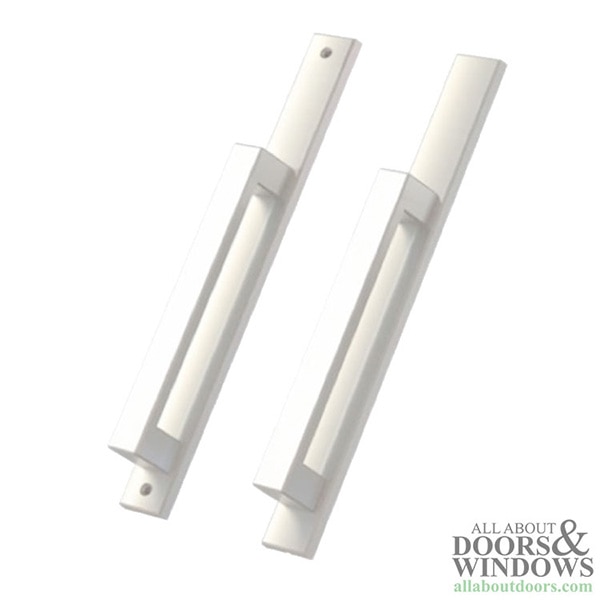

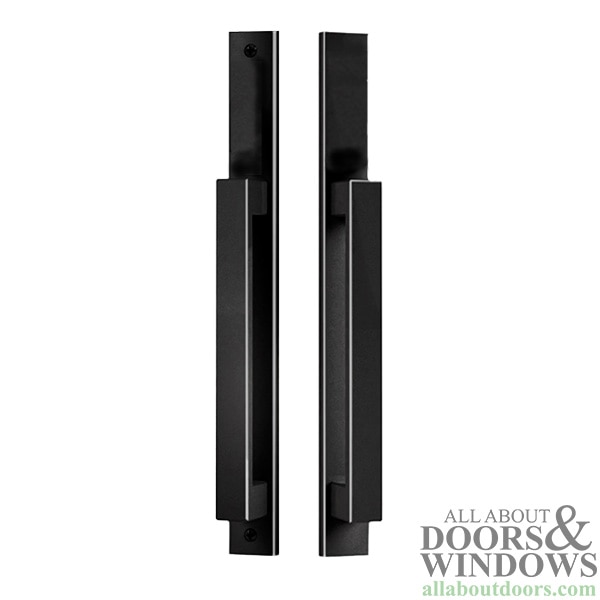

Modern / Contemporary Inline Sliding patio door handle, Semi Active
Modern / Contemporary Inline Sliding patio door Dummy Pull handle, No Key, No Thumb turn.
typical installation is 3 or 4 panel sliding doors
Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite
Function: Dummy, Fixed Pull
Available Functions: Active Keyed, Semi-Active Non-keyed with Thumbturn, inactive Dummy with fixed pulls
Door Thickness: stile thickness ranging from 1.25 to 2.25 inches (31.75 - 57.15mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes
Color / Finish: Black, other finishes special order, 3-4 weeks

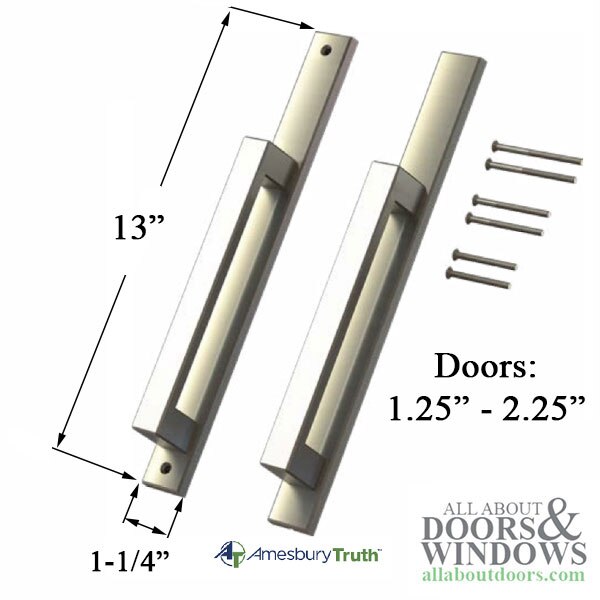

Installation Screw Holes: 11.92 inches (302.8mm) 11-59/64
Escutcheon Plate Width: 1.25 inches (31.8mm) 1-1/4
Escutcheon Plate Length: 13.00 inches ( 330.2mm ) 13
Mounting Screws: 2 x 8-32 Phillips Oval head machine ( assorted lengths)
Related Amesbury Truth 13" Inline Handlesets:
147181 - Active Non-Keyed
147182 - Active Keyed
147183 - Inactive Dummy
typical installation is 3 or 4 panel sliding doors
Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite
Function: Dummy, Fixed Pull
Available Functions: Active Keyed, Semi-Active Non-keyed with Thumbturn, inactive Dummy with fixed pulls
Door Thickness: stile thickness ranging from 1.25 to 2.25 inches (31.75 - 57.15mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes
Color / Finish: Black, other finishes special order, 3-4 weeks
Installation Screw Holes: 11.92 inches (302.8mm) 11-59/64
Escutcheon Plate Width: 1.25 inches (31.8mm) 1-1/4
Escutcheon Plate Length: 13.00 inches ( 330.2mm ) 13
Mounting Screws: 2 x 8-32 Phillips Oval head machine ( assorted lengths)
Related Amesbury Truth 13" Inline Handlesets:
147181 - Active Non-Keyed
147182 - Active Keyed
147183 - Inactive Dummy
Amesbury Truth 40.68.02.102 Black Part Number Function 40.68.xx.100 Semi - Active non-keyed 40.68.xx.101 Active-Keyed 40.68.xx.102 Inactive Dummy
