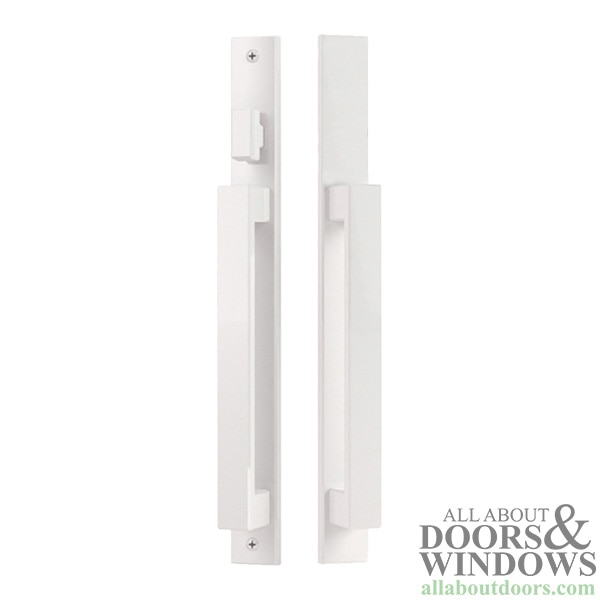

Modern/Contemporary Inline Sliding Patio Door Handle Semi Active

Modern / Contemporary Inline Sliding patio door handle, Active Non-Keyed Exterior with Interior Thumbturn.

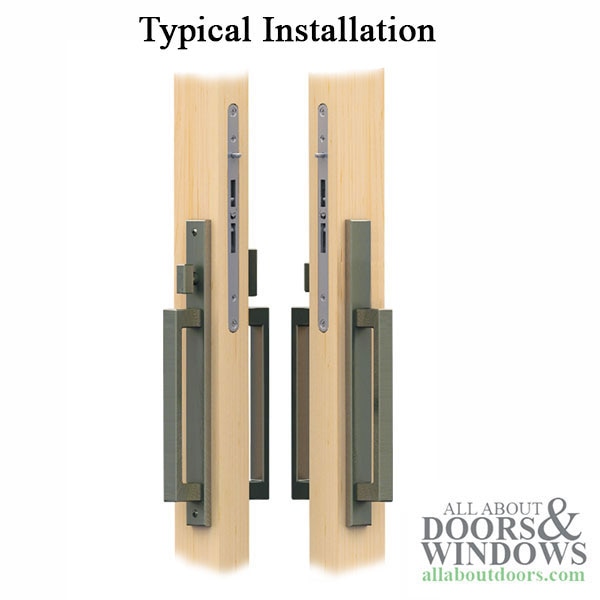

Typical installation is single, 2-Point or 3-point locking mortise lock with hooks.

Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite
Function: Active, Non-keyed with Interior thumb turn, used with single or multipoint locks
Available Functions: Active Keyed, Semi-Active Non-keyed with Thumbturn, inactive Dummy with fixed pulls
Door Thickness: stile thickness ranging from 1.25 to 2.25 inches (32 - 57mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes
Color / Finish: Black, other finishes special order, 2-4 weeks

Installation Screw Holes: 11.92 inches (302.8mm) 11-59/64
Installation Note: Can be installed with Key above or Key below

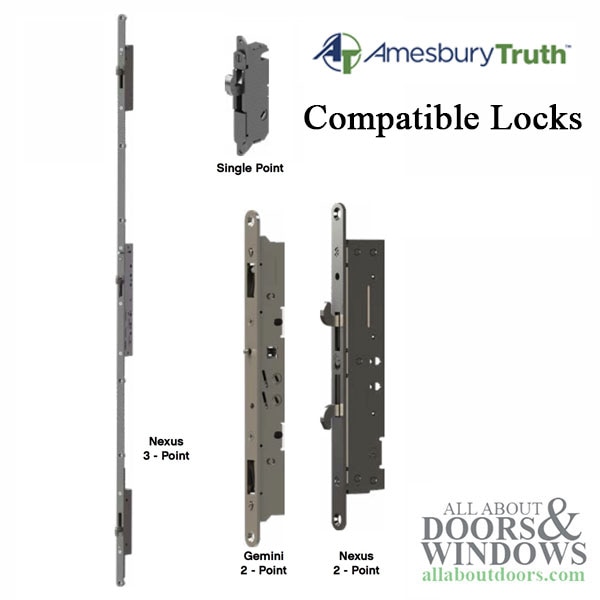

Works With: Truth Single Point, Gemini or Nexus 2-point and Nexus 3-point locks

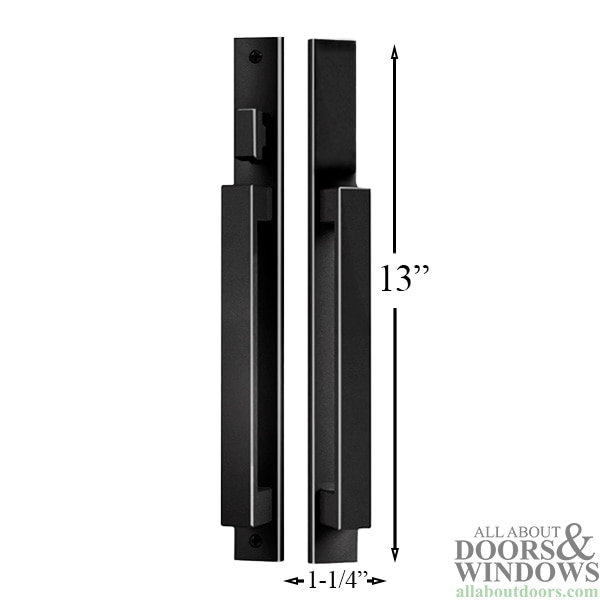

Escutcheon Plate Width: 1.25 inches (31.8mm) 1-1/4
Escutcheon Plate Length: 13.00 inches ( 330.2mm ) 13
Center of Thumbturn to Top screw: 1.97 inches ( 50mm) 1-31/32
Mounting Screws: 2 x 8-32 Phillips Oval head machine ( assorted lengths)
Key Cylinder: NONE

Related Amesbury Truth 13" Inline Handlesets:
147181 - Active Non-Keyed
147182 - Active Keyed
147183 - Inactive Dummy
