Hoppe F77-R, 2009 Adjustable Set Hinge, RHI/LHO- Resista Brass

Part Number: 3113431
Price: $90.24

Hoppe New 2009 Ultimate Adjustable Set Hinge - Handed
Adjusts vertically (Set Hinge) and horizontally by +/- 1/8 inch so you can get a perfectly swinging door
Large 3/16 inch hex head screws for easy adjustment and to prevent stripping of screws
Non-removable pins for security- works on both inswing and outswing doors

Material: Brass Base Material
Hinge Type: Set for Vertical Adjustment
Hinge Style: NRP - Non Removable Pin - Hinges do not come apart
Color / Finish: Resista Polished Brass

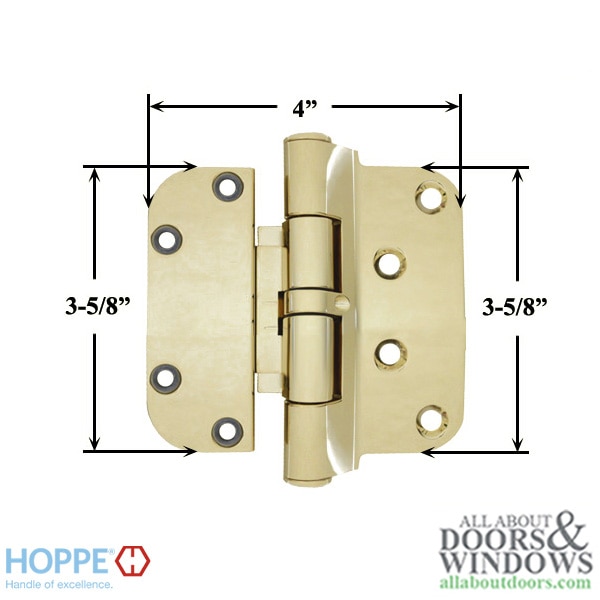

Size: 4 inches wide by 3-5/8 inches tall (Set additional images for actual size)

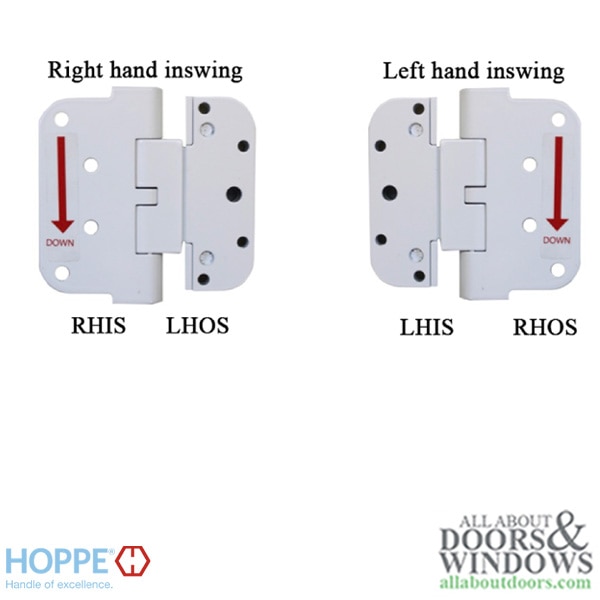

Handed: Yes - RHI (right hand inswing) LHO (left hand outswing)

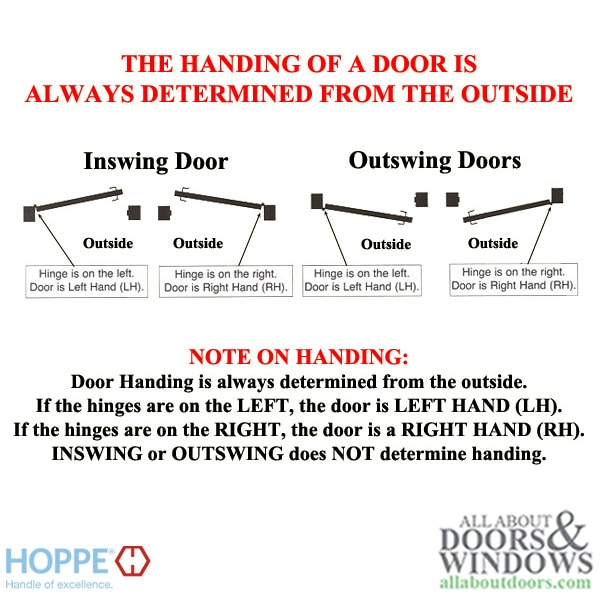

Doors are viewed from outside, by hinge location

Opposite-handed hinge (LHI/RHO) is available here: #3113529

NOTE:

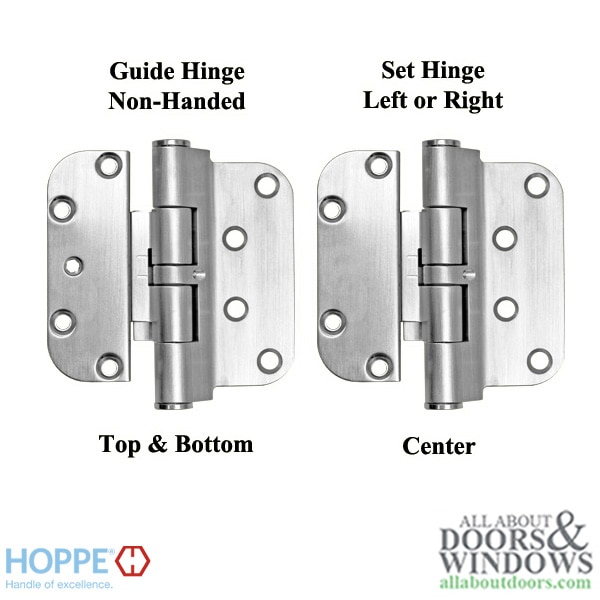

3 hinge door will have 1 set hinge (middle) and 2 guide hinges (top & bottom)
4 hinge door will have 1 set hinge (middle) and 3 guide hinges (top, middle & bottom)

Read: Guide to Adjusting HOPPE Hinges

Screws are not included with hinges. Must be purchased from a hardware store.
Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf
