Hoppe F77-R, 2009 Guide Hinge, Resista Brass

Part Number: 2664601
Price: $90.24

Hinges are brand new but may have slight blemishes.


Hoppe Ultimate Adjustable Guide Hinge; Non Handed,
Adjusts horizontally (Guide Hinge) by +/- 3mm so you can get a perfectly swinging door
Large 3/16 inch hex head screws for easy adjustment and to prevent stripping of screws
Non-removable pins for security- works on both inswing and outswing doors

Material: Brass Base Material
Hinge Type: Guide for Horizontal Adjustment
Hinge Style: NRP - Non Removable Pin - Hinge does not come apart
Color / Finish: Resista Polished Brass
Size: 4 inches Wide by 3-5/8 tall (Set additional images for actual size)

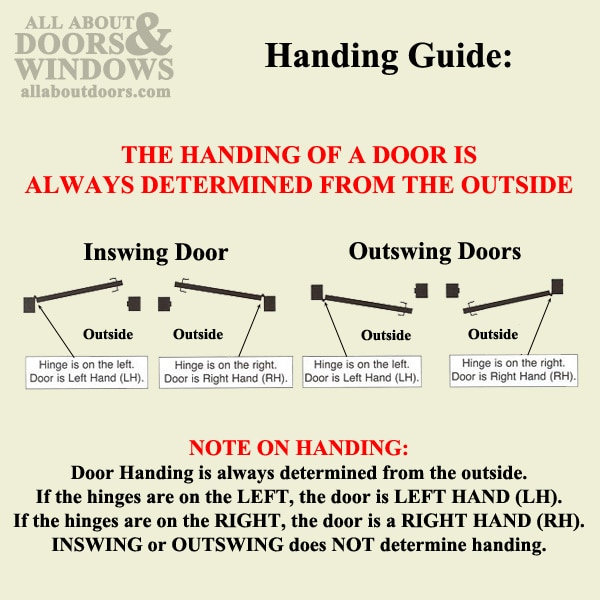

Handed: NO - Non-Handed, used for left or right hand inswing or outswing doors

NOTE:
3 hinge door will have 1 set hinge (middle) and 2 guide hinges (top & bottom)
4 hinge door will have 1 set hinge (middle) and 3 guide hinges (top, middle & bottom)

Read: Guide to Adjusting HOPPE Hinges



Screws are not included with hinges. Must be purchased from a hardware store.
Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf
