Andersen Sill Hinge Left-Hand Egress Split-Arm Sill Hinge 20 Inch Stainless Steel For Windows From 1966 To Present

Part Number: 1361469
Price: $18.17

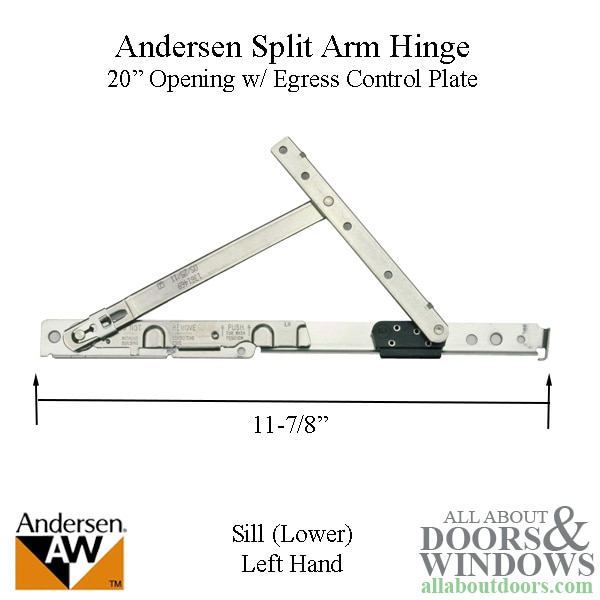

Andersen left-handed split arm sill (lower) hinge with screws and egress control plate for Andersen 400 Series casement windows manufactured 1966 - present. If the window was manufactured prior to 1981, you must replace both the upper and lower hinges. Fits CW35-CW6 and CX35 with a 20 inch opening.
Handing: Left handed; when viewing window from outside the home, the hinge will be located on the left side.
Window Opening Size: 20"
Track length: 11-7/8"

NOTE: These parts require the Hinge Replacement/Conversion Instruction Guide from Andersen. View instruction guide or watch video here.

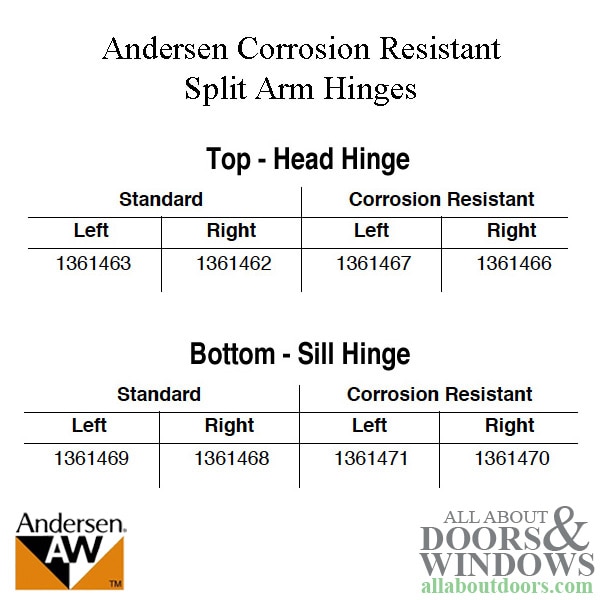

Related Parts

Head Hinges:
1361463 - Standard Left Head
1361462 - Standard Right Head
1361467- Corrosion Resistant Left Head
1361466 - Corrosion Resistant Right Head

Sill Hinges:
1361469 - Left Sill, Standard
1361468 - Right Sill, Standard
1361471 - Left Sill, Corrosion Resistant
1361470 - Right Sill, Corrosion Resistant
