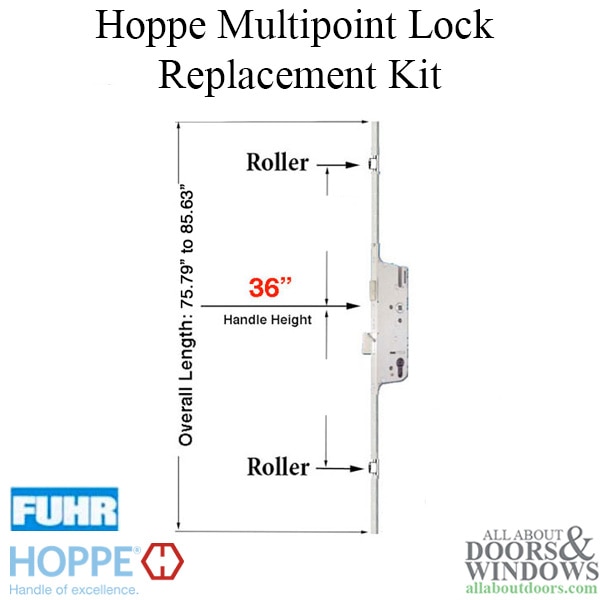

HOPPE Replacement for FUHR Automatic Multipoint Lock with Rollers

This is a multipoint lock replacement kit for 77 inch FUHR multipoint lock with 2 locking rollers and an auto-release roller (part #499010099).

Replacement kit is manually operated with 2 locking roller-style bolts: one on top and one on bottom.
Replacement kit will fit door panels from 75.8 inches to 85.6 inches tall

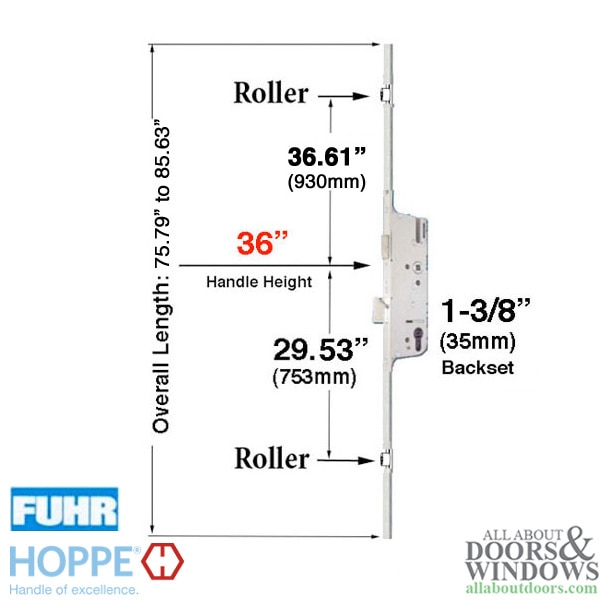

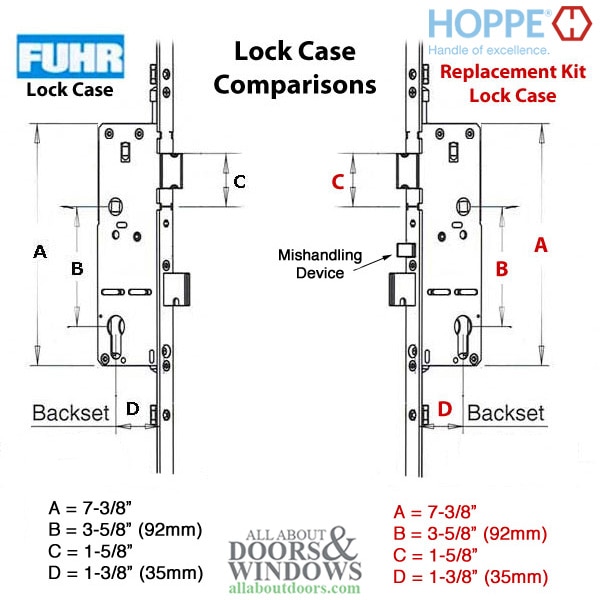

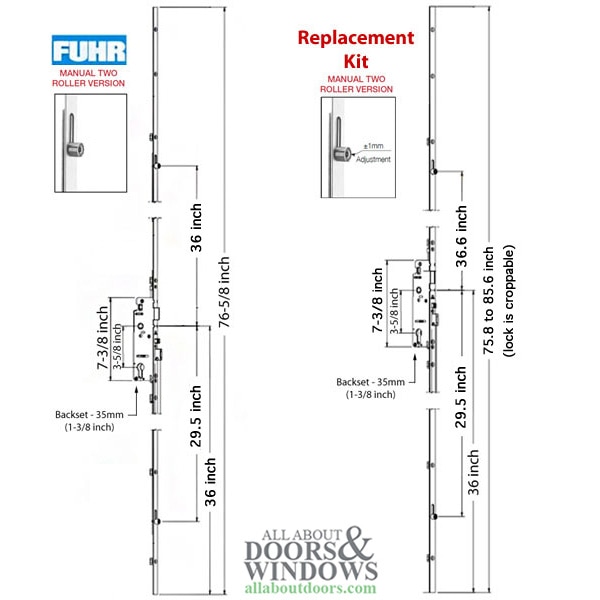

Replacement Kit Specs (original FUHR specs are in parenthesis)
Backset: 35mm (35mm)
Handle-Height: 36 inches (36 inches)
Overall Length: 76 - 86 inches (about 77 inches)
PZ: 92mm (92mm)
Top Roller Position: 36.61 inches (36 inches)
Bottom Roller Position: 29.53 inches (29.5 inches)

NOTE: Replacement process may involve modification to door jamb-- roller strikes may need to be moved up or down in door jamb.

For replacement instructions, read:Replacing FUHR roller multipoint lock with HOPPE roller lock

Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
