Replace with 4990221-KIT
Replacement includes bottom gear
, top extension
and stainless steel screws.
Fuhr 3-point, Automatic multipoint lock; Tongue
Please Review all 3 Images for details. Automatic Locking

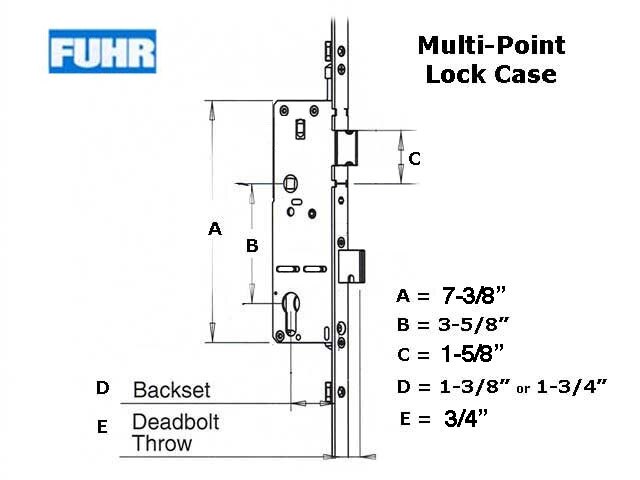

: Tongue Version - Tongues engage when door closesBackset
: 1-3/8 inches (35mm), Deadbolt Throw
: 1/2 inch (14mm), Handle to Cylinder spacing

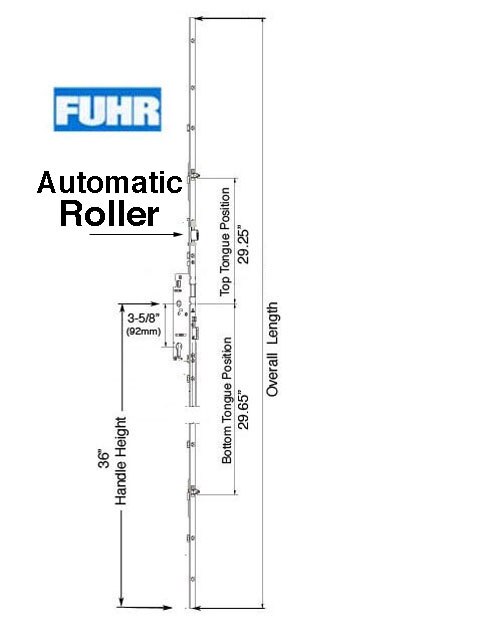

(PZ): 3-5/8 inches (92mm), Handle Height
: 36 inches (914mm)
Bottom Tongue position
29.65 inches (753mm)
Top Tongue position 29.25 inches ( 743mm) Overall Length
fits Doors 71.06 to 78.74 inches tall.
Note: this Multi-Point lock can be trimmed for different height doors
Used by Semco and other door companiesNOTE:
The Automatic has the Roller located in a different position than on the replacement
We suggest changing to the manual version - If automatic is desired, contact office.Fuhr Replacement Option: 4990221-KIT
This is a replacement made by HOPPE
, upper and lower tongue locks and screws.
Reuse your trim, handles and keyed cylinder.
