5/8" Faceplate, 1-3/8" Backset, Bottom Tongue @ 29.65", Top Tongue @ 29.25", 36" Handle Height
Replacement Kit for a variety of Multipoint locks on doors with Old Hoppe, Fuhr, Roto or other brands.
Please confirm all measurements to be sure this is the correct replacement for your door.
The kit includes bottom gear, top extension and stainless steel screws

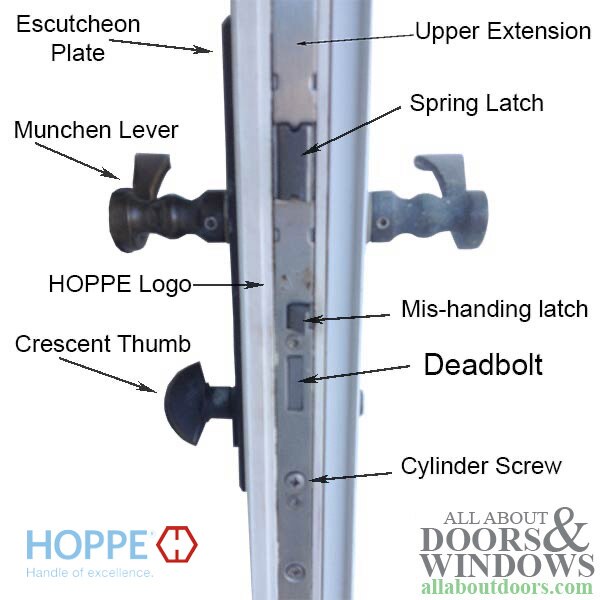

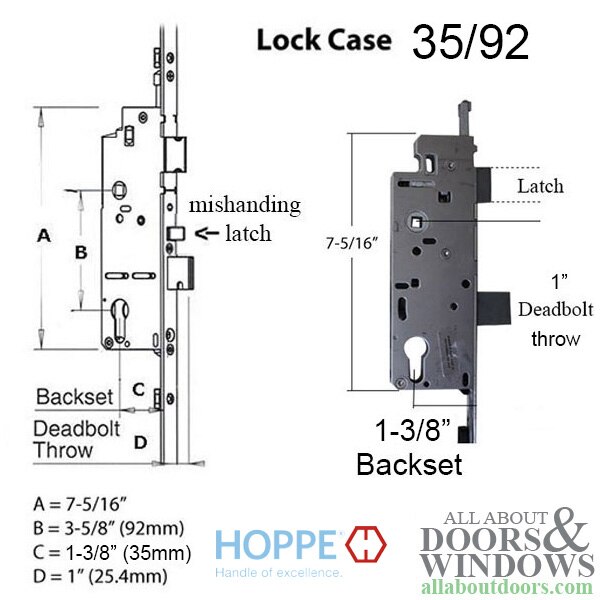

Specifications:

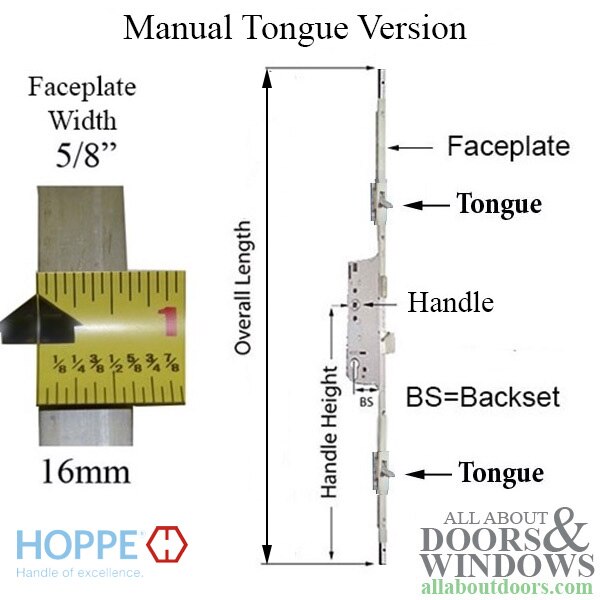

Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm)
Handle to Cylinder PZ: 3-5/8 inch (92mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inch (914mm)
Top Tongue Position: 29.25 inch (743mm)
Bottom Tongue Position: 29.65 inch (753mm)
Overall Length: Doors 71.06- 78.94 (1805 - 2000mm))
Croppable: Yes, Max cutoff from top extension 3.94 inch (10mm)
Note: This multipoint lock can be trimmed for different height doors.
Kit Contents:
8778143: 16mm Manual Gear, 35/92 Tongue D/B 1 inch (25.4mm), HH 36 inch (914mm)
8778547: 16mm Manual Top Extension, Tongue @ 29.25 (743mm) length
8785695: Installation Screws, 1-3/8 Length (35mm) - Stainless Steel (20)

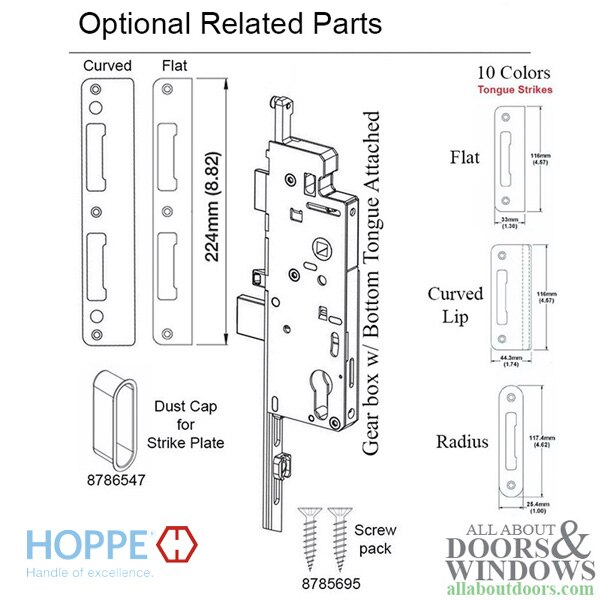

Optional Related Parts: 1-3/4" Door - Stainless Steel
1964522 - Curved Lip Tongue Strike
2025199 - Radius Lip Tongue Strike
8784707 - Flat Tongue Strike
1963554 - Latch & Deadbolt Strike Plate, Curved 1-3/4" (45mm) door - Stainless Steel
2342311 - Latch & Deadbolt Strike Plate, Flat 1-3/4" (45mm) door - Stainless Steel
8786547 - Dust cap for strike plate
INSTALLATION NOTE: Cutting to length
1. Lay the old lock and new lock side by side to get length.
2. The top extension is longer than needed, Mark the Top extension for proper length.
3. Using a hacksaw cut excess from top of extension

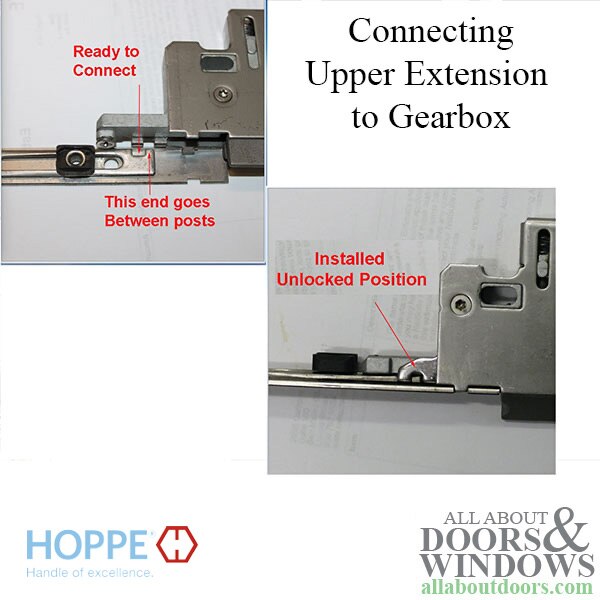

4. Attach top extension to lower assembly
5. Install complete lock, be sure the handle height is the same as before
6. Test operation of door BEFORE closing. The small Mis-handing latch must be depressed to operate lock.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To unlock door, Turn Thumb turn or key and then depress lever.

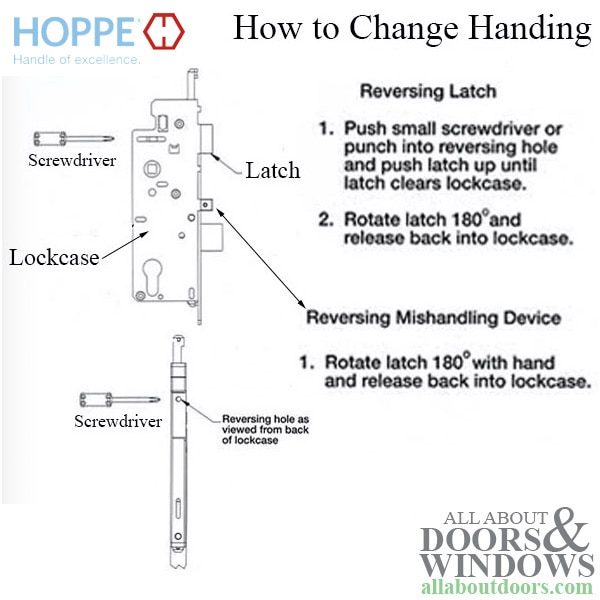

To Change Handling / Reversing Latch
Latch handing may be changed by inserting small screwdriver into small hole in back of latch and pushing forward, twist latch and release.
See additional pictures.
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
