Quick Tilt Constant Force Balance .540 Carrier, Tandem Coil

Price:$9.77 to $12.97
Part Number: 534309
Price:$9.77 to $12.97

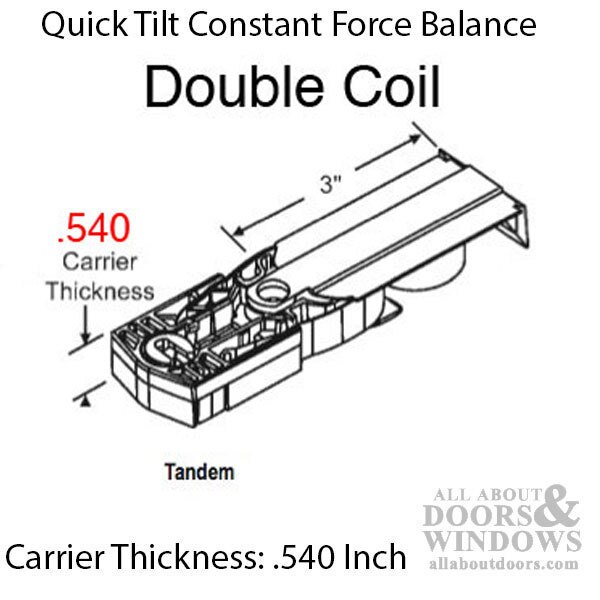

Quick Tilt Double Coil Spring Constant Force Balance

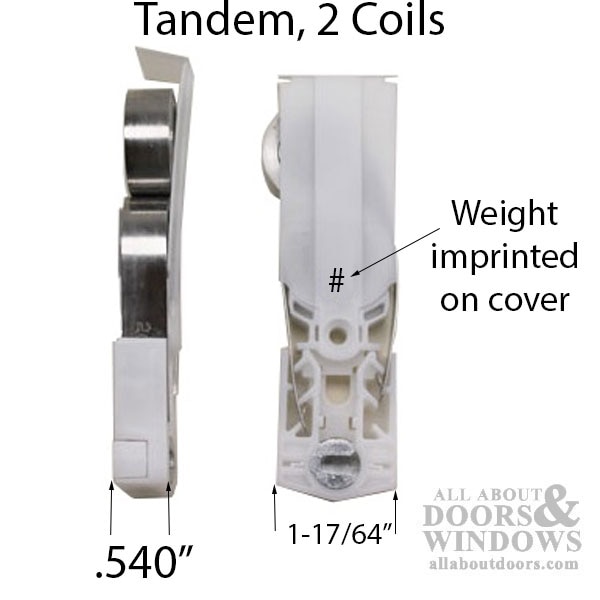

Tilt Balance Assembly; Tandem 2 Coil Springs (Dual)

Number of Coil Springs: 2
Number on Balance: Choose from list

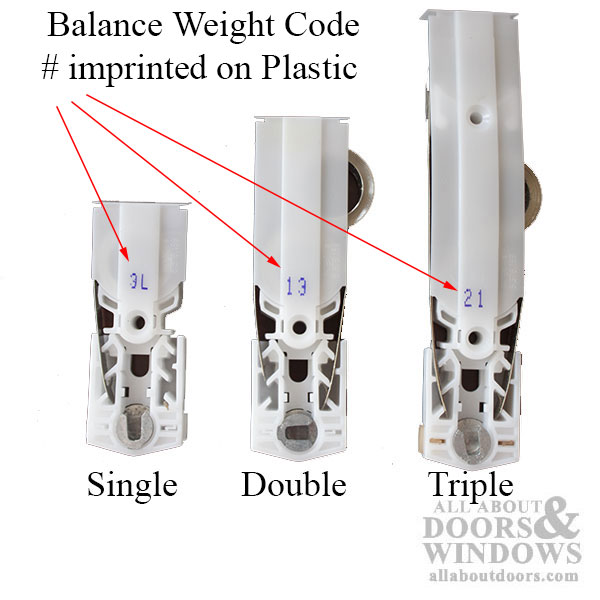

Weight Capacity: 10 to 20 pounds (number on balance corresponds to weight capacity of balance)
Handed: No
Carrier Width: 1-1/4 inch

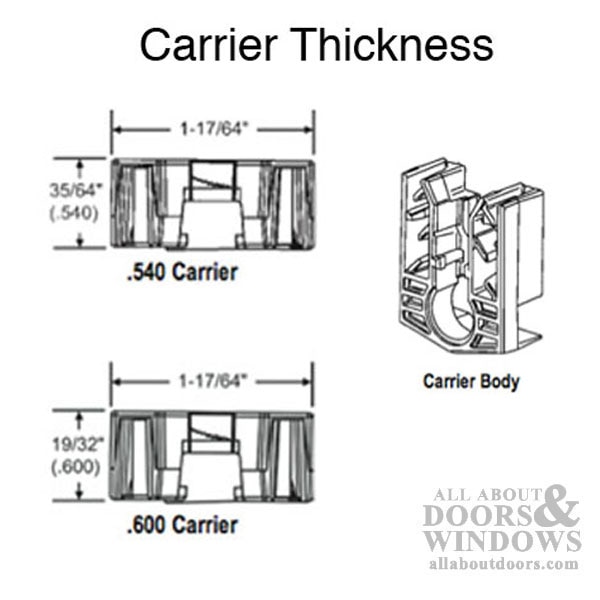

Carrier Thickness: .540 inch (35/64)*
Overall Length: 4-5/8 inch
Sold as set as pictured

*Note: This can replace Quilt Tilt double coil spring balances that are .600 inches thick as well


Related Hardware - New Style
534308 - Single Quick Tilt Balance
534309 - Tandem Quick Tilt Balance
534310 - Triple Quick Tilt Balance

Related Pivot Bars - New Style
532105 - 2.9 inch, first hole 1.364
532074 - 2.5 inch, first hole 1.147
532073 - 2.31 inch, L-Shape

NOTE:
532104 & 532105 have same screw hole Measurements 532104 uses # 6 Screw & 532105 uses # 8 Screw
