Quick Tilt Constant Force Balance .540 Carrier, Single Coil

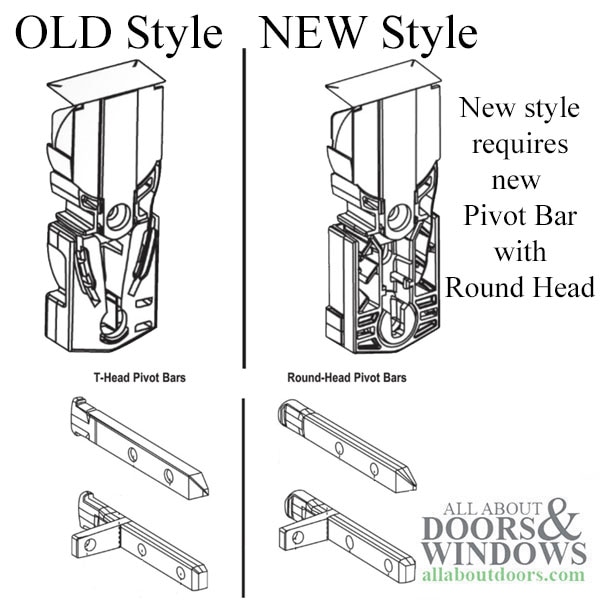

New Style Quick Tilt Single Coil Spring Constant Force Balance uses a different pivot bar than the old style. If changing an old style, you will need to change Pivot bar also, old style had a T-Head, new style uses round head pivot bar.
Number of Coil Springs: 1 - Single Coil
Weight: 3-10* (Number stamped on plastic cover)
Number on Coil: None

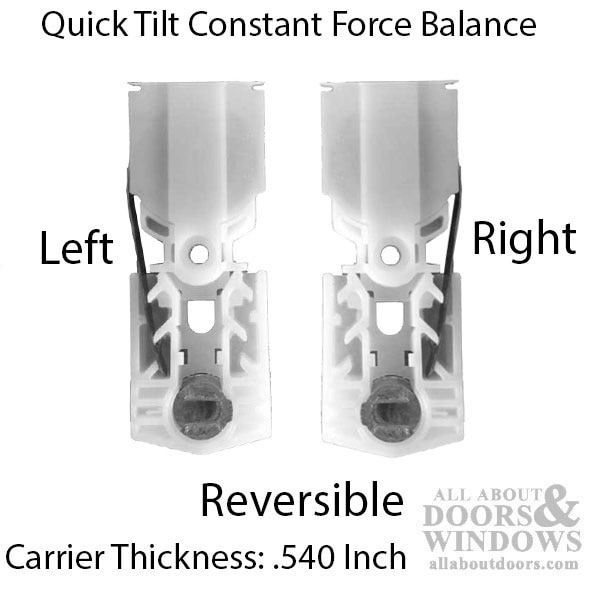

Handing: Reversible (see 4th image -- cover pops off and coil direction can be switched)
Carrier Width: 1-1/4 inch (1-17/64 actual )
*Size 10 has been discontinued by the manufacturer. Replace with 534309 (select size 10). This is a tandem coil balance built to hold the same weight. You can replace your single coil with this tandem coil.

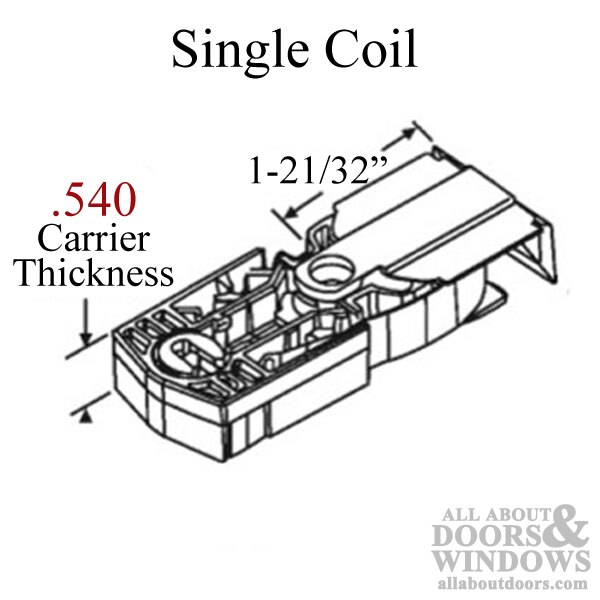

Carrier Thickness: .540 inch (35/64)*
Overall Length: 3-3/8 inch
Sold: Each, Priced Each - Best if replaced in pairs
Sold as Complete Unit, no individual parts available

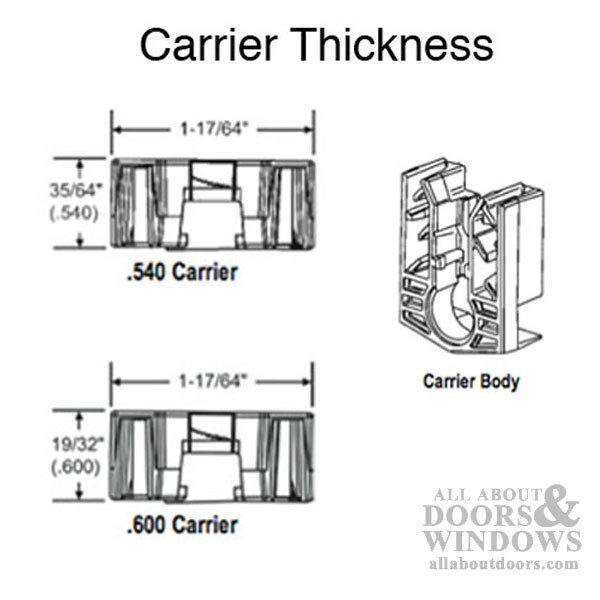

NOTE: The Plastic Carrier was available in 2 thickness, .540 (13.716mm) and .600 (15.24mm) * It Appears the .540 can replace Quilt Tilt double coil spring balances that are .600 inches thick
