Quick Tilt Constant Force Balance .540 Carrier, Triple Coil

Price:$18.06 to $30.47
Part Number: 534310
Price:$18.06 to $30.47
Quick Tilt Triple Coil Spring Constant Force Balance

Tilt Balance Assembly; Triple 3 Coil Springs

Number of Coil Springs: 3

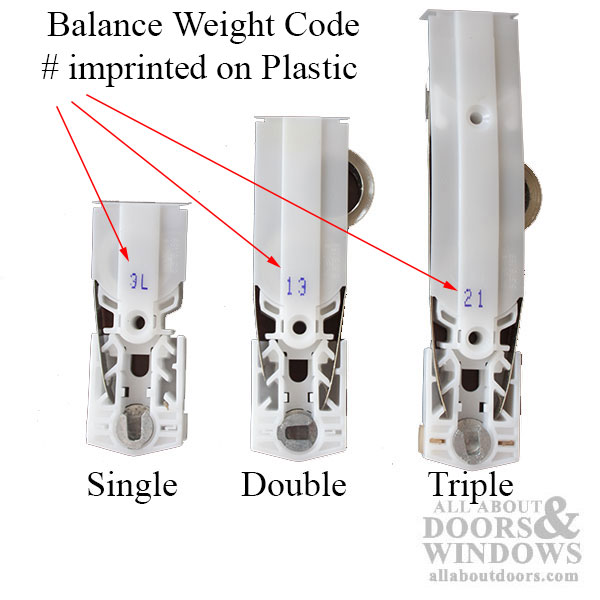

Number on Balance: Choose from List Below
Weight: 21 to 30 Pound
Handed: No (can be used on either side of window)
Carrier Width: 1-1/4 inch

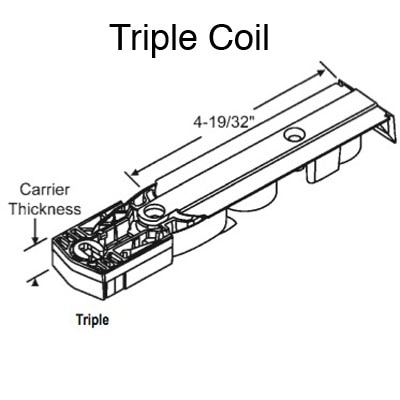

Carrier Thickness: .540 inch (35/64)*
Sold as Complete set only

*Note: This can replace Quilt Tilt double coil spring balances that are .600 inches thick as well

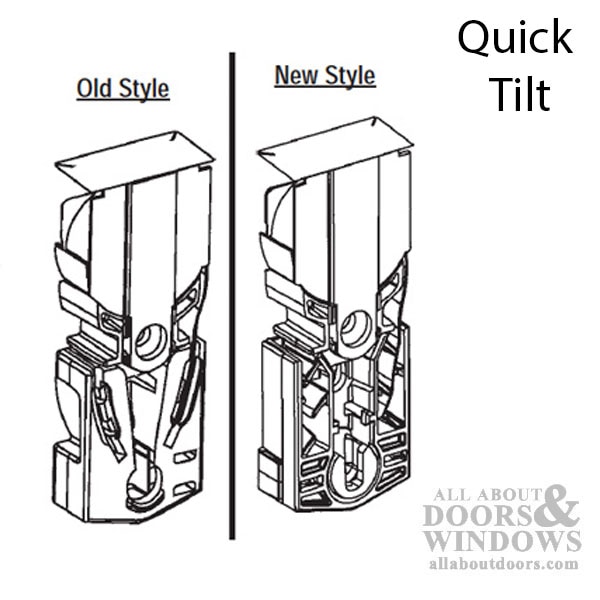

Related Hardware - New Style
534308 - Single Quick Tilt Balance
534309 - Tandem Quick Tilt Balance
534310 - Triple Quick Tilt Balance

Related Pivot Bars - New Style
532105 - 2.9 inch, first hole 1.364
532074 - 2.5 inch, first hole 1.147
532073 - 2.31 inch, L-Shape

NOTE:
532104 & 532105 have same screw hole Measurements 532104 uses # 6 Screw & 532105 uses # 8 Screw
