Anderberg 201SS 4 Bar Window Hinge with Stop Stainless Steel

Anderberg 201SS Standard Duty 4 Bar Casement / Awning Window Hinge

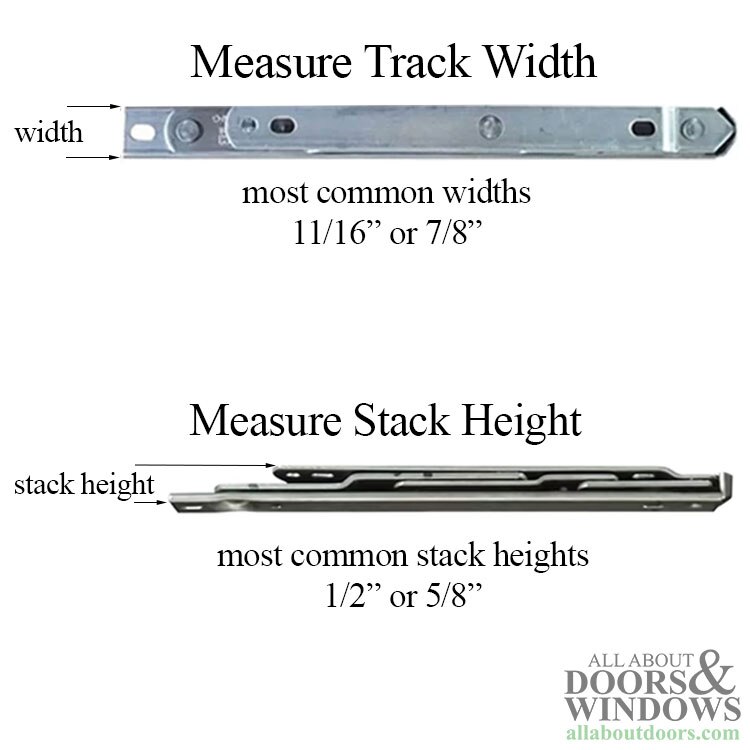

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 11/16" (0.687)
Track Stack Height: 1/2" (0.5)

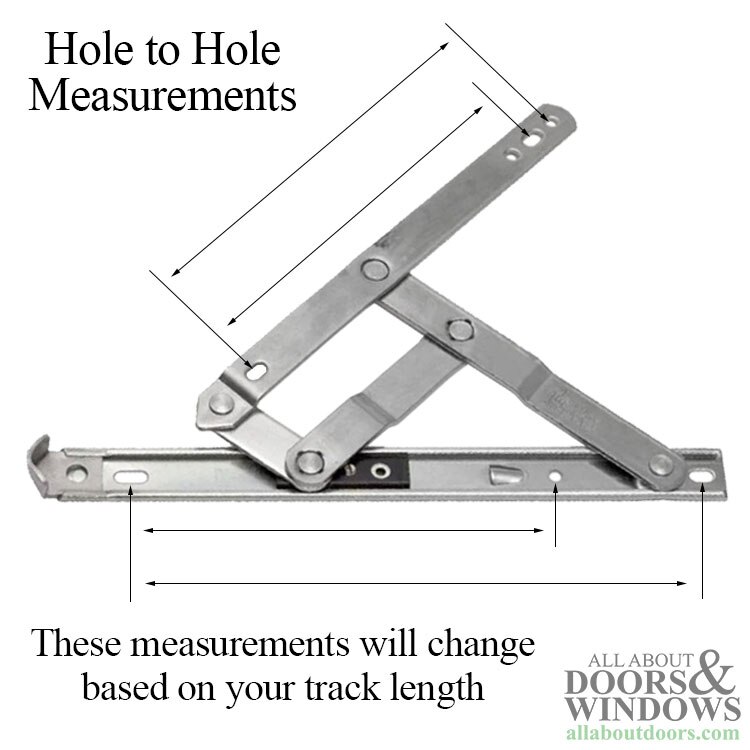

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Track Width: 11/16" (0.687)
Track Stack Height: 1/2" (0.5)
Stop: Yes (stops the window from opening too far to insure proper weight support)
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.

NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.

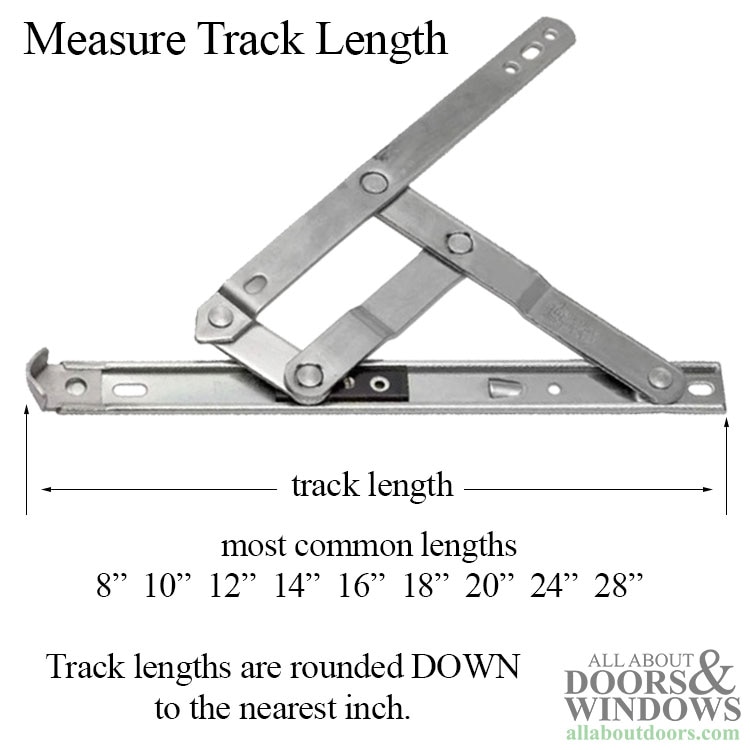

Available Track Lengths: (rounded DOWN nearest to one of the following lengths)
8"
10"
12"
14"
16"
18"
20"
See 301HD-S for 24" and 28" track lengths

IMPORTANT NOTE (new construction projects)
Use the following chart to account for Window Weight and Width
8" Track Length - Supports up to 19 lbs at a width of 16"
10" Track Length - Supports up to 23 lbs at a width of 20"
12" Track Length - Supports up to 28 lbs at a width of 24"
14" Track Length - Supports up to 33 lbs at a width of 28"
16" Track Length - Supports up to 40 lbs at a width of 34"
18" Track Length - Supports up to 40 lbs at a width of 34"
20" Track Length - Supports up to 47 lbs at a width of 34"
