20mm Manual Gear, 60/92 Shootbolt, 1" D/B

Part Number: 2406531
Price: $204.35

Hoppe Manual Shootbolt Version 20mm Faceplate



Faceplate Width: 3/4" (20mm);

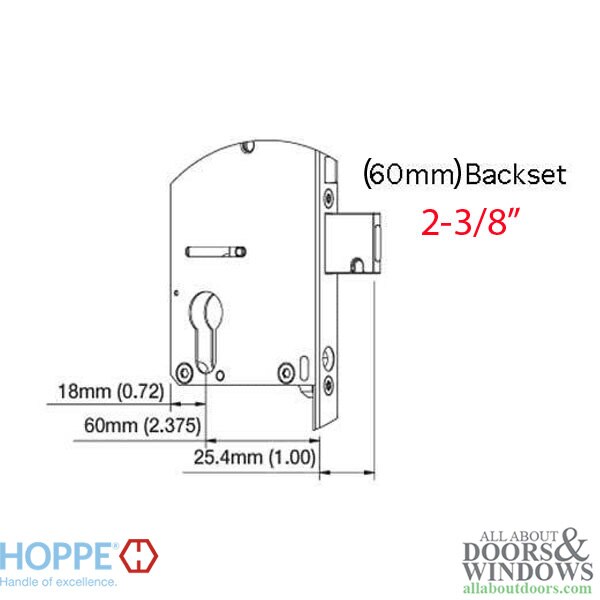

Backset: 2.375" (60mm);

Deadbolt Throw: 1" (25.4mm);

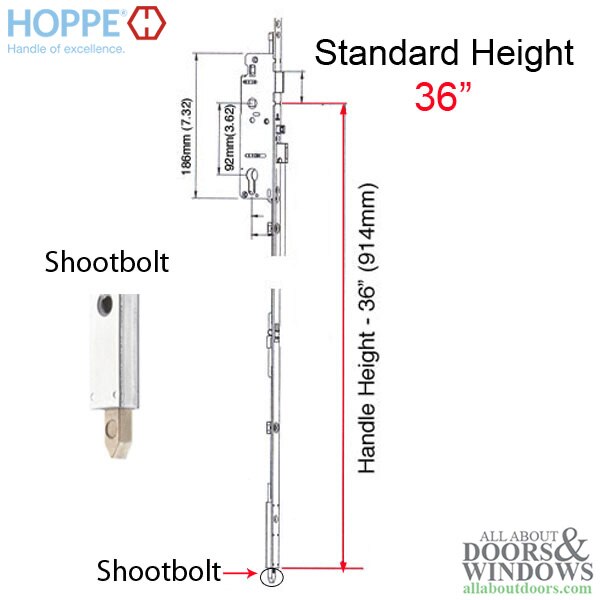

Handle Height: 36" (914mm);

Number of Screws: 6



Includes:

Bottom gear assembly only, additional upper extensions or other components sold separately.



Operation: Manual Function

To lock door, lift handle and then turn thumb turn or Key to extend deadbolt

To Unlock door, Turn Thumbturn or key and depress lever.
