20mm Adjustable 45/92 Shootbolt Replacement, Doors 68"- 81.5" - Stainless Steel
The GU Multipoint lock with 20mm faceplate has been discontinued.
This is a Replacement Option. Please read all information before placing your order.
Replacement Hardware for Discontinued Old Style G-U 20/50/92 Shootbolt 4990319.
The old style GU Shoot bolt MP lock had a 20mm faceplate, 50mm backset and 35" handle height.

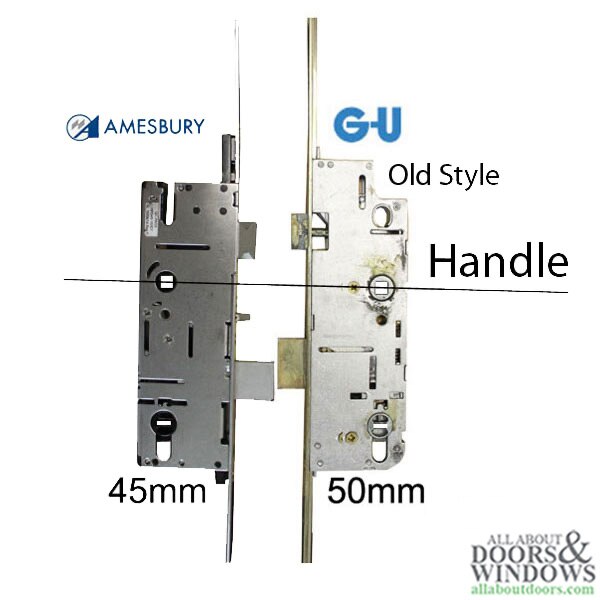

The difference of the 50mm (1.97") and 45mm (1.77") backsets is slightly more than 3/16 inch

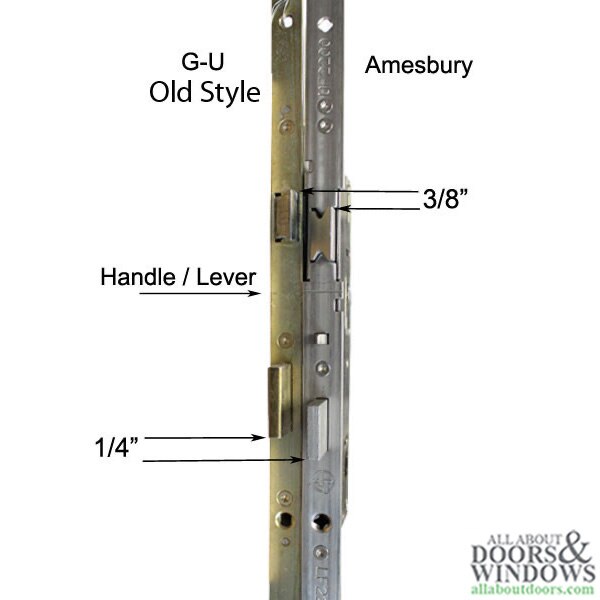

The latch and deadbolt of the new style are in different locations; about 1/4 - 3/8 inch difference.
See additional images for comparisons.
The strike will most likely not work as positioned. However, you have several options:
1. Best recommendation - Enlarge holes in strike to accommodate the new latch and deadbolt locations.
2. Move the new lock up 1/2” - 7/16” - Allows the strike to remain in place and bottom shoot bolt is adjustable, so that is not an issue.
This would change the handle height to 35-1/2” and may expose the screw holes from the old trim. Holes can be covered by using the 2” x 12” trim plate (read below about for handle set replacement options).
3. Least recommended - Move strike - Not highly suggested since this leaves marks on jamb and is a problem for vinyl doors.
Amesbury P2000 Replacement Specifications:
Lock Case: P2000, American Cylinder version
Backset: 1-3/4 inch (45mm)
Faceplate: 25/32 Inch (20mm)
Faceplate color: Stainless Steel
Handle Height: Adjustable to fit 32" to 40" when used with bottom shoot bolt tip
Handle Location: Key Below Lever
Handle-Cylinder PZ: 3-5/8 inches (92mm)
Deadbolt throw: 1 inch (25.4mm)
Door Panel Height: Fits doors from 68" - 81.5"
To Change Handing / Latch Reversal:
1. Lift Lever to extend deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door

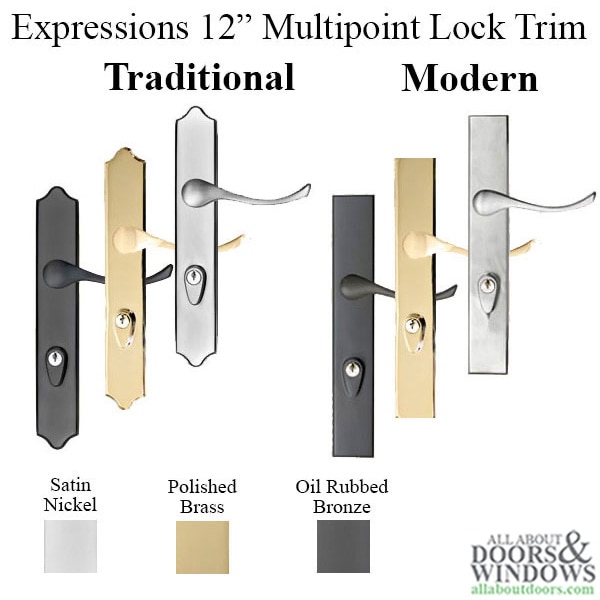

Optional Multipoint Lock Hardware Trim - Not included with Lock:
395007 - Traditional Arch Top, Keyed 2 x 12 plate
395009 - Modern Square top , Keyed 2 x 12 plate
Double doors could be a problem for this trim, no thumb turn on passive side.
Related Door Hardware with 35" handle Height:
Kit # 499060019 - 20-2294 20mm Middle SB Extension, Doors 68 - 81-1/2"
Kit # 499060020 - 20-2295 20mm Middle SB Extension, Doors 81 - 94.5"
Kit # 499060021 - 20-2296 20mm Middle SB Extension, Doors 94 - 107.5"
Contact office if you have double French Doors.
