16mm P2000 Active Lower 45mm Backset Shootbolt

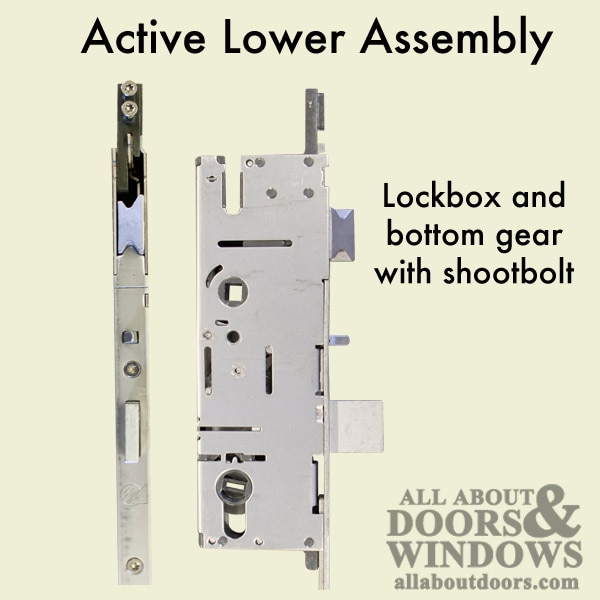

16mm P2000 Active Lower 45/92 Shootbolt Gear

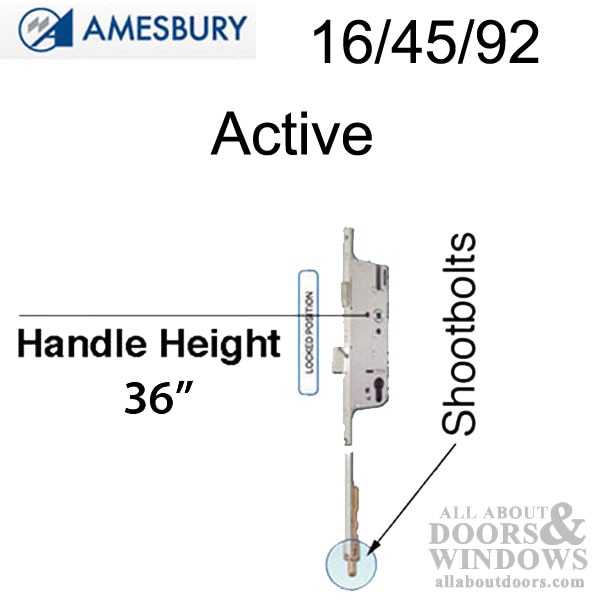

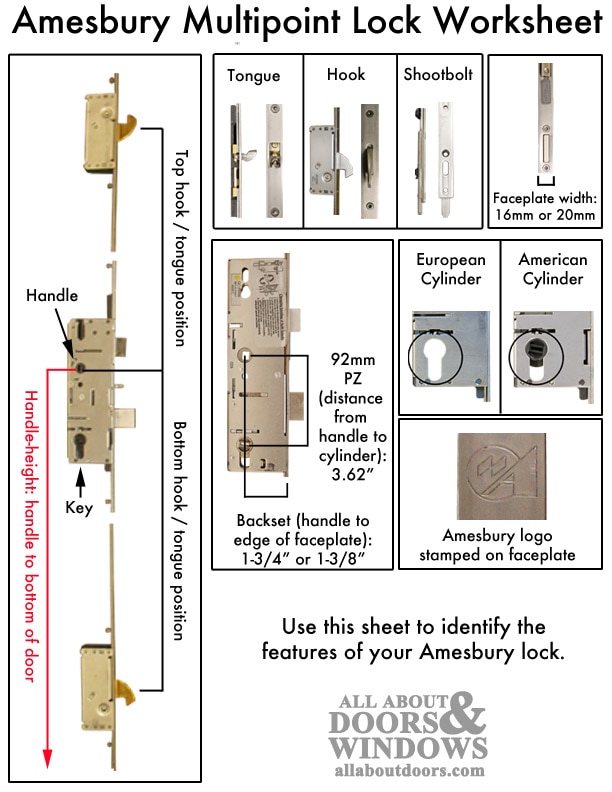

Handle Height 36"

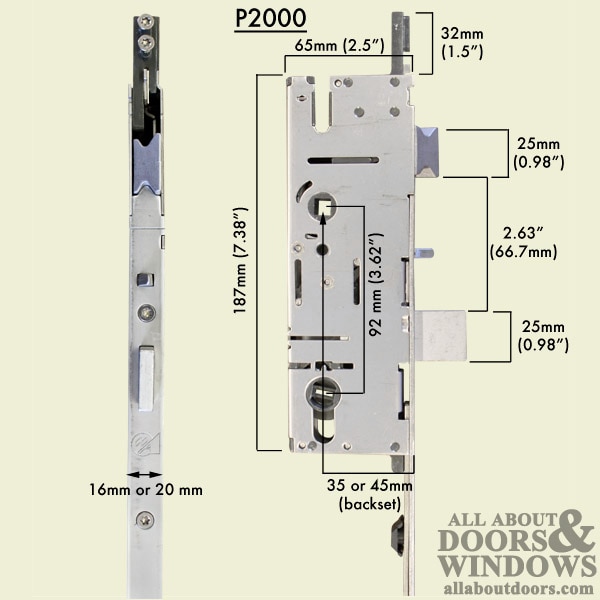

Backset: 45mm(1.77inches)
Used mostly as a 3 point locking system.
Note: If used with appropriate upper extension and shoot tip, can fit doors from 69 inches to 121.5 inches.
Markings: Front LF2310 - Back LD2310
RELATED PARTS
NOTE: When used with gears 8135-2310-81LA OR 8145-2310-81-LA and shootbolt 5670-81 will fit doors with: Panel Length: 69 inch Minimum, 82-1/2 Inch Maximum with 36 inch Handle Height (HH)
Bottom Gear with Shootbolt - 8145-2310-81-LA
Top Shootbolt - 5670-81
Middle Ext. - 69" to 82.5" door - 16-2094-UA
82" to 95.5" door - 16-2095-UA
95" to 108.5" door - 16-2096-UA
108" to 121.5" door - 16-2097-UA
To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door
Handle Height 36"
Backset: 45mm(1.77inches)
Used mostly as a 3 point locking system.
Note: If used with appropriate upper extension and shoot tip, can fit doors from 69 inches to 121.5 inches.
Markings: Front LF2310 - Back LD2310
RELATED PARTS
NOTE: When used with gears 8135-2310-81LA OR 8145-2310-81-LA and shootbolt 5670-81 will fit doors with: Panel Length: 69 inch Minimum, 82-1/2 Inch Maximum with 36 inch Handle Height (HH)
Bottom Gear with Shootbolt - 8145-2310-81-LA
Top Shootbolt - 5670-81
Middle Ext. - 69" to 82.5" door - 16-2094-UA
82" to 95.5" door - 16-2095-UA
95" to 108.5" door - 16-2096-UA
108" to 121.5" door - 16-2097-UA
To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door
