16mm P2000 Active Upper Assembly, Doors 108.5 - 121

Part Number: 16-2097
Price:
$134.32

16mm P2000 Upper Active Assembly, Doors 108.5 - 121

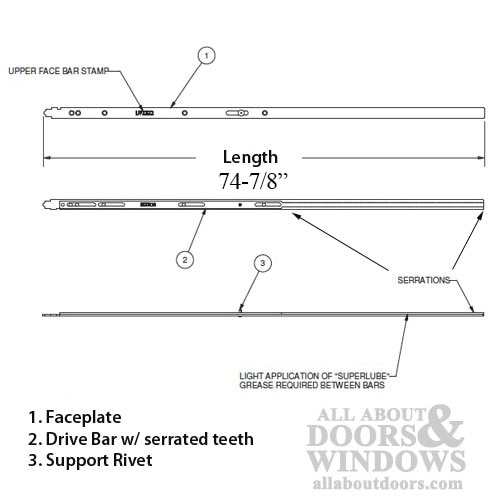

Length: 74-7/8"


Used on active doors with 3-point shootbolt system

CAN BE USED WITH SHOOTBOLT AND RHINO HOOK EXTENSION

Shootbolt Teeth: Yes, croppable

NOTE: When used with gears 8135-2310-81LA OR 8145-2310-81-LA and shootbolt 5670-81 will fit doors with:
Panel Length: 108-1/2 Inch 121.5" Maximum with 36 inch Handle Height (HH)
