16mm Automatic 2 Roller Gear, 35/92, Roller at 29.53 Inch, 37 Inch Handle Height
SKU: 2771546
$162.34 / Each
Details
Details
Hoppe Automatic Gear 35/92, 37" Handle Height, Roller at 29.53" Bottom Assembly

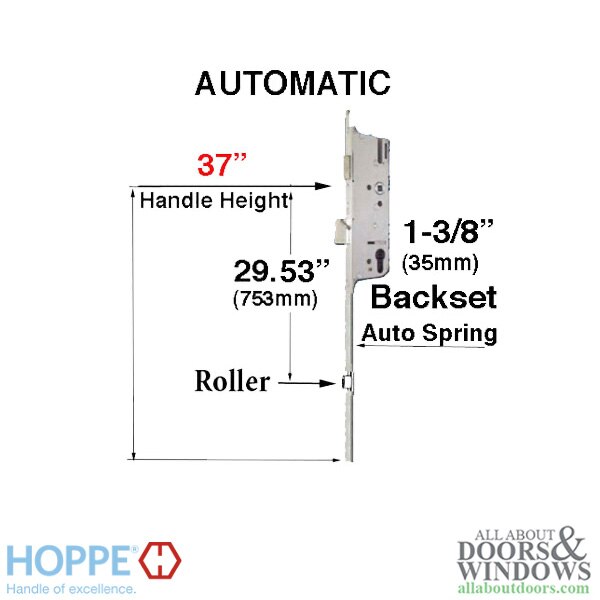

The automatic version has a roller about 6-1/2 inches above the handle. When the door closes the roller triggers a spring and the rollers engage when the door is closed. This is the bottom assembly only, this will not work with the old style Gold Color lock
Specifications:

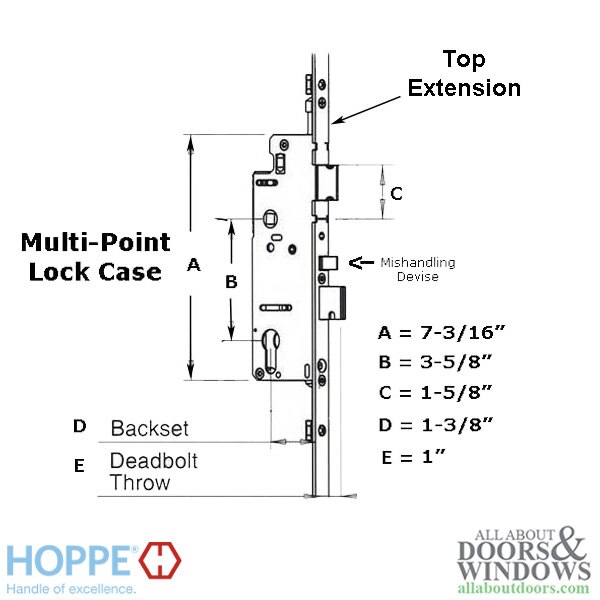

- Faceplate Width: 5/8 Inches (16mm)
- Backset: 1-3/8 Inches
- Handle Height: 37 Inches
- Bottom Roller Position: 29-1/2 Inches
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
