Hoppe Mortise Lock, 16mm 70/92 Single Point Lock (SPL) 1" Deadbolt, new style Rotation Limiter
IMPORTANT NOTICE: This Single Point Mortise Lock can NOT be used to repair a multipoint lock
There are no interchangeable parts from this lock that can be used on other locks.
Hoppe manual single point mortise lock (SPL)
Used by Caradco, Norco, WeatherShield, Bilt Best, Shelter and many others, also replaces FUHR Single point locks.
16mm Hoppe 70/92 Single Point Lock (SPL) 1" Deadbolt, new style with locking handle

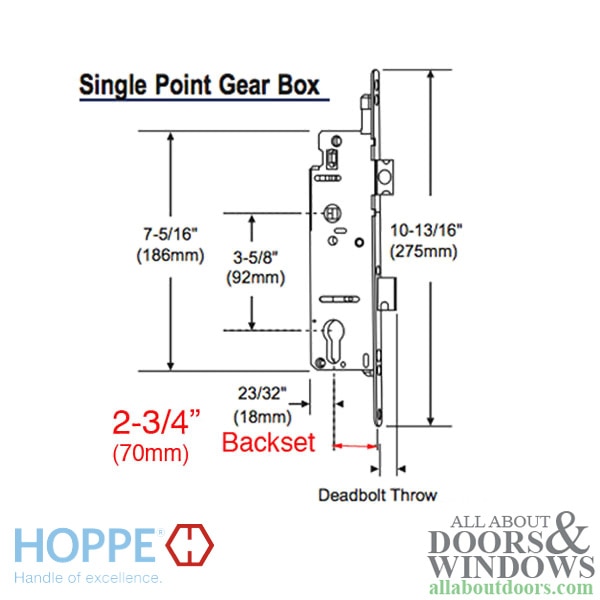

Deadbolt Throw: 1 inch (25 mm)
Face Plate Width: 5/8 inch (16 mm)
Face Plate Length: 10-13/16 inches
Faceplate Screw Holes: 10-1/8 inches
Faceplate Material: Stainless Steel
Backset: 2-3/4 inches (70 mm) - distance from edge of face plate to center of lock handle

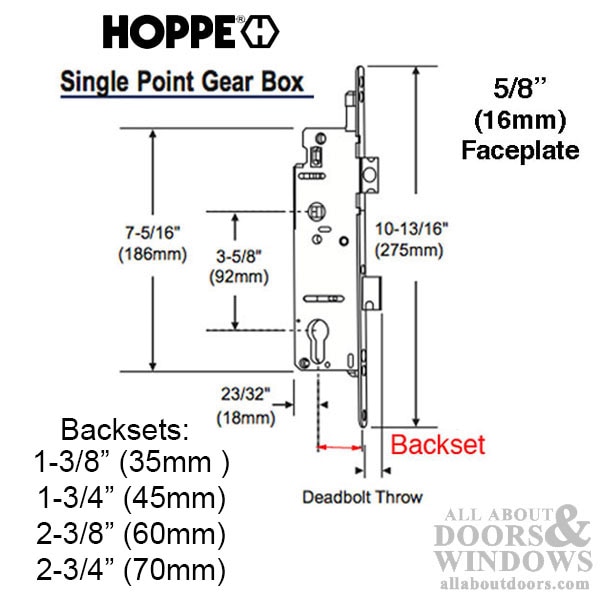

All Current Model Single Point Locks from HOPPE w/ Rotation Limiter
(Lever is fixed and does not move after door is locked)
11517463 - 35mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517475 - 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517487 - 45mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517499 - 45mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517505 - 60mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517517 (this listing) - 70mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517529 - 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with square ends

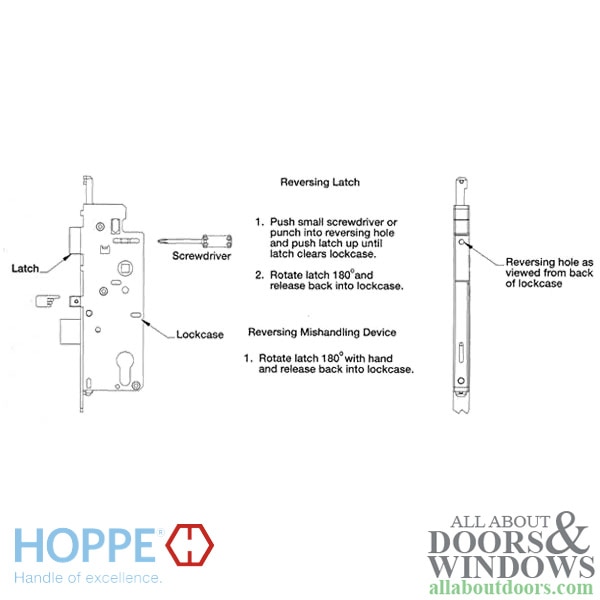

(Please contact office if needing one of the locks not currently linked to our site) Latch handing may be changed by pulling out or inserting small screwdriver into small hole in back of latch and pushing forward, twist latch and release. See linked article below.
HOPPE Screws for Installation:
8785695 - Screw 1-3/8" ( 35mm ) 8mm Head - Stainless Steel
8785687 - Screws, 3/4" (20mm ) 8mm Head - Stainless Steel
Helpful Articles
How To Drill Out A HOPPE Mortise Lock If The Dead Bolt Doesn't Retract
How to Change the Handing (Reverse the Slope of the Latch) on a HOPPE Lock
