Multipoint Trim, 2 x 10 inch, American, 6 inch handle spacing, Sandcast Bronze, Choose Options
Replacement multi-point lock handle set trim in sandcast bronze.
This hardware fits doors with standard 1-11/16 inch crossbore.
Please note that these handle sets are special order and cannot be returned or exchanged.
Some handle sets may take 6 to 8 weeks for delivery.
Carefully check your measurements to reduce chances of error.
If your door has a different screw hole pattern, a new pattern may still work by drilling new screw holes.
Be sure the lock body in the door will not be in the direct line of screws.
Escutcheon Plate Style: Sandcast
Escutcheon Plate Shape: Square Ends
Escutcheon Plate Height: 10 inches
Escutcheon Plate Width: 2 inches
Screw Hole Center: 8-1/2 inches

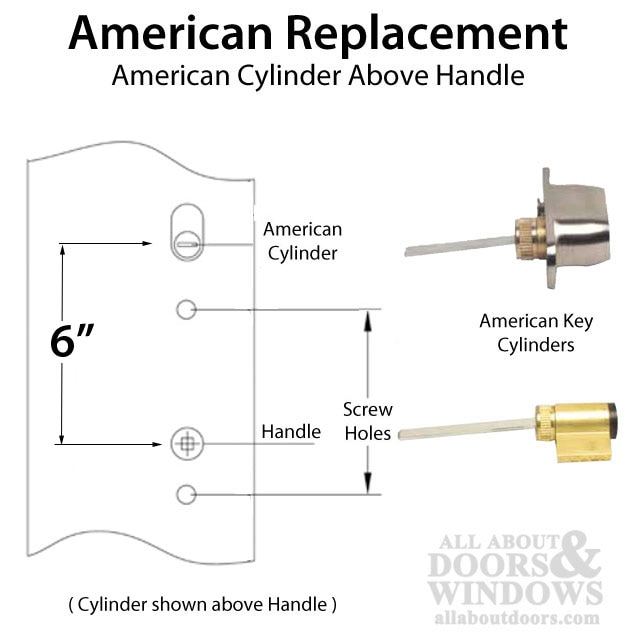

Cylinder Version: American
Keyway: Schlage 5 Pin SC1
Key/Thumb Turn Position: Above Handle
Material: Bronze
Handle PZ: 6 inches
Please choose the following drop-down options:
A. Function:
(1) Active - Keyed American Cylinder with inside Thumb turn
(3) Inactive - Non-keyed with inside Thumb turn
(5) Dummy Pair - Both Fixed, Ridged Handles, No Thumb turn

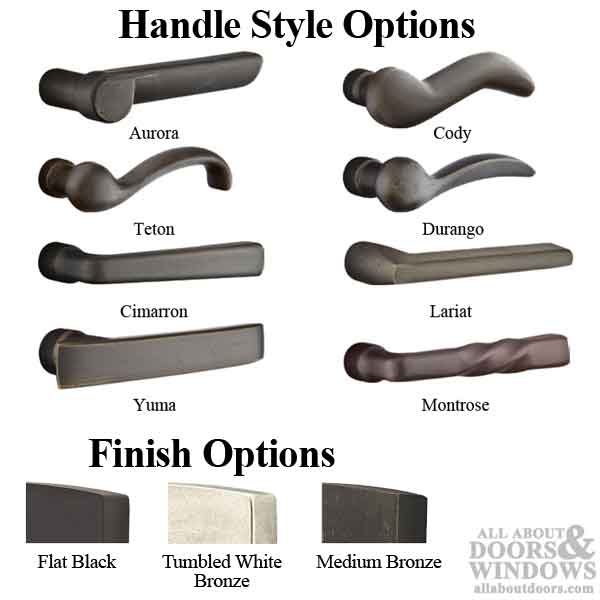

B. Handle/Lever Design:
See second image.

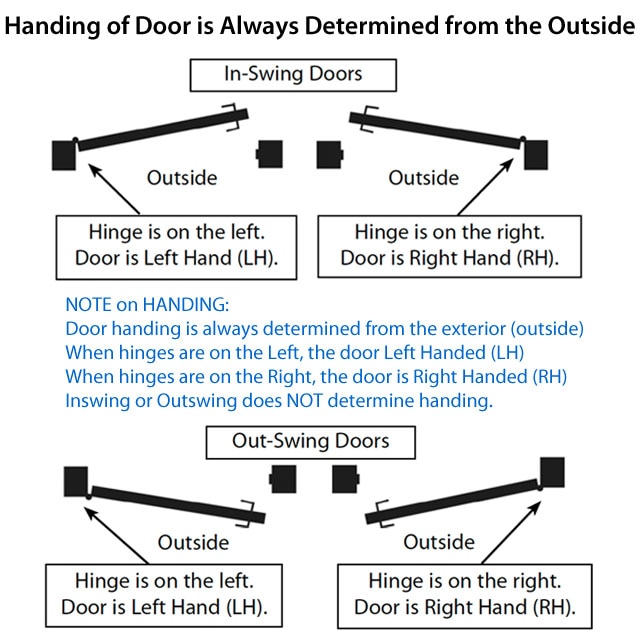

C. Handing: (viewed form outside hinge location)
LH - Left Hinge
RH - Right Hinge
D. Color/Finish:
Tumbled White Bronze (TWB)
Flat Black (FB)
Medium Bronze (MB)
Replaces American version multi-point lock hardware for the following companies:
W&F Manufacturing (AKA Trillenium)
Peachtree Citadel IPD multi-point lock
Pella (Only doors with optional 1-11/16 inch crossbore, will not work on 2-1/8 inch hole.)
Priced and sold as a package.
