Weathershield Operator, Offset Link, Split Arm, LH Gold

This Style of Operator has been discontinued and is replaced with the the Ellipse Style with contoured edges
For a new Ellipse style replacement please see 55078

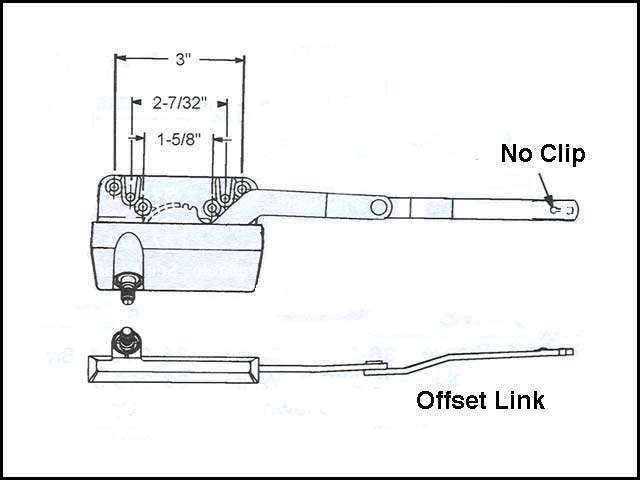

Used by Weathershield casement Roto crank Operator, 7/16 Offset link, Split Arm - Goldtone finish
Original link was mounted on bottom of main arm and Curved upwards
replacement can be a Straight arm Link mounted on top and is a substitute for the offset link mounted on bottom.
Offset Link: 4.5 inch # 30905 Mounted on bottom of main arm. ( Measured from center of rivet to center hole)
Link Length: 5 inches overall
Truth Part Numbers on some crank mechanisms: Main Body #45035, Main arm # 40351 RH / # 40352 LH Link # 30905, truth Mounting Bracket # 40448
Handle is NOT included.

Related Parts:
55310 Handle - Gold
55083 - Left hand Replacement Operator
55084 - Right hand Replacement Operator
