Truth Ellipse split arm Dyad operator, 7/16" offset Link, Right Hand

This item has been discontinued and is limited to existing inventory.

Truth split arm casement operator used by Hurd, Caradco and others

The new style Ellipse has smoothed contoured edges for an updated look.

Application: Sill mounted

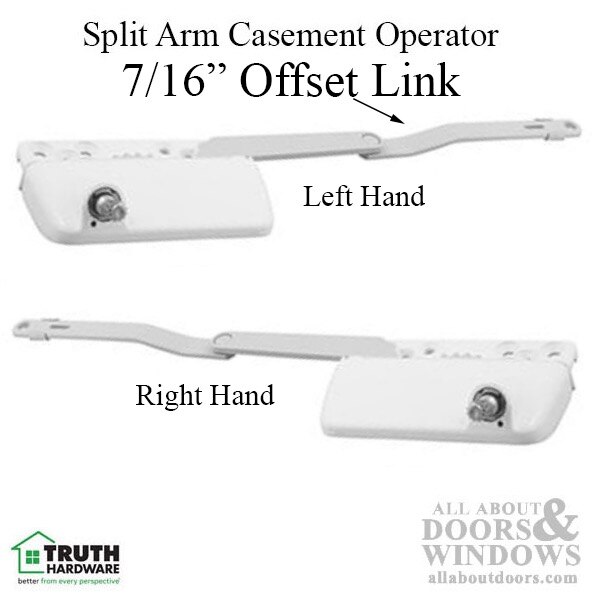

Handed: Yes Left or Right as shown

Color Options: White , Gold or Bronze

Link Mount: Under Main Arm

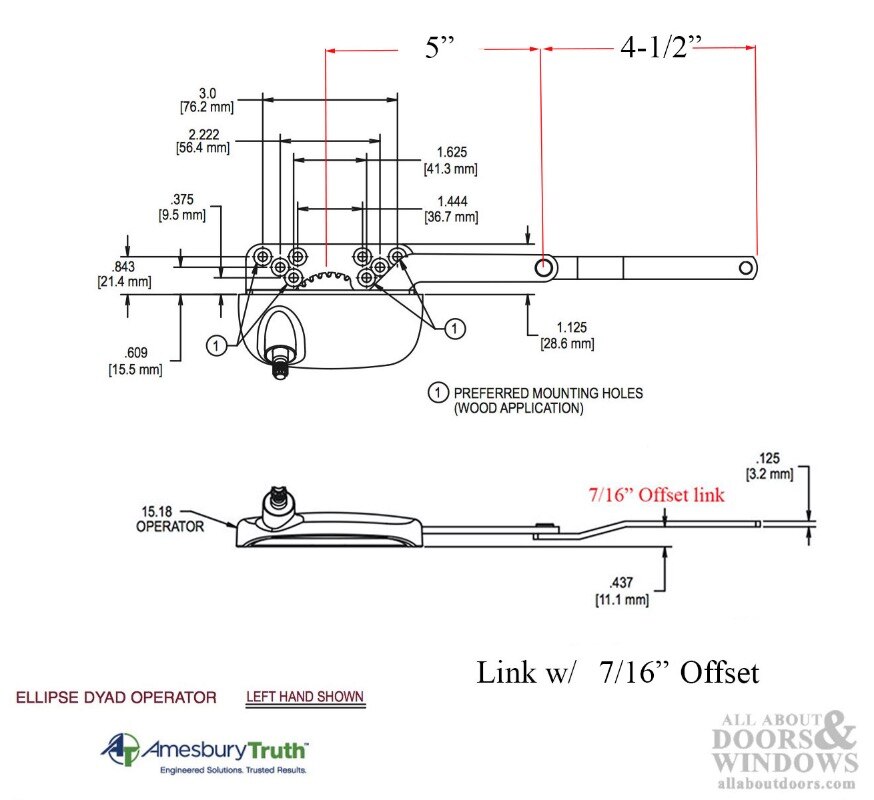

Link Shape: 7/16 inch Offset up

Note 1:

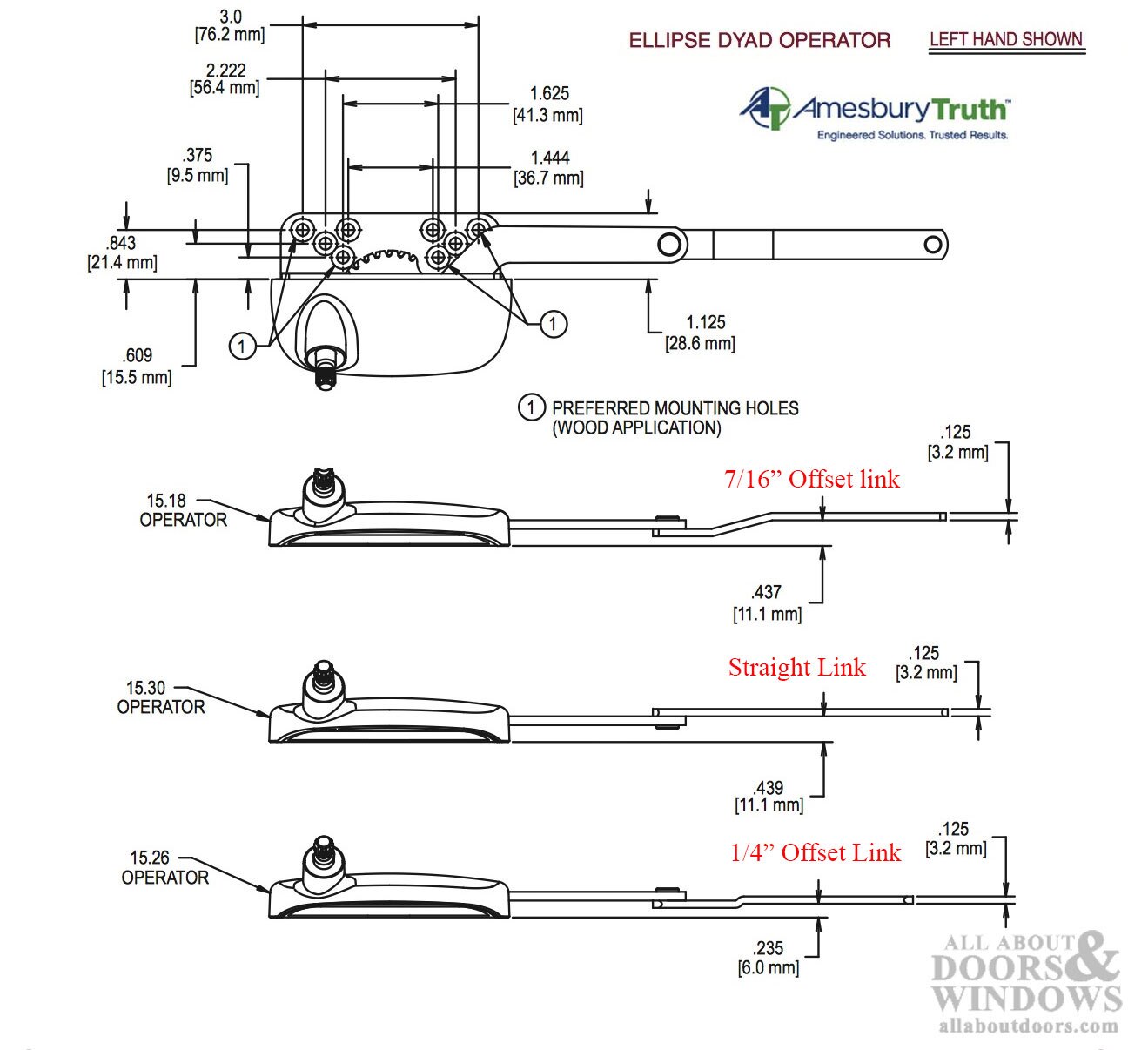

This operator comes with 3 different links on end of main arm.

1. Straight Link mounted on top of main arm.

2. 1/4 inch offset Link mounted below main arm

3. 7/16 inch offset Link mounted below main arm

Note 2:

The lengths and shape of links vary. Please compare all measurements
