Weathershield Manual Version Lock Rollers at 29.53" & 35.82"

Part Number: 49902001-KIT
Price: $236.95

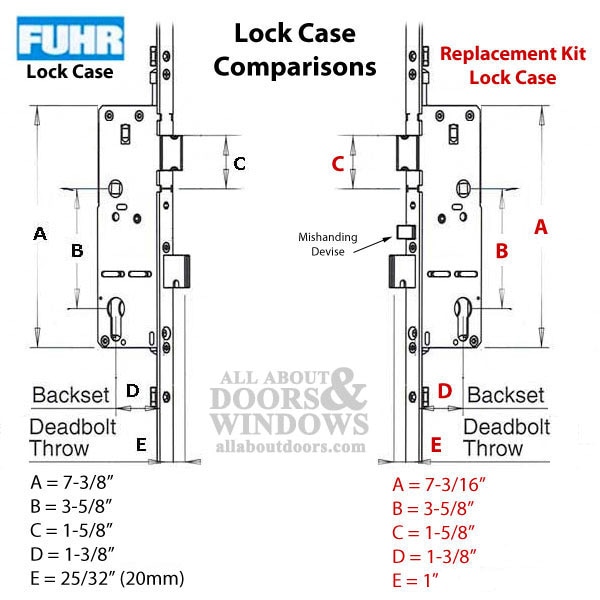

Weathershield Replacement for Old style FUHR multipoint lock
This will replace Manual and Automatic versions used on Weather Shield Doors
Original Fuhr / Weathershield door / lock height was 78-1/2 inches
The Replacement lock will need to be cut to length for your door

Manufacturer: Hoppe HLS9000 Roller version Replacement Kit
Locking Type: Manual (lift handle to engage rollers)
Faceplate Width: 5/8 inch (16mm)

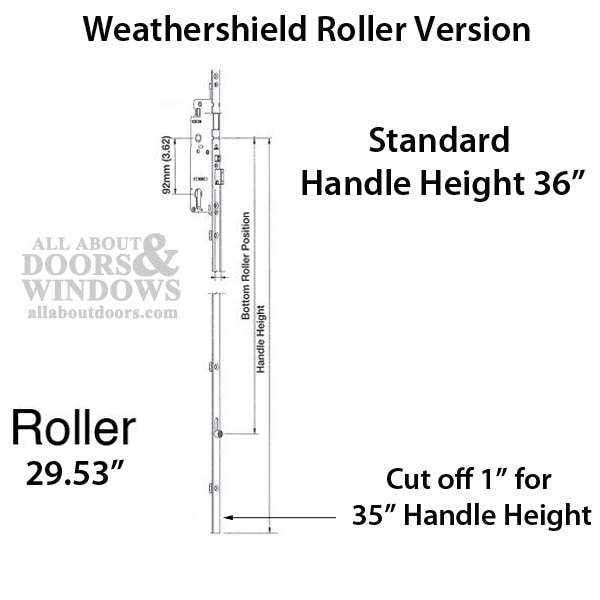

Bottom Roller Position: 29.53 inches (750mm)
Top Roller Position: 35.82 inches (910mm)
Fits Overall Length: up to 79-1/4 inches ( 2013mm) with 36 inch handle Height

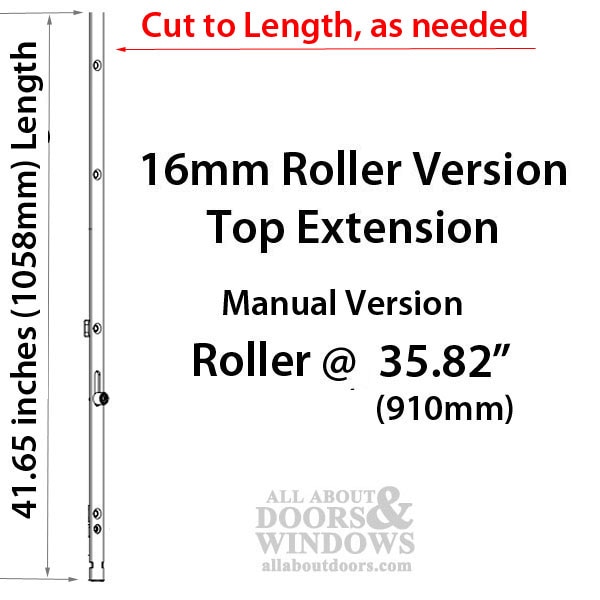

Top Extension Length of 41.65 inches (1058mm)

Maximum cut off Top: 2.38 inches (60mm)
Maximum cut off Bottom: 2.38 inches (60mm)
Number of installation screws: 11

Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
