Auxiliary Foot Bolt, Truth Triangular Patio Door, .56" Short - Choose Color
Truth triangular spring action foot bolt for patio door in 2 colors.
This foot bolt has four screw holes, plastic triangular base and spring action 5/16 inch diameter bolt.
The bolt protrudes 9/16 inch when extended in locked position.
Foot bolt is used with one of 3 strikes that are not included but can be found below in Related Parts.

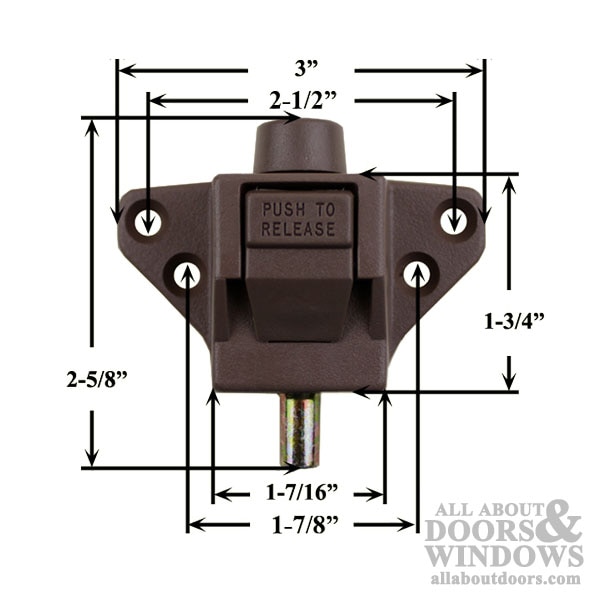

Body Height:1-3/4 Inch
Body Width: 3 Inch
Overall Height: 2-5/8 Inch
Bolt Diameter: 5/16 Inch
Bolt Extension: 9/16 Inch
Hole Center: 1-7/8 Inch (bottom holes), 2-1/8 inch (top holes)
Hole Pattern: 4 Hole
Finish: 2 Colors

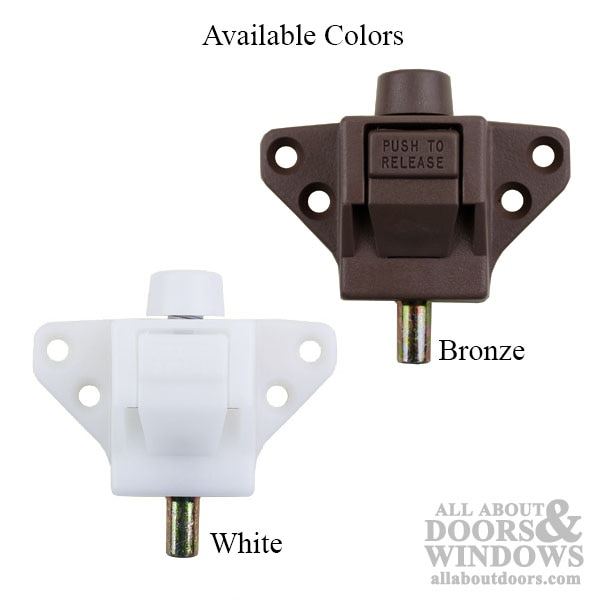

Available Colors:
White
Bronze
Contents: 1 Foot Bolt
Priced and sold each.Ê
Note: Truth foot bolts are available with standard .56 inch and long .79 inch bolt
15301 - Triangular Base, .56 inch bolt
15302 - Rectangular Base, .56 inch bolt
15307 - Rectangular Base, .79 inch bolt
15303 - Strike Plate, 2 hole Flat
15304 - Strike Plate, 1 Hole Offset
15305 - Strike Plate, 2 Hole Angled
This foot bolt has four screw holes, plastic triangular base and spring action 5/16 inch diameter bolt.
The bolt protrudes 9/16 inch when extended in locked position.
Foot bolt is used with one of 3 strikes that are not included but can be found below in Related Parts.
Body Height:1-3/4 Inch
Body Width: 3 Inch
Overall Height: 2-5/8 Inch
Bolt Diameter: 5/16 Inch
Bolt Extension: 9/16 Inch
Hole Center: 1-7/8 Inch (bottom holes), 2-1/8 inch (top holes)
Hole Pattern: 4 Hole
Finish: 2 Colors
Available Colors:
White
Bronze
Contents: 1 Foot Bolt
Priced and sold each.Ê
Note: Truth foot bolts are available with standard .56 inch and long .79 inch bolt
15301 - Triangular Base, .56 inch bolt
15302 - Rectangular Base, .56 inch bolt
15307 - Rectangular Base, .79 inch bolt
15303 - Strike Plate, 2 hole Flat
15304 - Strike Plate, 1 Hole Offset
15305 - Strike Plate, 2 Hole Angled
Truth part Number:
41.10 Triangular base, Short Throw , 41.12 Triangular base, Long Throw
Strybuc Part Number:
Triangular 16-208-1 Bronze, 16-208-3 White
41.10 Triangular base, Short Throw , 41.12 Triangular base, Long Throw
Strybuc Part Number:
Triangular 16-208-1 Bronze, 16-208-3 White
