Truth Sentry, 16mm Active Shootbolt Gear, 45/92

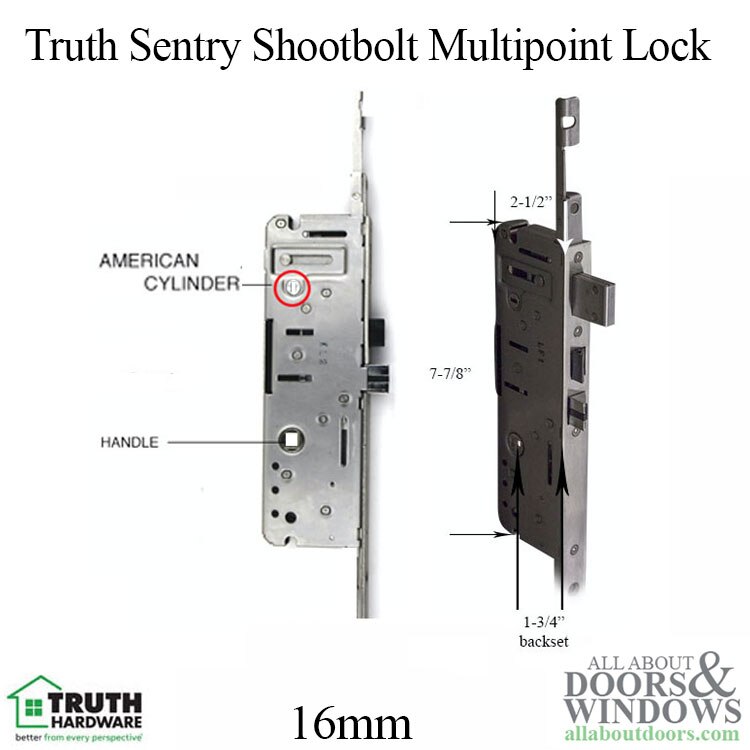

Truth Sentry, 16mm Active Shootbolt Multipoint Lock Gear
Truth BAR, L ACT 16FP 45M SB 41.30
Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/4" (45mm)
Handle Height: 36 inch ( 914.4mm)
Lower Shootbolt Locking Point
Key Position: Above Lever
Handed: Yes, Reversible by pulling latch out and rotating.
Truth Sentry Operation: Change Handing
Lock: Springlatch - pulls out and Spins
Push in the mis-handing device to lock. Mis-handing Latch - flips to other side (push)
Lift handle and the hooks extend
Turn Thumbturn or key to throw deadbolt
Open:
Retract Deadbolt with Key or Thumb Turn
Push down on lever
