Truth Door Handle For Sliding Glass Patio Doors Semi Active Non Keyed Handlset

Amesbury Truth 40.90 Series Round Top Semi Active, Non Keyed Patio Sliding Door Handleset with Thumb Latch
Fits centered and off centered lock positions where doors are drilled for 3 or 4 holes.
Non-Keyed has inside thumb latch to lock and unlock door.

Application: Sliding Doors
Plate Style: Round Top

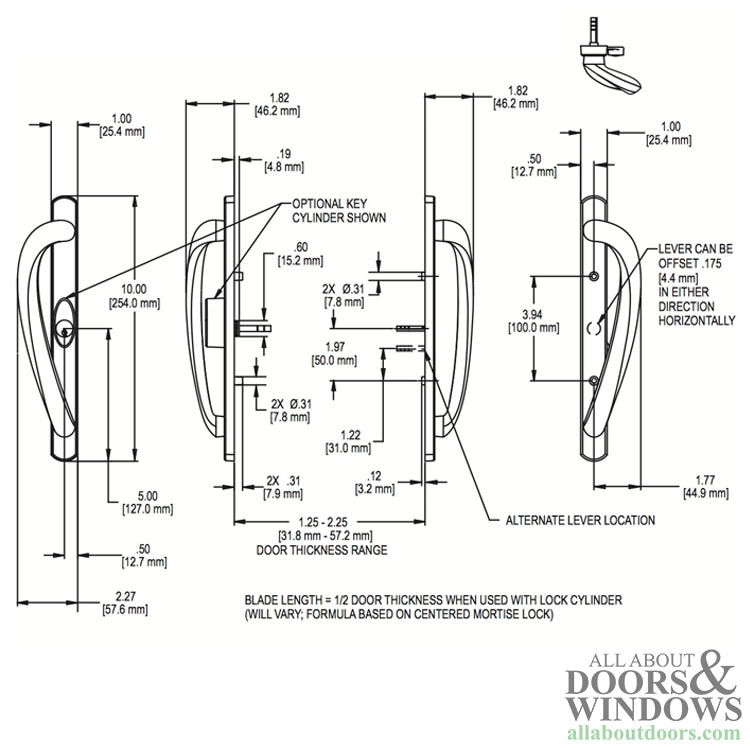

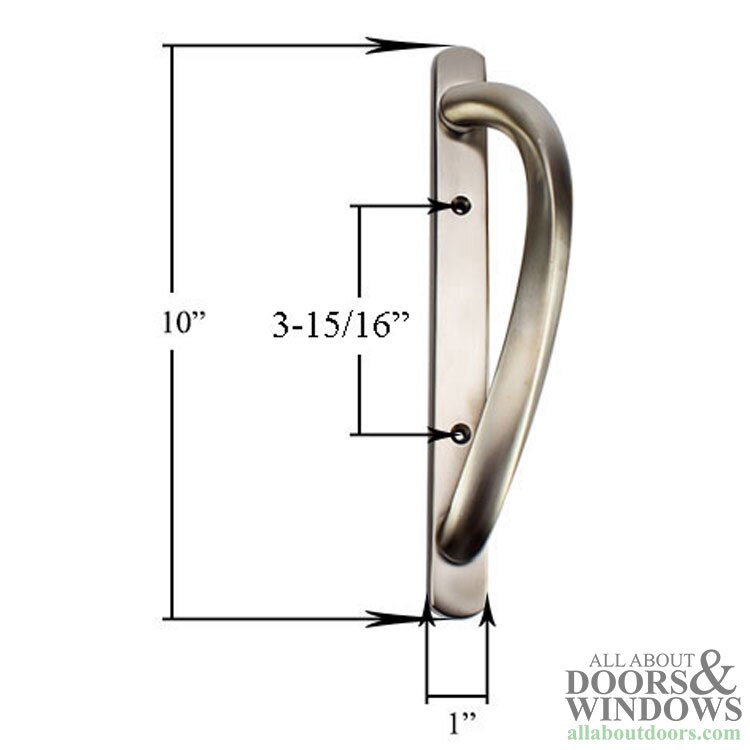

Plate Width: 1 inch (25.4mm)
Plate Length: 10 inch ( 254mm)
Screw Hole Spacing: 3-15/16 inch (100mm)
Installation Mounting Screws: Includes 6 Phillips Oval Head Machine Screws
8-32 x 1-3/4" fit doors 1-3/16 to 1-9/16"
8-32 x 2-1/8" fit doors 1-9/16 to 1-15/16"
8-32 x 2-1/2" fit doors 1-15/16 to 2-5/16"

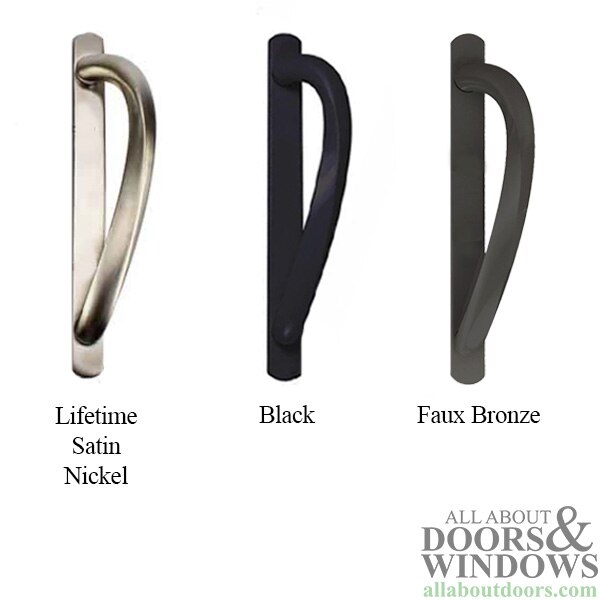

Color / Finish Options:
White
Black
Lifetime Satin Nickel
Faux Bronze
Other Finishes, Special Order

Handle Set Functions:
147100: Active, Non-Keyed with inside thumb latch (adjustable positions)
147101: Active, Keyed with a thumb turn (centered key position)
147102: Active, Keyed with a thumb turn (off centered key position)
147103: Dummy, No key, No thumb turn (fixed handles)
