Truth awning window pull lever operator.
Replaces lever type awning window operators by Truth Hardware.
Operator is considered single pull because it has one attachment point on the arm.
Awning operators are not handed.

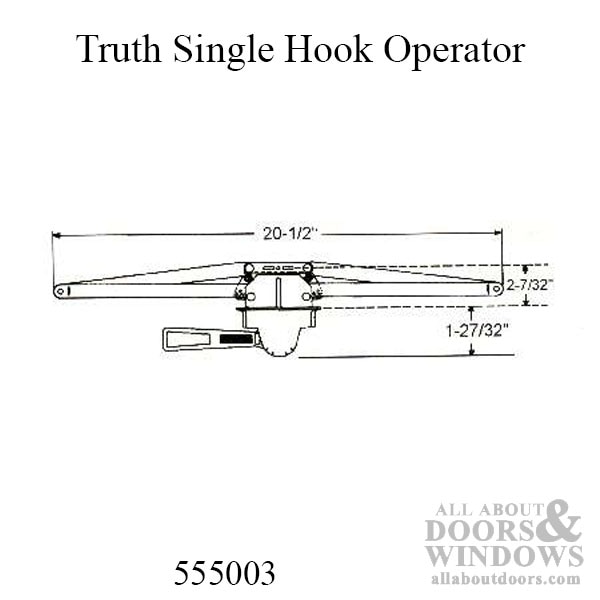

The tip to tip, arms in the widest position: 20.5 inch
Base plate: 4 inch x 4 inch
This product has the F escutcheon (2-1/4 inch deep).
Housing from Interior edge to wood stop is UNDER 2 INCHES ( C-Plate = 1-27/32 ).
Gold - No longer available, replace with white or bronze
Matching Truth screws (2 per operator) Not included.
Sash hook (1 per operator) Not included.
Priced and sold each.
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 36-158-1
Prime-Line Products: TH 23070, TH 23072
Truth: 10.10.03.213, 10.10.29.213, 10.10.32.213
