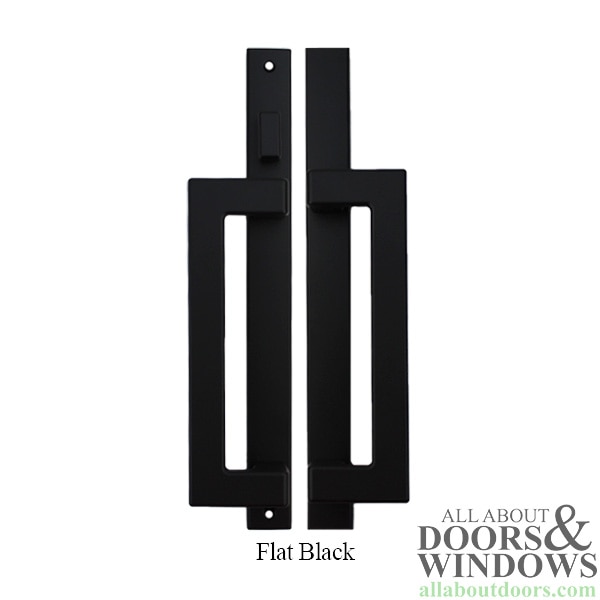

Amesbury Truth Door Handle For Sliding Patio Doors Semi Active Non Keyed Door Handle

Truth Modern/Contemporary Signature Series

Semi-Active/Non-Keyed Sliding Patio Glass Door Handle

Semi-active handle sets are typically installed on four-panel sliding doors or in applications where the keyed lock is a separate part independent of the handle.

This is a semi-active handle with an exterior fixed “dummy” pull, and an interior thumbturn.

• Handle Style: Contemporary
• Application: Semi-Active, Non-Keyed with Interior Thumbturn
• Door Types: Residential & Commercial Sliding Doors in Aluminum, Wood, Vinyl, or Composite
• Door/Stile Thickness Range: 1.25 to 2.25 inches (32-57mm) 1-1/4" to 2-1/4"
• Escutcheon Plate Width: 1.25 inches (31.8mm) 1-1/4"

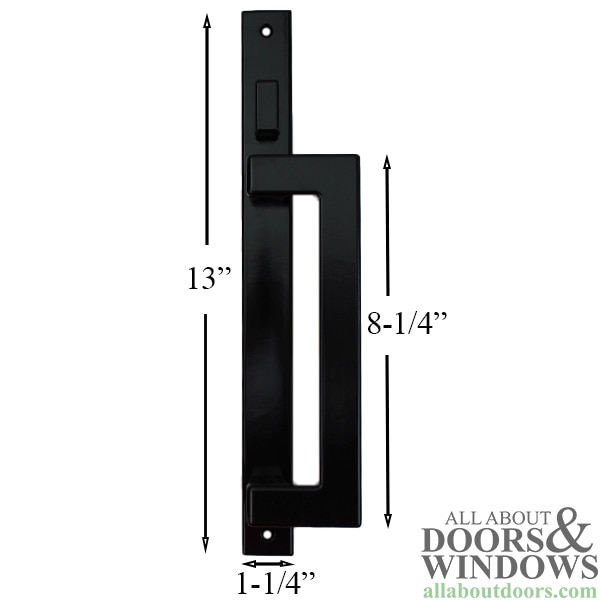

• Escutcheon Plate Length: 13.00 inches (330.2mm) 13"
• Screw Hole Distance (Center-to-Center): 11.92 inches (302.8mm) 11-15/16"
• Thumbturn to Top Screw: 1.97 inches (50mm) 1-31/32"
• Thumbturn to Top of Escutcheon: 2.5 inches (63.5) 2-1/2"
• Mounting Screws: 2 × #8-32 Phillips oval head machine screws (assorted lengths)
• Handle Projection: 1.87 inches (47.4mm) 1-7/8"
• Key Cylinder: None included
• Material: Zinc Substrate
