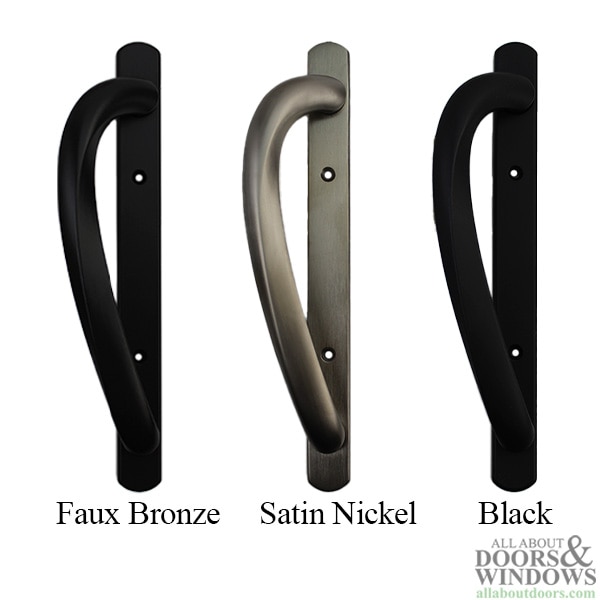

Truth Keyed Centered Cylinder, Curved Top Patio Door Handles - Choose Color

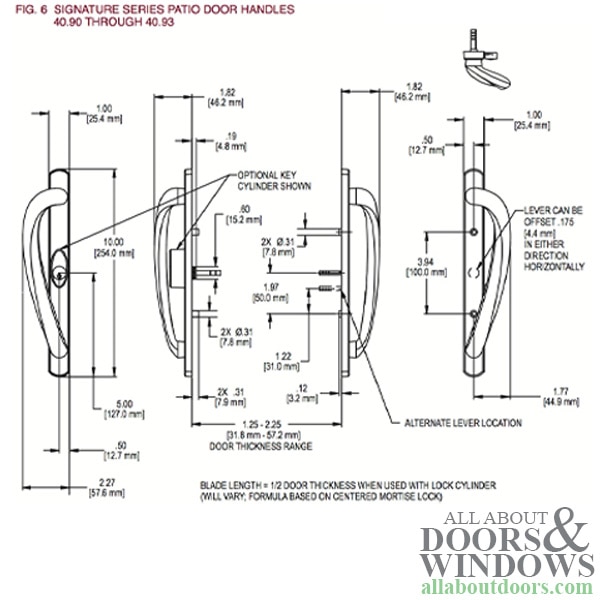

Signature Series Patio Door Handles PD HDL SET 1" ARC CTR CYL

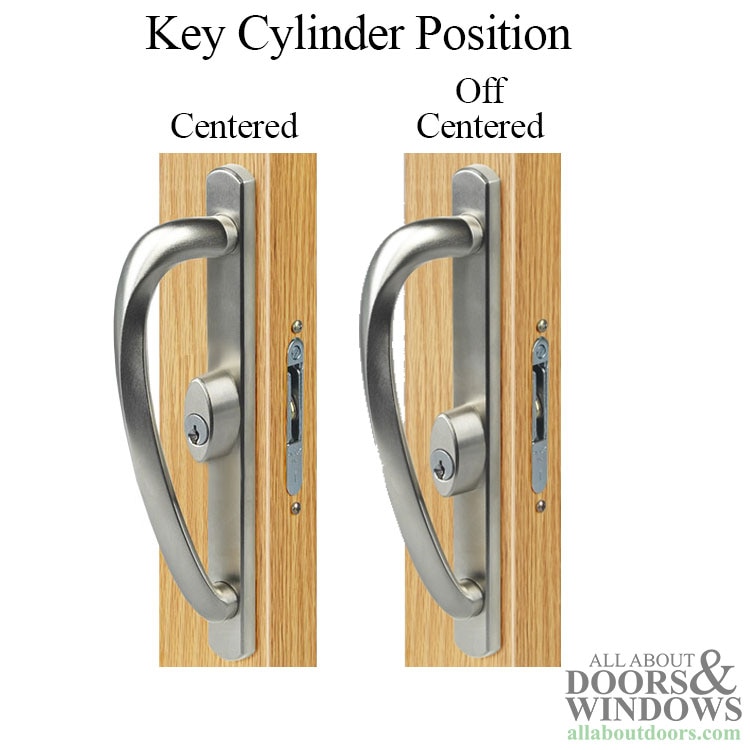

Function: Keyed, Center Position
This style of handle has 4 functions:
1. Non-Keyed
2. Keyed, with center position
3. Keyed, with off center position
4. Dummy

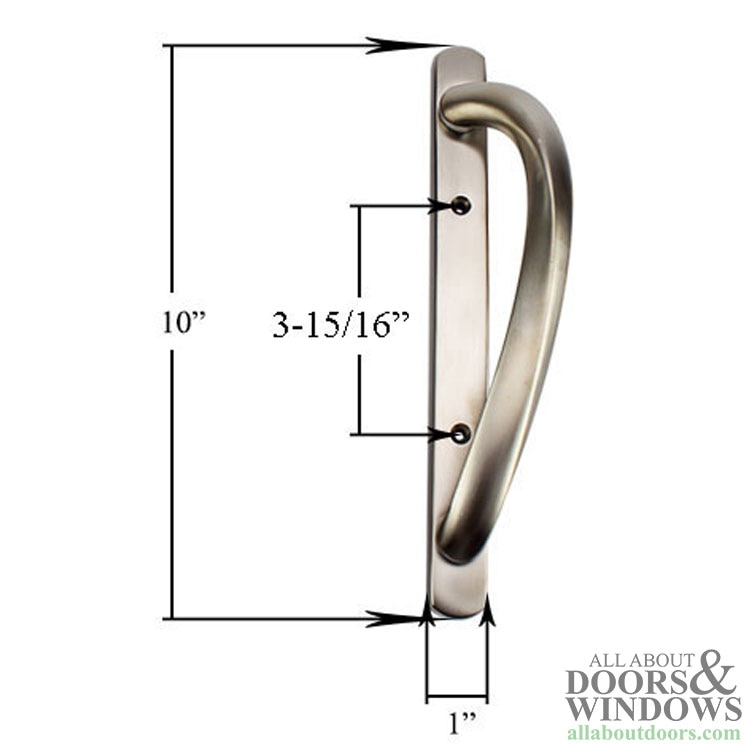

Plate Style: Arch Top
Plate Width: 1 inch (25.4mm)
Plate Length: 10 inch ( 254mm)
Screw Hole Spacing: 3-15/16 inch (100mm)
Key: Schlage SC1, 2 keys
2X #8-32 PHILLIPS OVAL HEAD MACHINE SCREWS (1.75, 2.125, AND 2.50
LENGTH SCREWS ARE PROVIDED IN THE KIT TO FIT STILE THICKNESS RANGING FROM 1.25 TO 2.25).
Function: Keyed, Center Position
This style of handle has 4 functions:
1. Non-Keyed
2. Keyed, with center position
3. Keyed, with off center position
4. Dummy
Plate Style: Arch Top
Plate Width: 1 inch (25.4mm)
Plate Length: 10 inch ( 254mm)
Screw Hole Spacing: 3-15/16 inch (100mm)
Key: Schlage SC1, 2 keys
2X #8-32 PHILLIPS OVAL HEAD MACHINE SCREWS (1.75, 2.125, AND 2.50
LENGTH SCREWS ARE PROVIDED IN THE KIT TO FIT STILE THICKNESS RANGING FROM 1.25 TO 2.25).
This product is similar to or the same as the following part numbers in these brands:
Truth Hardware: 40.90
Truth Hardware: 40.90
