Truth Dummy Curved Top Sliding Door Handleset Trim 3-15/16" Screw Hole Spacing

Part Number: 147144
Price:$54.55 to $170.56

Truth Dummy curved top sliding Door Handleset Trim - Faux Oil Rubbed Bronze


Signature Series Curved Top Sliding Door Hardware

Replaces many styles and brands including Anderson and doors with standard 3-15/16" screw hole handle sets.

Some applications may need to drill additional hole in door to accommodate bottom screw

Used on single and dual locking 2-point lock mechanisms.


This style of handle has 3 functions:

1. Non-Keyed

2. Keyed, Schlage SC1, Optional Kwikset / Weiser keyway

3. Dummy



Function: Dummy, Fixed Handles

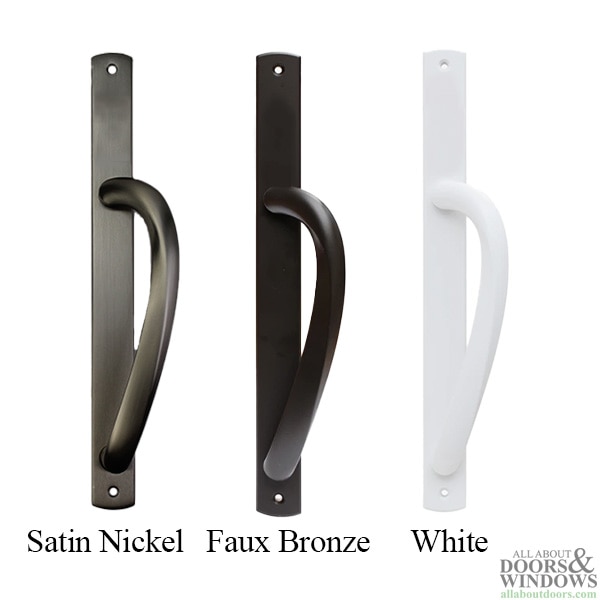

Color / Finish: Faux Oil Rubbed Bronze or White

Installation Screw Holes: 11-15/16 inch  (302.8mm)

Installation Screws: 8-32

Escutcheon Plate Width: 1-1/4 inch (31.8mm)

Escutcheon Plate Length: 13 inch (330.2mm)

Handle mounting screw holes: 7-3/8 inch

Handle Mounting Screws: 10-32 x 3/8

Thumb turn to top Installation hole: 2 inch

Material: Aluminum -  for Painted Finishes




Door thickness range: Comes with assorted screws

1-3/16 - 1-9/16 thick uses 1-3/4 inch screw

1-9/16 - 1-15/16 thick uses 2-1/8 inch screw

1-15/16 - 2-5/16 thick uses 2-1/2 inch screw

This product is similar to or the same as the following part numbers in these brands:
Truth: 40.94.10.102.1, 40.94.FB.102.1, 40.94.33.102.1, 40.94.32.102.1
