Truth Dual Arm Entrygard Casement Operator Right Hand Short Link
Truth Dual Arm Entrygard Casement Operator Right Hand Short Link

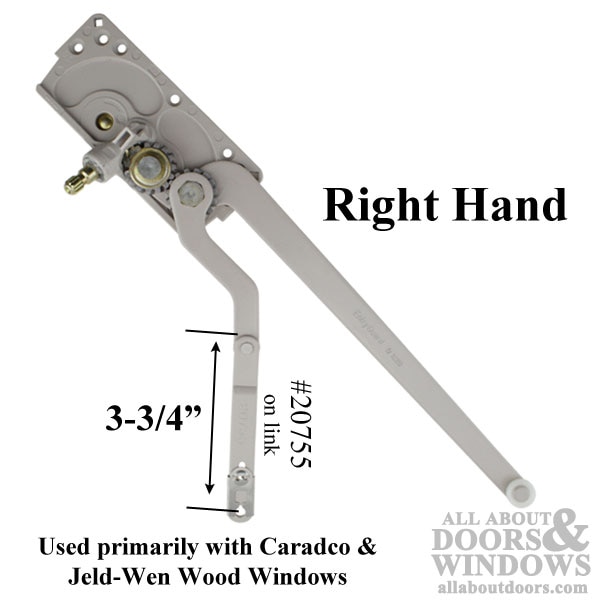

Truth 15.16 Entrygard Dual Arm Operator, Surface mount hardware used primarily with Caradco/Jeld-Wen wood windows.

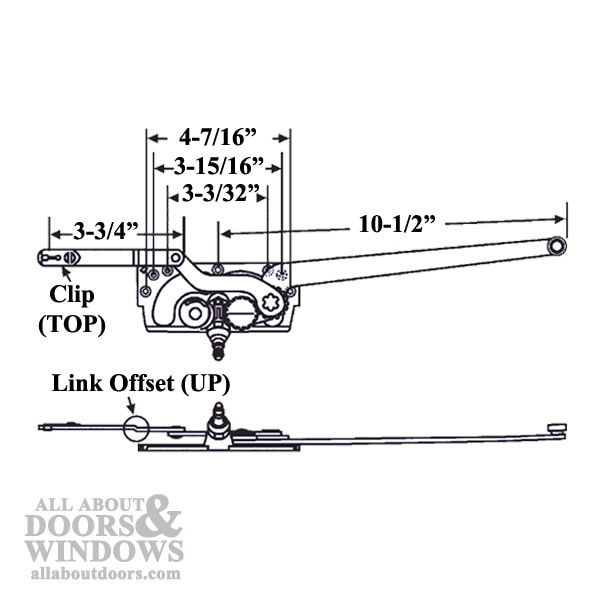

Long Arm Length: 10-1/2 inches (measured from the center of Truth window operator to center of button).

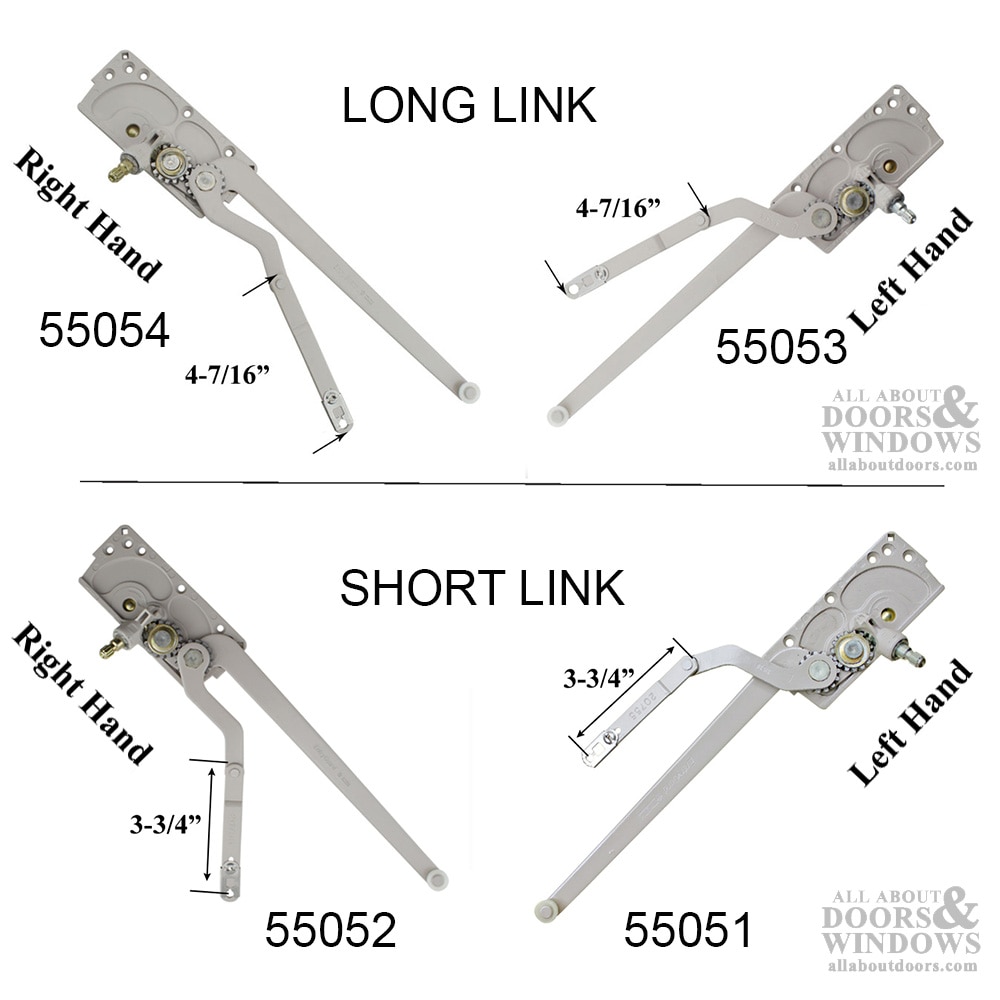

Short Arm Length: 3-3/4 Inch (offset LINK - UP)
Arm Type: Dual Arm - Straight Arm, No Offset, Split arm with Link
Roller Type: Nylon
Roller Size: 9/16 Diameter, 3/16 thick

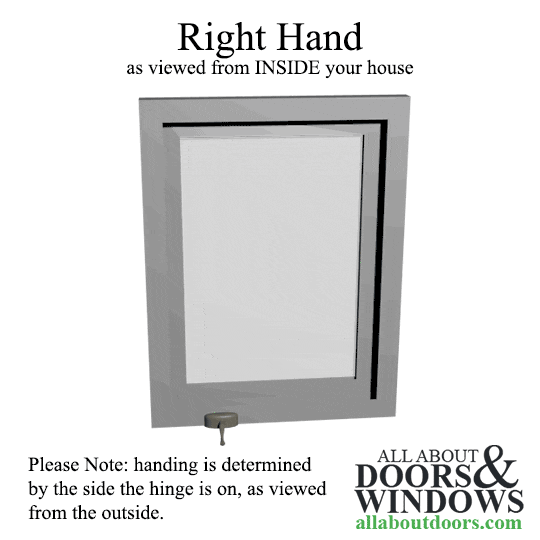

Handing: Right Handed, as shown in picture (Handing is determined by the side the hinge is on, as viewed from Outside.)
Standard Color/Finish: Mill / Stone Color - New E-Gard
Truth 15.16 Markings: 20755 on short Link
Handle Spline: 11/32 Diameter (Gold on Right Hand Cranks - Silver on Left Hand Cranks)
Sold Each, No Screws
See additional information tab for related parts and hardware.
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: TH 24033
Strybuc Industries: 36-185
Truth Hardware: 15.16.00.202
Related Items:
Truth Cover Options (Not Included)
- Standard Design: 55300 & 55301
- Folding Handle and Cover: 55305
Truth Handle Options (Not Included)
- Standard Design: 55311
- Folding Design: 55312
- T-Type Design: 55313
- Round Design: 55316
- Contour Design: 55317
Track Options (Not Included)
- 3-Hole Track: 55159
- 4-Hole Track:55160
