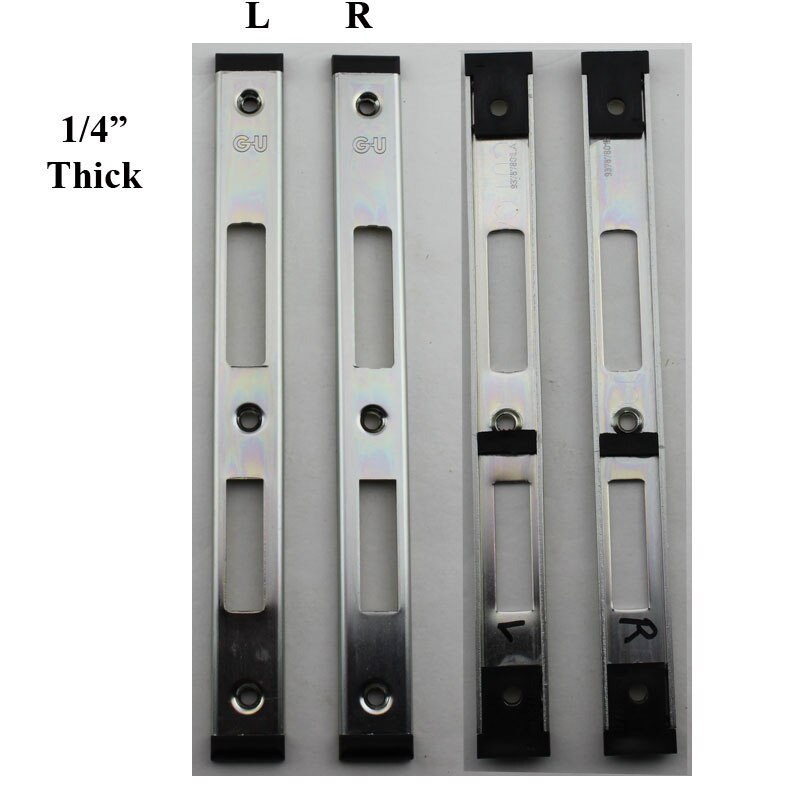

Strike Plate, Raised Latch & Deadbolt, 24mm x 227mm x 6mm - Right

Part Number: 6-28959-01-R-FG
Price: $26.15

Discontinued and no longer available

Latch & Deadbolt Strike, 1/4 inch Raised with Plastic ends

Strike Plate, Raised Latch & Deadbolt,  24mm x 227mm x 6mm - Right

Used by G-U Ferco on Vinyl or Fiberglass doors

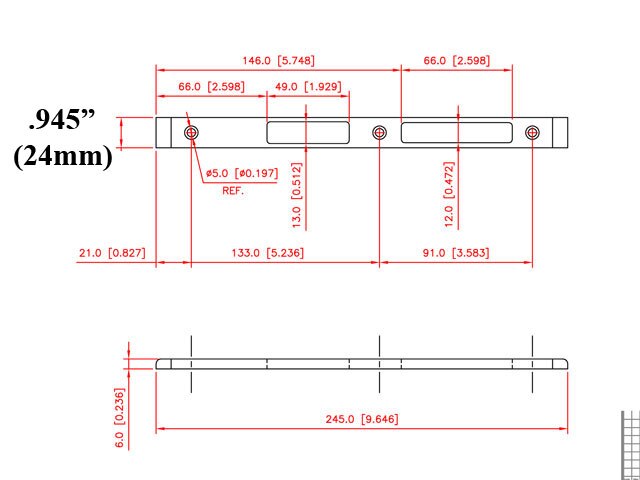

Width:  15/16"  (24mm )

Length: 8-1516"  (227mm)

Thickness: 1/4" ( 6.3mm)

Screw Holes: 8 inch top to bottom


Markings;

Metal Strike Plate:  9378780-1R

Plastic End Caps: 9-37735-08 E

Plastic Middle Support: 9-37827-08
