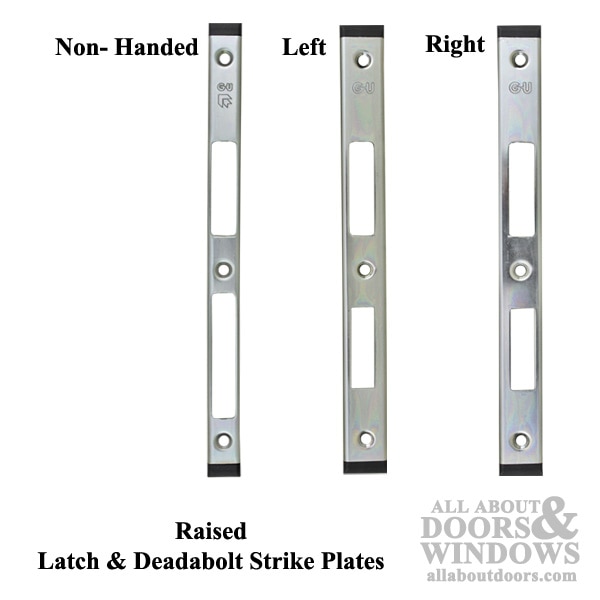

Non-Handed Strike Plate, Latch & Deadbolt, 1/4 inch Raised

This G-U strike has been discontinued and replaced with New style # 6-38733-01-0-1

The new Strike Length: 9-1/8  (232mm) with ends or  8-1/2 (216.5mm) metal only

Compared to old strike 9-5/8 inch overall length

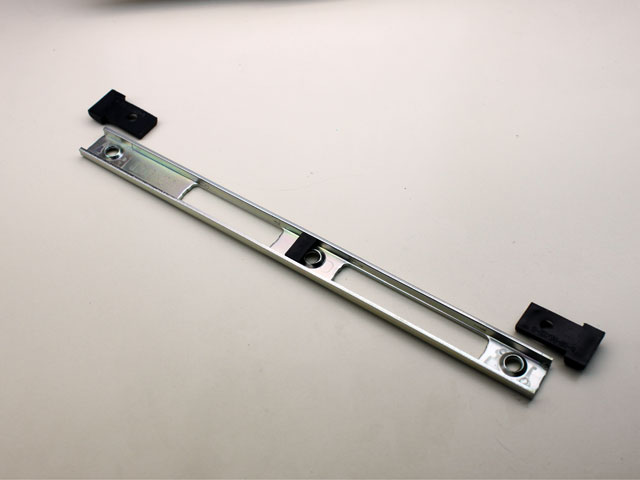

Latch & Deadbolt Strike, 1/4 inch Raised with Plastic ends

Used by G-U Ferco on Vinyl or Fiberglass doors

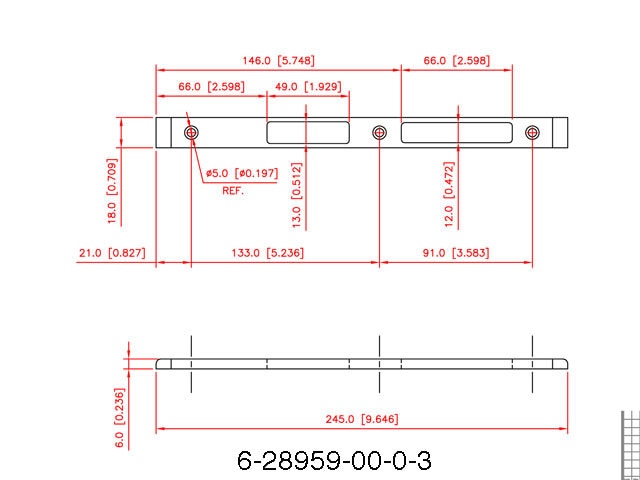

6-28959-00-0-1,  Old Style Specifications:

Width: 11/16 inch (18mm)

Length: 9-5/8  (245mm) with ends or  8-15/16 (227mm) metal only

Thickness: 1/4 inch (6mm)

Screw Holes: 8 inch top to bottom

Markings on G-U Strike:

Metal Strike Plate: DC 01 ; 937878000

Plastic End Caps: 9-37735-01-0

Plastic Middle Support: 9-37827-01
