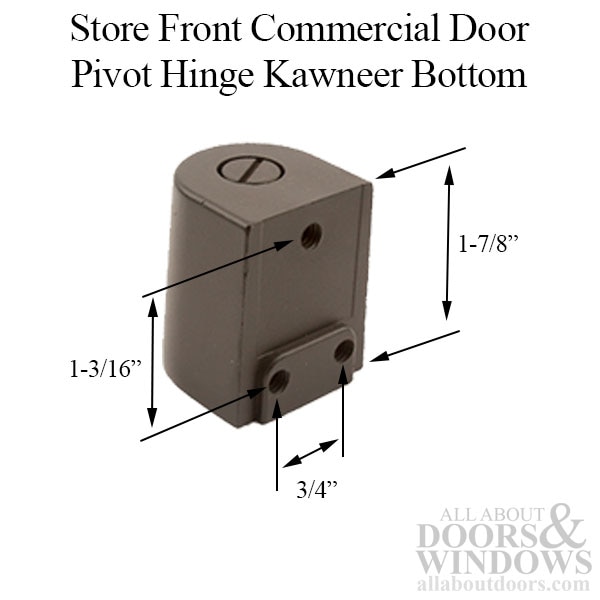

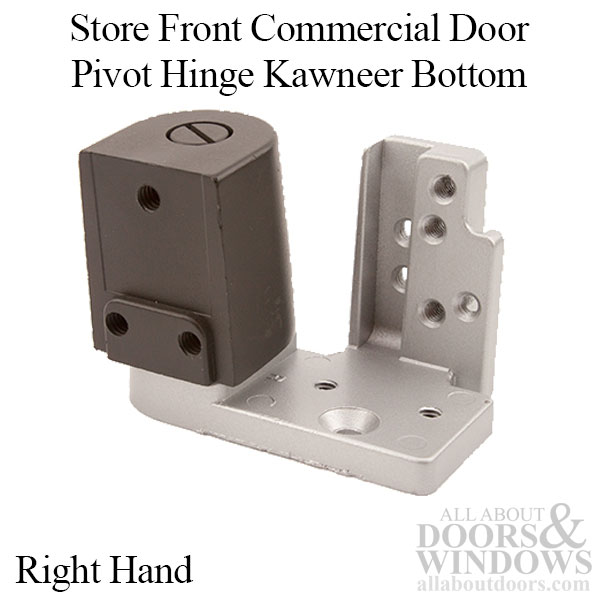

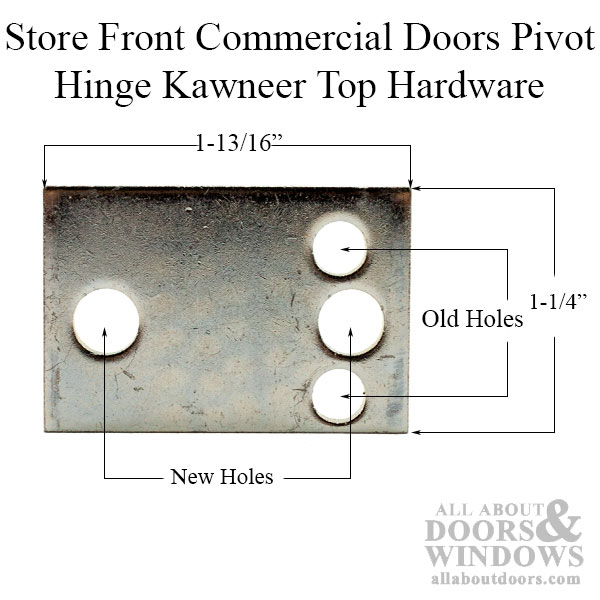

Store Front Commercial Door Pivot Hinge, Kawneer Top and Bottom, Right Hand - Choose Color

Part Number: 380020
Price: $42.95
Right Hand Replacement Top and Bottom Pivot Set for Kawneer commercial store front doors.
TH1118 offset pivots are used for both flush face frame installation and 1/8 inch recessed door applications.
Pivots replace most major door manufactures.
Suitable for aluminum doors weighing up to 125 pounds.
These pivots are engineered and designed for durability, style and are easy to install.
When determining handing, doors are viewed from outside.

Handing:
Right Hand

Color Options:
Aluminum
Duranodic Bronze

Specifications:
3/4 inch offset pivots for aluminum doors and frames
For flush door / frame and 1/8 inch recessed door applications
Weather resistant
Aluminum case construction
Vertical adjustment 1/8 inch
Full race ball bearing and design, provides smooth operation on bottom pivot door portion
No sag, entire weight of doors rests on floor mounted pivot portion
Completely temper proof, yet easily removable, replaceable in unlocked position

Related Parts:
380019 - Left Hand Pivot Set
