Special 85 mm PZ Replacement Handle-set Kit - Choose Options
PLEASE NOTE:
THESE HANDLE-SETS ARE SPECIAL ORDER AND CAN NOT BE RETURNED OR EXCHANGED.
Pella Replacement Kit with Special Handle Spacing (PZ) of 85mm (3-11/32 inches)
This lockset replaces part #9099998, a discontinued Pella single-point mortise lock with an 85 PZ and 55mm backset.
Kit Includes:
(1) Single Point Mortise Lock
(1) Euro Profile Key Cylinder
Strike Plate
Handleset Trim - (2) Handles with or without cylinders and / or thumbturns.
(2) Escutcheon Plates and Screws
Important Mortise Lock Measurements:
The Mortise Lock is a Single-point Entrance Mechanism with a 3-11/32 inches (85mm) handle spacing or PZ.
Backset: 2-3/8 inches (60mm) - Pella was 2-3/16 inches (55mm)
Faceplate: 7/8 x 9-3/8 inch Square Corners - Pella had Radius corners
This Mortise Lock will fit on older Pella Doors with Single Point Locks
Handing: Non-Handed, works for both right and left hand.
Function:
Active: Keyed European Profile Cylinder handle-set with inside Thumb-turn
Color / Finish:
Antique Brass
Polished Brass
Satin Nickel
Antique Nickel
Polished Chrome
Brushed Chrome
Oil Rubbed Bronze
NOTE: plates less than 10 inches in height may not cover marks from old trim.
Congressional & Coronet plates are 1-15/16 x 10-1/8 inch
Villa plate is 1-7/8 x 10-15/16 inch
All other plates are less than 10 inches in height

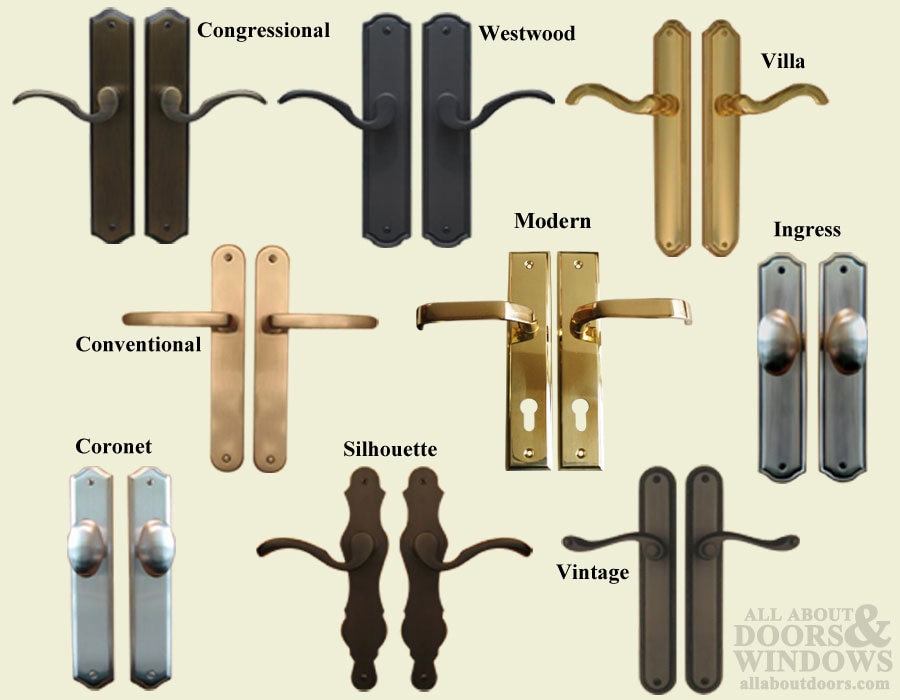

Lever and Backplate Style - Width / Length / Screw Hole Spacing
Congressional - 1-15/16" / 10-1/8" / 8-3/4"
Westwood - 1-7/8" / 8-7/8" / 7-13/16"
Villa - 1-7/8" / 10-15/16" / 9-1/8"
Vintage - 1-1/2" / 9-1/16" / 7-15/16"
Conventional - 1-5/16" / 9-1/16" / 8-3/8"
Modern - 1-3/4" / 9-1/16" / 8-7/16"
Silhouette - 1-31/32" (2") / 9-3/16" / 8"
Coronet - 1-15/16" / 10-1/8" / 8-11/16"
Ingress - 1-7/8" / 8-7/8" / 7-13/16"
NOTE: Replacement is not an exact replacement; some modification to door jamb may be required.
See article: Replacing Pella Old-Style Single-Point Mortise Lock
