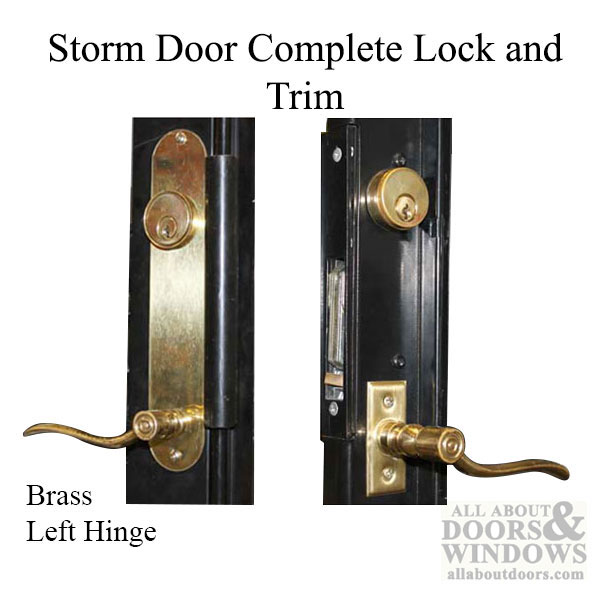

Security Storm Door Complete Kit Lock & Trim; LEFT HINGE - Brass
This item has been discontinued and is no longer available.
Adams Rite Steel Security Ornamental Storm Door Mortise Lock Kit - Brass

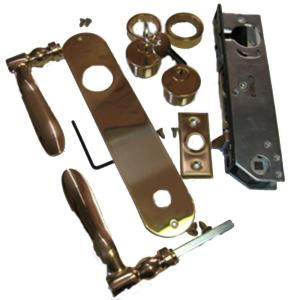

Includes handles, escutcheon plates and keyed cylinders, mortise lock and screws.
Does NOT include - latch cover plate
Has Left or Right Handed, spring latch on face of lock.
Lock Body Dimensions:
Face Plate: 1 x 6-7/8
Cylinder Backset: 1 inch from front of face plate to center of Cylinder
Handle Backset: 7/8 inch to center of handle
Lock Markings: Inspect 010; Grade 1: ANSI 156.5
Escutcheon Plate: 1-3/4 x 9 inches **factory included plate normally has small imperfections and is sold as is***
Hole spacing from center of key Cylinder to center of handle: 5-1/4 inches
Handle Hole Diameter: 1/2 inch
Cylinder Hole Diameter: 1-1/8 inch
NOTE: Hole for cylinder is off center; Handle hole is Centered
Inside Handle Plate: 1-1/16 x 2-1/2 inches
Cylinder Length: 13/16 inch; 4 pin cylinder,
Adams Rite Tail piece Keyway: Kwikset, Rekeyable (need to cut KW1, 5 pin key blank shorter )

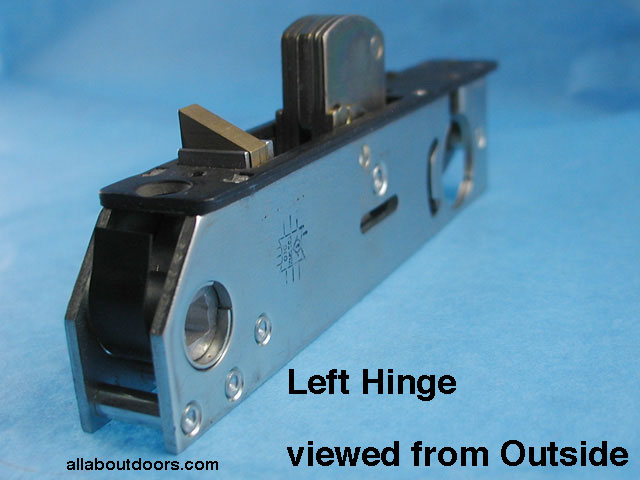

Handed- YES; Left or Right as viewed from Outside hinge side
Primarily Picture is a Left Hinge Door
Related Hardware:
40085 - Complete Hardware Kit - Brass - Left
40086 - Complete Hardware Kit - Brass - Right
40087 - Trim Only; Handles and Plate - Brass
40088 - Mortise Lock Body, Right Hand
40089 - Mortise Lock Body, Left Hand
NOTE:
The only difference between the Left and Right hand hardware is the mortise lock latch.
If you order the wrong handing, you may exchange just the lock case for the opposite one.
