Replacement Kit for Winkhaus 5-Point Roller in Weathershield Doors
3-Point Multipoint Lock with Rollers
Replaces WINKHAUS 4-point lock (part 499117699).
Used in Weathershield hinged patio doors made prior to March 2002
Used in ProShield hinged patio doors made prior to August 2004
Used in Visions hinged patio doors made prior to February 2004

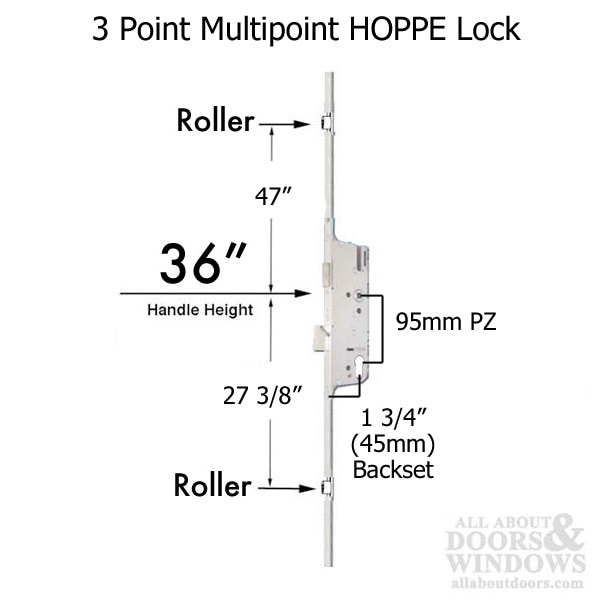

Replacement Lock Dimensions:
Bottom roller located 27-3/8 inches from handle
Top roller located 47 inches from handle
Backset: 45mm
PZ: 92mm
Faceplate: 16mm wide
Overall Length: Up to 94" This lock is trimmable and can be cut down if door is shorter

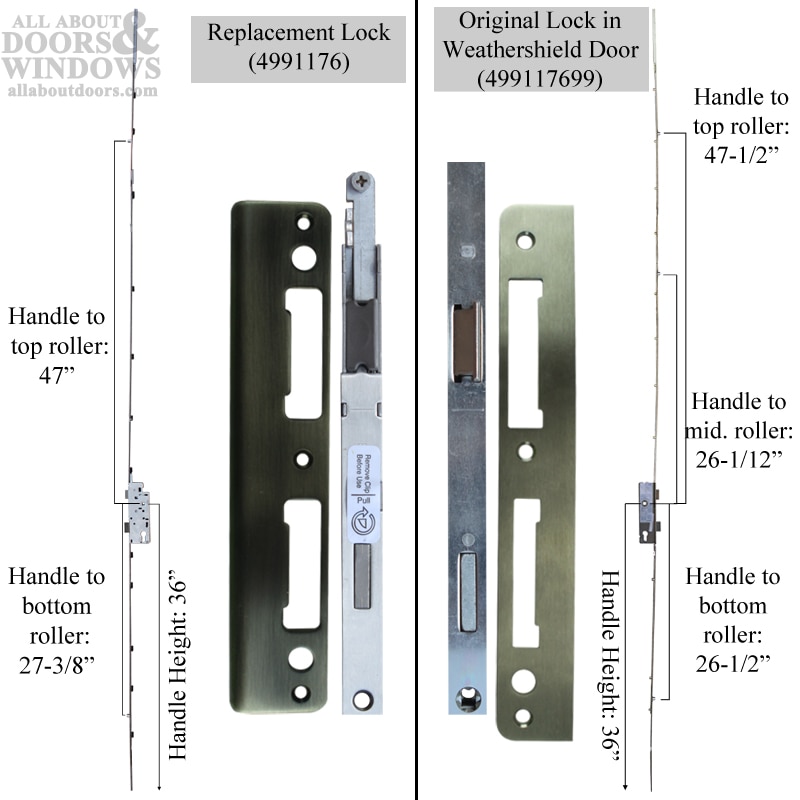

*Note: There is no middle roller! This lock has 1 less roller than the original lock it replaces!
This is a 3-part kit consisting of:
Bottom gear and lockbox
Top extension
Screws
Existing stock is limited; these are special order and may take longer to ship.
Replacement Guide/Instructions: Replacing Lock in Weathershield Door
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
Replaces WINKHAUS 4-point lock (part 499117699).
Used in Weathershield hinged patio doors made prior to March 2002
Used in ProShield hinged patio doors made prior to August 2004
Used in Visions hinged patio doors made prior to February 2004
Replacement Lock Dimensions:
Bottom roller located 27-3/8 inches from handle
Top roller located 47 inches from handle
Backset: 45mm
PZ: 92mm
Faceplate: 16mm wide
Overall Length: Up to 94" This lock is trimmable and can be cut down if door is shorter
*Note: There is no middle roller! This lock has 1 less roller than the original lock it replaces!
This is a 3-part kit consisting of:
Bottom gear and lockbox
Top extension
Screws
Existing stock is limited; these are special order and may take longer to ship.
Replacement Guide/Instructions: Replacing Lock in Weathershield Door
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
