Pella Select 6000 Series Mortise Lock Storm Door Hardware Trim - Brushed Brass
Discontinued - Replace with 305024
Pella contemporary storm door mortise lock with scroll lever for Pella Select storm doors.
Complete storm door hardware kit, includes plates, levers, mortise lock and keyed cylinder

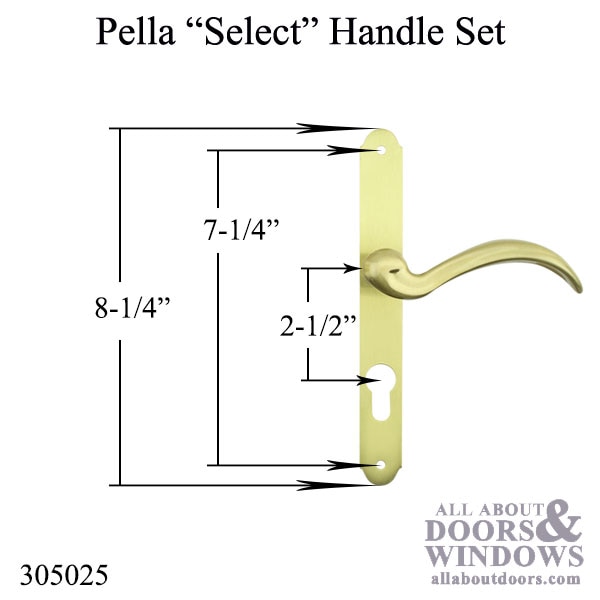

Handleset Measurements:
Backset: 7/8"
PZ: 2-1/2" (center of handle to center of cylinder)
Screw Holes: 7-1/4"
Faceplate Length: 8-1/4"
Faceplate Width: 1-5/16"
Cylinder Type: Euro, offset tail piece
Keyway: Kwikset KW1

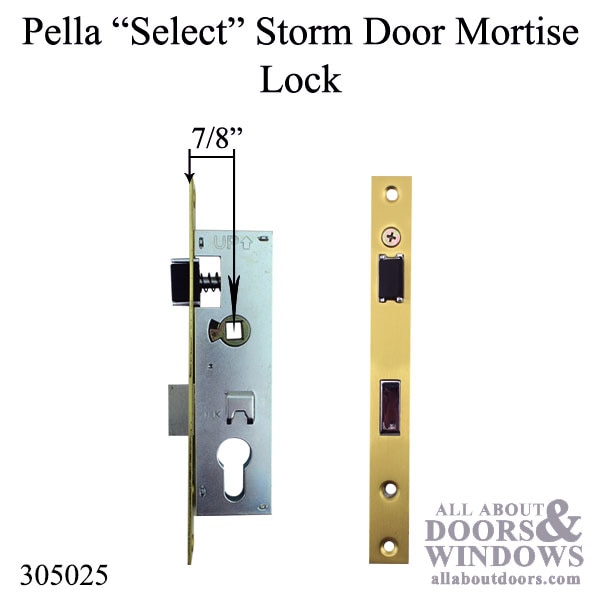

Mortise Lock Measurements:
Lock Type: Mortise
Length: 7-3/4"
Width: 13/16"
Screw Holes: 7-1/8"
Color Options:
Brushed Brass
Pella contemporary storm door mortise lock with scroll lever for Pella Select storm doors.
Complete storm door hardware kit, includes plates, levers, mortise lock and keyed cylinder
Handleset Measurements:
Backset: 7/8"
PZ: 2-1/2" (center of handle to center of cylinder)
Screw Holes: 7-1/4"
Faceplate Length: 8-1/4"
Faceplate Width: 1-5/16"
Cylinder Type: Euro, offset tail piece
Keyway: Kwikset KW1
Mortise Lock Measurements:
Lock Type: Mortise
Length: 7-3/4"
Width: 13/16"
Screw Holes: 7-1/8"
Color Options:
Brushed Brass
Related Pella Replacement Options:
305013 - Pella 2 bolt mortise lock
305014 - Pella Trim for 2 bolt lock
305024 - Pella Trim & 1 Bolt mortise lock, Contemporary / Modern Style
305025 - Pella Trim & 1 Bolt mortise lock, Classic Style curved Lever
