Auxiliary IPD Locking Module Peachtree Citadel Door - XO

Peachtree Old style Insulated Patio Door (IPD) Citadel French Swinging door Parts:

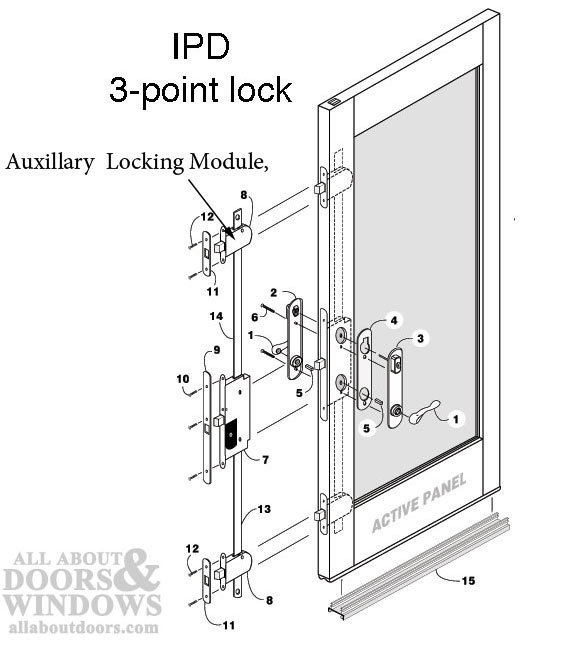

This is used on the door with 3 point lock spring locks, that extend and become bolts.
The 3 latches are spring loaded and become rigid when door is locked.

Auxiliary Locking Module are handed - XO or XO

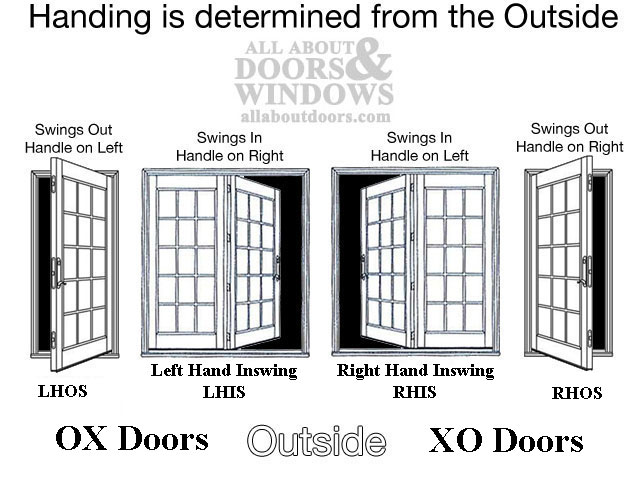

Peachtree views doors from outside to determine handing.
X = Active Door
O = Stationary or Passive Door
XO = Active / Stationary or Passive
OX = Stationary or Passive / Active

Handing cannot be changed - See additional images
