P2000 Active Gearbox only 35/92 Euro Cylinder
Premier P2000 gear box for multipoint-locks with 1-3/8" (35mm) backset
Used on active doors with 5/8" (16mm) or 25/32" (20mm) faceplates
NO FACEPLATE, this is the gearbox only, used to repair or replace broken gears
Backset: 1-3/8" (35mm)
Handle to Cylinder spacing: 3-5/8" (92mm)

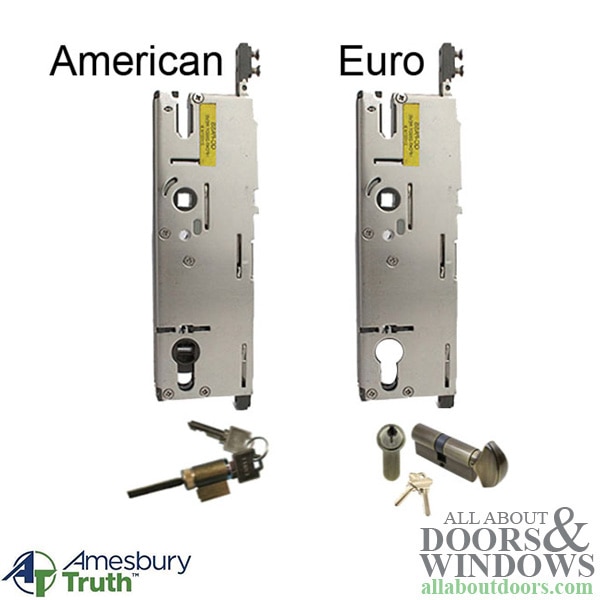

Cylinder Type: Euro / Profile Version
Lockcase bodies are available in 3 backsets
1-3/8 inch (35mm)
1-3/4 inch (45mm)
2-3/8 inch (60mm)
Installation Note:

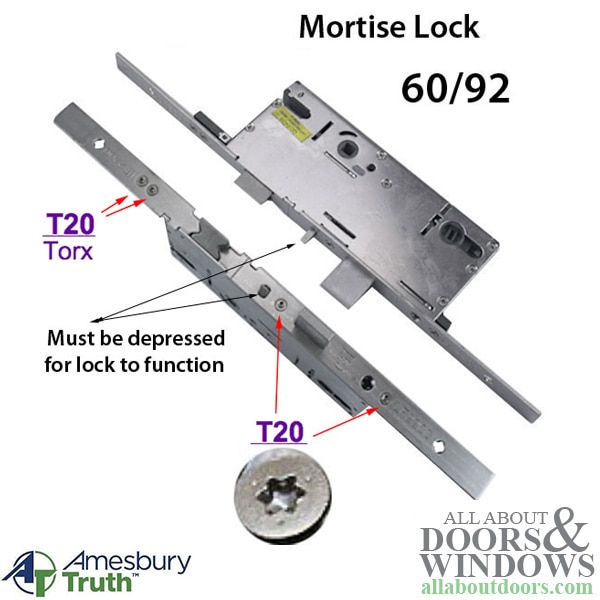

The screws that attach the gearbox to extensions have a T-20, star drive head
The T-20 Torx star bit screws require 12-13 pounds of torque
Used on active doors with 5/8" (16mm) or 25/32" (20mm) faceplates
NO FACEPLATE, this is the gearbox only, used to repair or replace broken gears
Backset: 1-3/8" (35mm)
Handle to Cylinder spacing: 3-5/8" (92mm)
Cylinder Type: Euro / Profile Version
Lockcase bodies are available in 3 backsets
1-3/8 inch (35mm)
1-3/4 inch (45mm)
2-3/8 inch (60mm)
Installation Note:
The screws that attach the gearbox to extensions have a T-20, star drive head
The T-20 Torx star bit screws require 12-13 pounds of torque
