Operator, Dual Hook, Lever, 23-1/4” - longer “F” plate

Part Number: 555006
Price: $86.24

Wood awning window - Dual pull lever operator 23-1/4 inch Arm Width.

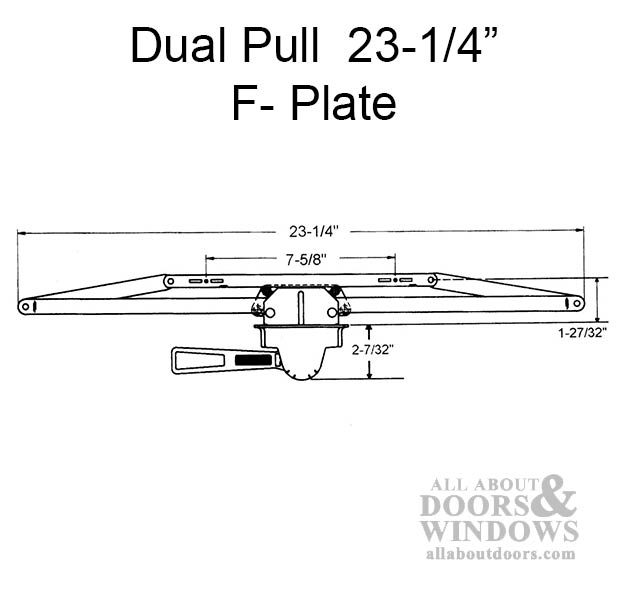

Housing from Interior edge to wood stop is More than 2 inches ( 2-7/32 inches)

Used by Marvin, Weather Shield and others


Replaces "Lever type" awning window operators by Truth Hardware.

Operator is considered "dual pull" because of its two attachment points on the arm.

Awning operators are not handed.



Tip to tip measurement of the arms in the widest position (as shown in the photo) is 23-1/4 inch.

Base plate measures approximately 4 inch x 4 inch.

Matching Truth screws (uses 4 per operator) are not included

This product has the "F" escutcheon  plate(2-1/4 inch deep).


Handing:Non-Handed

Material:Zinc

Length:23-1/4

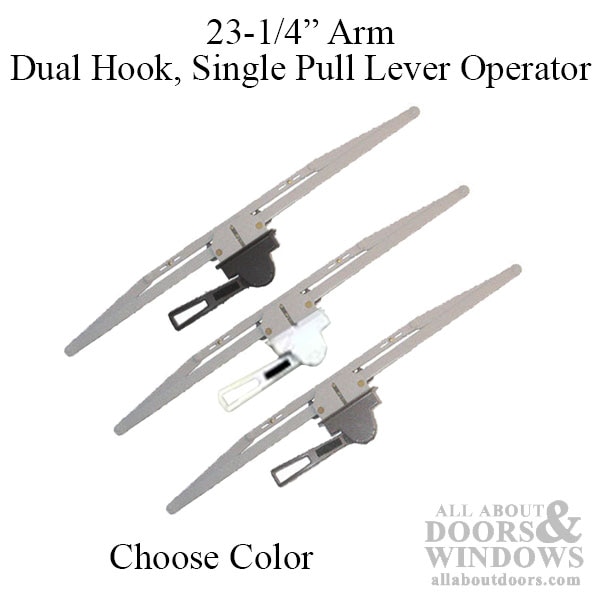

Available in 2 colors : Bronze or White.


This part is the same as or similar to the following part numbers from these brands:
Strybuc Industries: 36-168-1, 36-168-2, 36-168-3
Marvin: 10810090 (Bronze), 10810092 (White)
Truth: 10.11.03.21110.11.32.001
