Mortise Lock - Sliding Patio Door, Horizontal Keyway - Steel

Part Number: 15117
Price: See Description

This part has been discontinued and is no longer available

Discontinued - Replace with 15143 (will require some modification)

Mortise installation

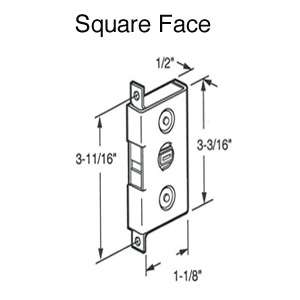

Square end face
Mounting flanges have 6-32 tapped thread
Used by arcadia and other door companies.
Hole Center: 3-11/16-inch
Keyway: Horizontal
Sold Each

Note: Lock 15118 is the same as this one with radius faceplate. Also discontinued.
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2021
SlideCo: 15311
